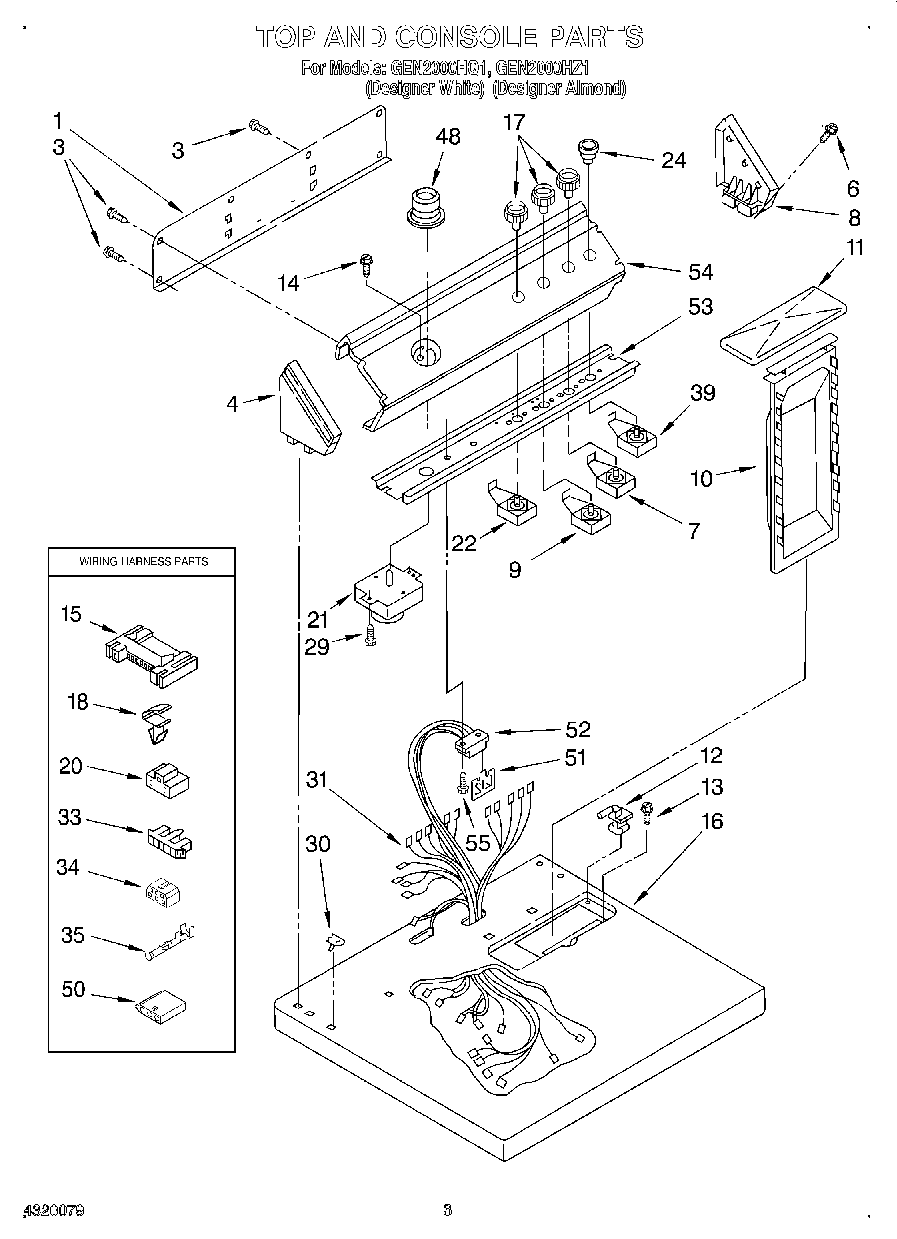

GEN2000HQ1 02 – TOP AND CONSOLE

Products

Position	Product
NI	Dryer
1	Panel, Rear Console
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
6	WP388326 Whirlpool Screw
7	WP3398093 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
9	3405154 Whirlpool Primary Switch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top (Almond)
16	Top (White)
17	3957797 Whirlpool Knob
17	WP3957796 Whirlpool Knob
18	WP3394427 Whirlpool Clip
20	3401144 Whirlpool Connector
21	WP3406725 Whirlpool Timer
22	Switch, Temperature
24	WP3957800 Whirlpool Knob
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3398094 Whirlpool Push To Start Switch
48	Timer Knob Assembly (Almond)
48	WP3957746 Whirlpool Knob Assembly
50	3936144 Whirlpool Connector
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	Panel, Control (Almond)
54	Panel, Control (White)
55	350930 Whirlpool White Spray Paint
55	72017 Whirlpool Appliance Touch-Up Paint White
55	Almond (Uncut)
55	799344 Whirlpool Refrigerator Paint
55	350938 Whirlpool Spray Gun
55	WP72107 Whirlpool Touchup
55	SCREW
55	350956 Whirlpool Spray Assembly
