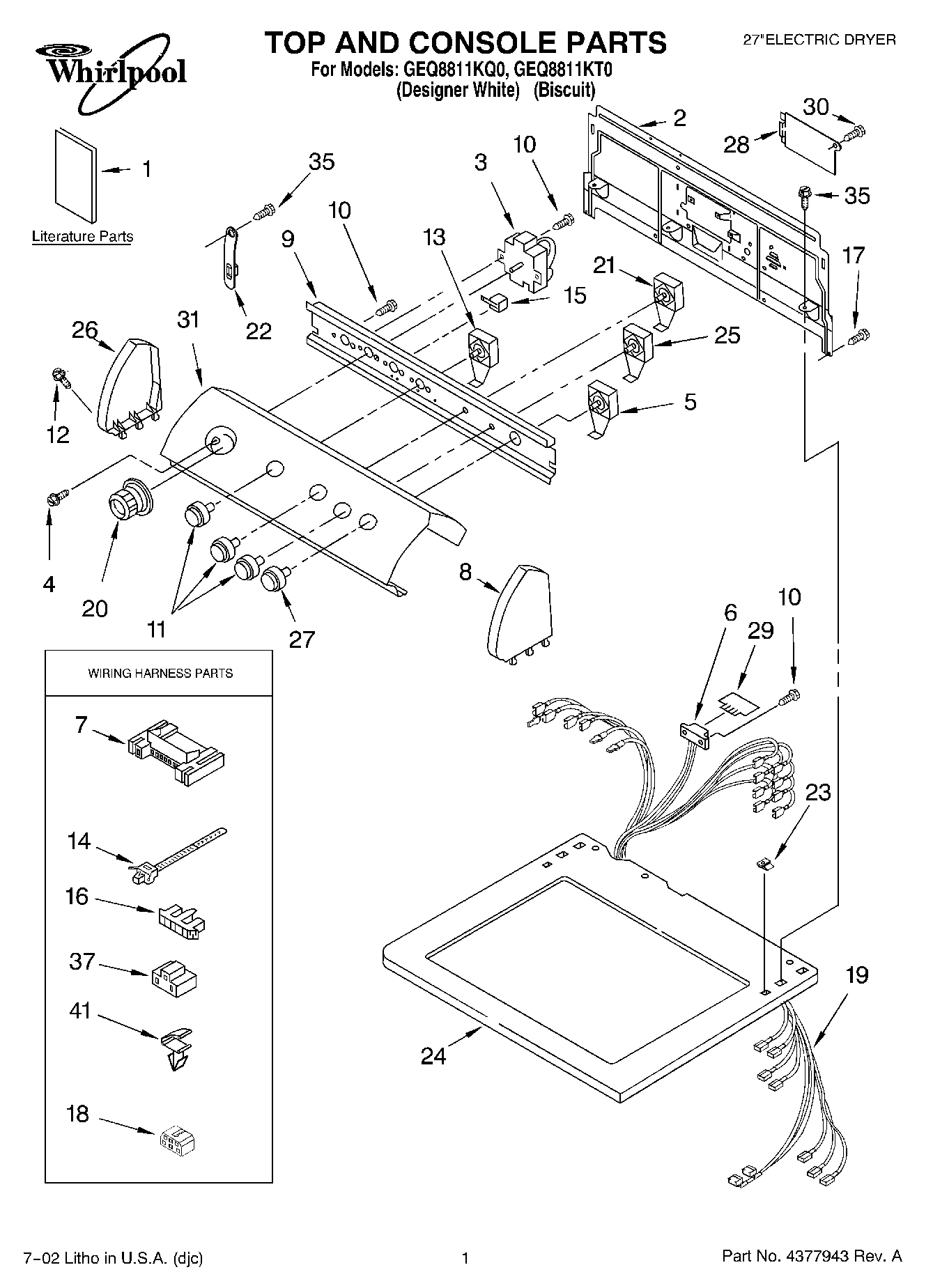

GEQ8811KQ0 01 – TOP AND CONSOLE

GEQ8811KQ0 01 – TOP AND CONSOLE

Written by

in

GEQ8811KQ0 01 – TOP AND CONSOLE

Products

PositionProduct
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Guide, Use & Care)
1Dryer
1Literature Parts (Instructions Installation)
2285909 Whirlpool Rear Panel
3WP3406725 Whirlpool Timer
43400859 Whirlpool Screw
5WP3398094 Whirlpool Push To Start Switch
63391885 Whirlpool Connector
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 8271362
9Bracket, Control
10WPW10139210 Whirlpool Screw
11WP3957799 Whirlpool Knob
113957797 Whirlpool Knob
12WP388326 Whirlpool Screw
138528330 Whirlpool Temperature Control Switch
14WP3391018 Whirlpool Wire Tie
15WP694419 Whirlpool Buzzer Adjuster
16Connector, Timer
17WP693995 Whirlpool Screw
18Block, Disconnect
19Harness, Electric
20WP3957754 Whirlpool Knob Assembly
20WP3957755 Whirlpool Knob
213405154 Whirlpool Primary Switch
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top
24Top (Biscuit)
253405152 Whirlpool Switch Assembly
26Cap, End (L.H.) (BIscuit)
27WPL 8271349
273957804 Whirlpool Knob
28WPW10119283 Whirlpool Terminal Cover
29WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30WP90767 Whirlpool Screw
31Panel, Control (White)
31Panel, Control (Biscuit)
35WP488729 Whirlpool Refrigerator Door Screw
373401144 Whirlpool Connector
41WP3394427 Whirlpool Clip
