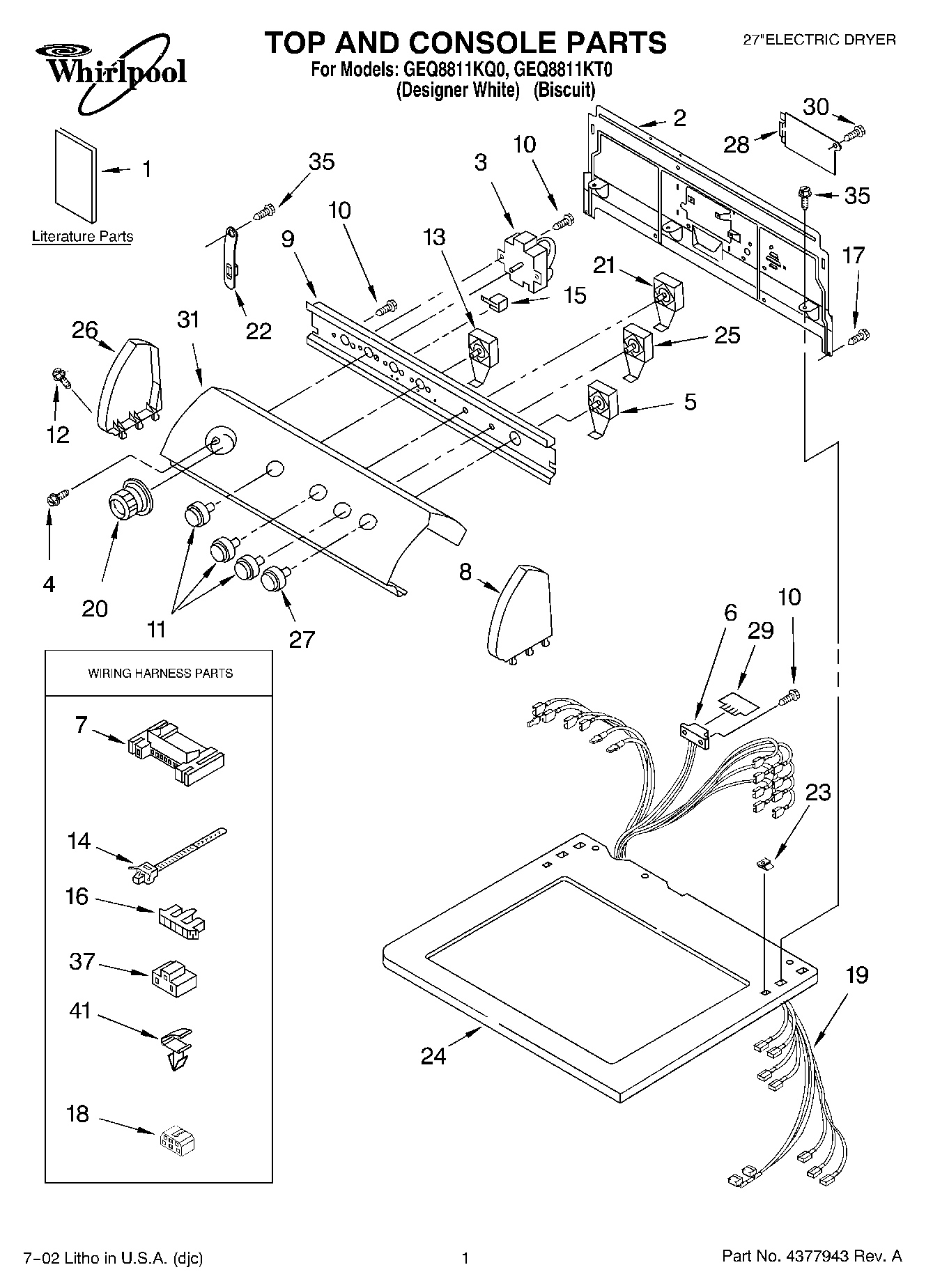

GEQ8811KT0 01 – TOP AND CONSOLE

Products

Position	Product
1	Literature Parts (Label, Wiring Diagram)
1	Literature Parts (Guide, Use & Care)
1	Dryer
1	Literature Parts (Instructions Installation)
2	285909 Whirlpool Rear Panel
3	WP3406725 Whirlpool Timer
4	3400859 Whirlpool Screw
5	WP3398094 Whirlpool Push To Start Switch
6	3391885 Whirlpool Connector
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
11	WP3957799 Whirlpool Knob
11	3957797 Whirlpool Knob
12	WP388326 Whirlpool Screw
13	8528330 Whirlpool Temperature Control Switch
14	WP3391018 Whirlpool Wire Tie
15	WP694419 Whirlpool Buzzer Adjuster
16	Connector, Timer
17	WP693995 Whirlpool Screw
18	Block, Disconnect
19	Harness, Electric
20	WP3957754 Whirlpool Knob Assembly
20	WP3957755 Whirlpool Knob
21	3405154 Whirlpool Primary Switch
22	WP8568314 Whirlpool Strap
23	WP357213 Whirlpool Hinge Stopper
24	Top
24	Top (Biscuit)
25	3405152 Whirlpool Switch Assembly
26	Cap, End (L.H.) (BIscuit)
27	WPL 8271349
27	3957804 Whirlpool Knob
28	WPW10119283 Whirlpool Terminal Cover
29	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30	WP90767 Whirlpool Screw
31	Panel, Control (White)
31	Panel, Control (Biscuit)
35	WP488729 Whirlpool Refrigerator Door Screw
37	3401144 Whirlpool Connector
41	WP3394427 Whirlpool Clip
