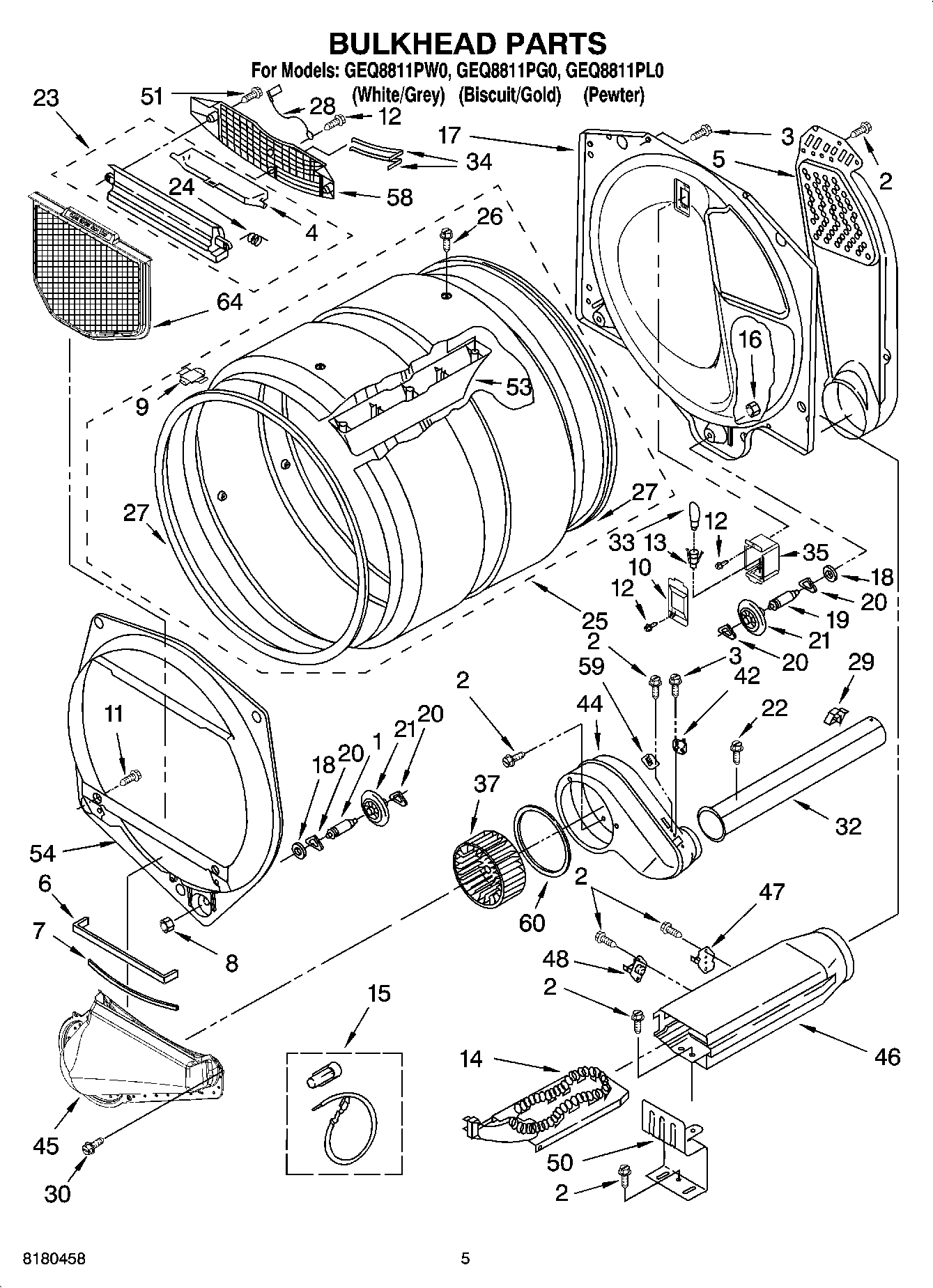

GEQ8811PW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP90767 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	W11222846 Whirlpool Door
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	8066086 Whirlpool Plug
10	W11226088 Whirlpool Lens Assembly
13	W11700522 Whirlpool Socket
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	Nut, 3/8-16 (L.H.)
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10139210 Whirlpool Screw
23	W11129408 Whirlpool Out Housing
24	WP3394986 Whirlpool Spring
25	W10545923 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	Ground-Sensor
29	WP3388229 Whirlpool Dryer Spring Clip
30	W11693756 Whirlpool Screw Assembly
32	279936 Whirlpool Exhaust Pipe
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	3977373 Whirlpool Bracket
37	WP697772 Whirlpool Dryer Blower Wheel
42	WP8318268 Whirlpool Thermostat
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48	WP3390291 Whirlpool High Limit Thermostat
50	8066099 Whirlpool Bracket
51	WP3387230 Whirlpool Screw
53	WPW10113136 Whirlpool Drum Baffle
54	WP697557 Whirlpool Bulkhead Assembly
58	W11086603 Whirlpool Dryer Link Screen Air Grille
59	WP3392519 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
64	8212450A Whirlpool Dryer Rack Assembly
64	799344 Whirlpool Refrigerator Paint
64	72017 Whirlpool Appliance Touch-Up Paint White
64	350938 Whirlpool Spray Gun
64	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
64	WP4396174 Whirlpool Touch-Up Paint
64	350930 Whirlpool White Spray Paint
64	4392899 Whirlpool Biscuit Touch-Up Paint
64	4392901 Whirlpool Biscuit Spray Paint
64	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
64	W11224254 Whirlpool Test Kit
64	W10120998 Whirlpool Dryer Lint Screen Filter
64	4392067 Whirlpool Dryer Repair Kit
64	WPL ARI64810A7
