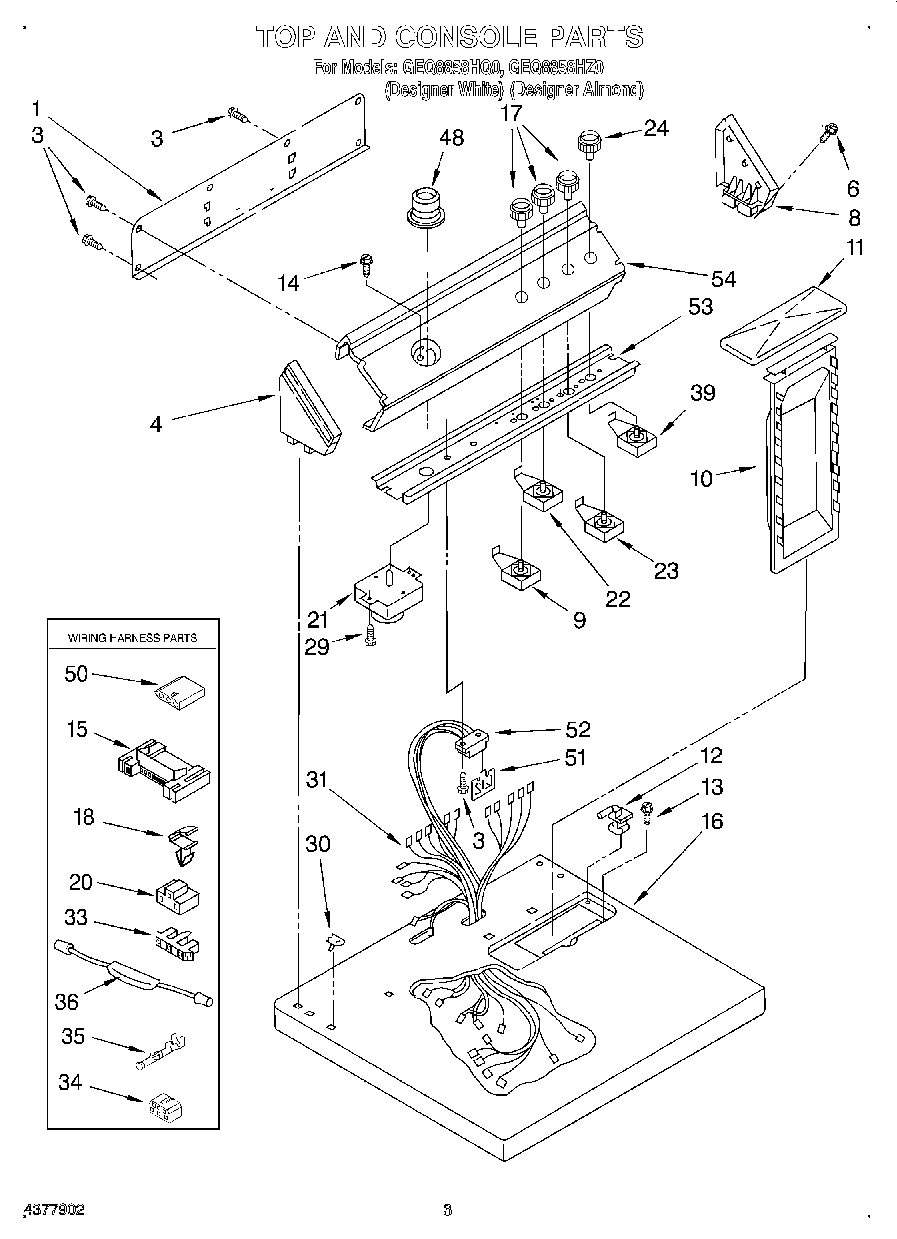

GEQ8858HQ0 02 – SECTION

GEQ8858HQ0 02 – SECTION

Written by

in

GEQ8858HQ0 02 – SECTION

Products

PositionProduct
Dryer
1Panel, Rear Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
6WP388326 Whirlpool Screw
8Cap, End (R.H.)
8Cap, End (R.H.) (Almond)
9Switch, Temperature
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Almond)
16Top (White)
17WP3957796 Whirlpool Knob
173957797 Whirlpool Knob
18WP3394427 Whirlpool Clip
203401144 Whirlpool Connector
21WP3406725 Whirlpool Timer
22WP3398093 Whirlpool Buzzer Adjuster
233405154 Whirlpool Primary Switch
24WP3957800 Whirlpool Knob
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
36Resistor Assembly
39WP3398094 Whirlpool Push To Start Switch
48Timer Knob Assembly (Almond)
48WP3957746 Whirlpool Knob Assembly
503936144 Whirlpool Connector
51Control, Electronic
523391885 Whirlpool Connector
53Bracket, Control
54Panel, Control (White)
54350938 Whirlpool Spray Gun
54350956 Whirlpool Spray Assembly
54799344 Whirlpool Refrigerator Paint
54WP72107 Whirlpool Touchup
5472017 Whirlpool Appliance Touch-Up Paint White
54Almond (Uncut)
54350930 Whirlpool White Spray Paint
54Panel, Control (Almond)
