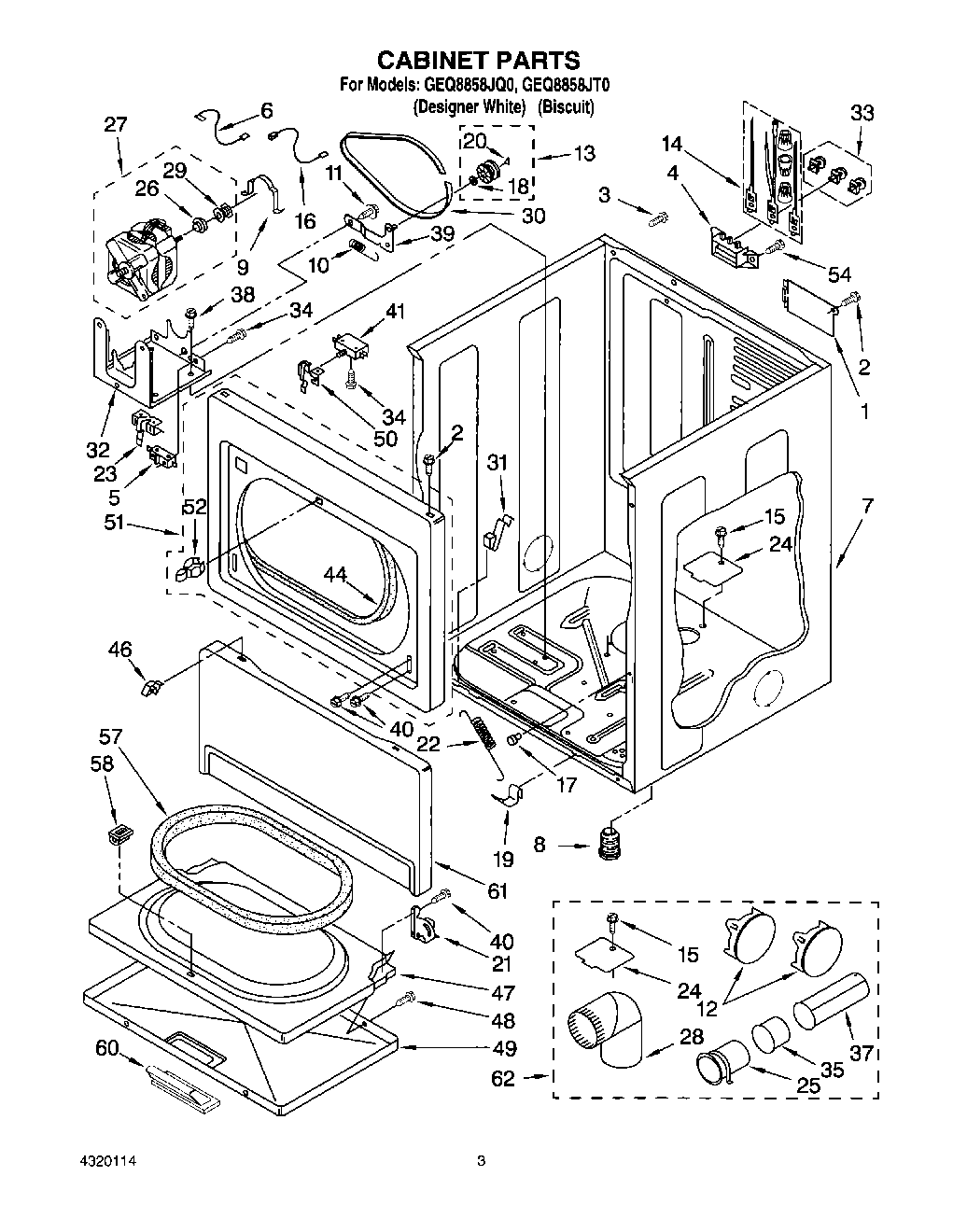

GEQ8858JT0 02 – CABINET PARTS

Products

Position	Product
1	Cover, Terminal Block
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	279782 Whirlpool Lid Switch
6	3398948 Whirlpool Wire
7	Cabinet (White)
7	Cabinet (Biscuit)
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	WP488729 Whirlpool Refrigerator Door Screw
16	Wire, Belt Switch
17	693152 Whirlpool Bumper
18	WPW10121334 Whirlpool Washer
19	WP297092 Whirlpool Clip
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WP3387560 Whirlpool Door Hinge
21	WP3387559 Whirlpool Door Hinge
22	WP3387565 Whirlpool Door Spring
23	WP8066120 Whirlpool Lever Assembly
24	WPW10354249 Whirlpool Cover
25	WP8563747 Whirlpool Exhaust Pipe
26	WP3393657 Whirlpool Belt Retainer
27	279787 Whirlpool Dryer Drive Motor
28	WPW10416072 Whirlpool Elbow
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	Clip, Lint Duct
32	WP3387118 Whirlpool Base Assembly
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WP98129 Whirlpool Screw
35	WPW10331278 Whirlpool Exhaust Pipe
37	WP8563749 Whirlpool Exhaust Pipe
38	SCREW
39	W10837240 Whirlpool Dryer Idler Pulley
40	WP308685 Whirlpool Microwave Screw
41	W10820036 Whirlpool Door Switch Kit
44	WP3387242 Whirlpool Seal
46	WP3388229 Whirlpool Dryer Spring Clip
47	WP8066045 Whirlpool Door Assembly
48	WP694091 Whirlpool Screw
49	Door, Front (Biscuit)
49	Door, Front
50	WP691581 Whirlpool Actuator
51	PANEL, FRONT (WHITE)
51	Upper Front Panel (Biscuit)
57	W10823582 Whirlpool Door Seal
58	279570 Whirlpool Dryer Door Latch Kit
60	WP348721 Whirlpool Handle
60	3977242 Whirlpool Handle
61	WPL 3977764
61	WP3406797 Whirlpool Toe Panel
62	72017 Whirlpool Appliance Touch-Up Paint White
62	4392901 Whirlpool Biscuit Spray Paint
62	799344 Whirlpool Refrigerator Paint
62	4392899 Whirlpool Biscuit Touch-Up Paint
62	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
62	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
62	350930 Whirlpool White Spray Paint
62	350938 Whirlpool Spray Gun
