GEQ8858JT1 01 – SECTION

Products

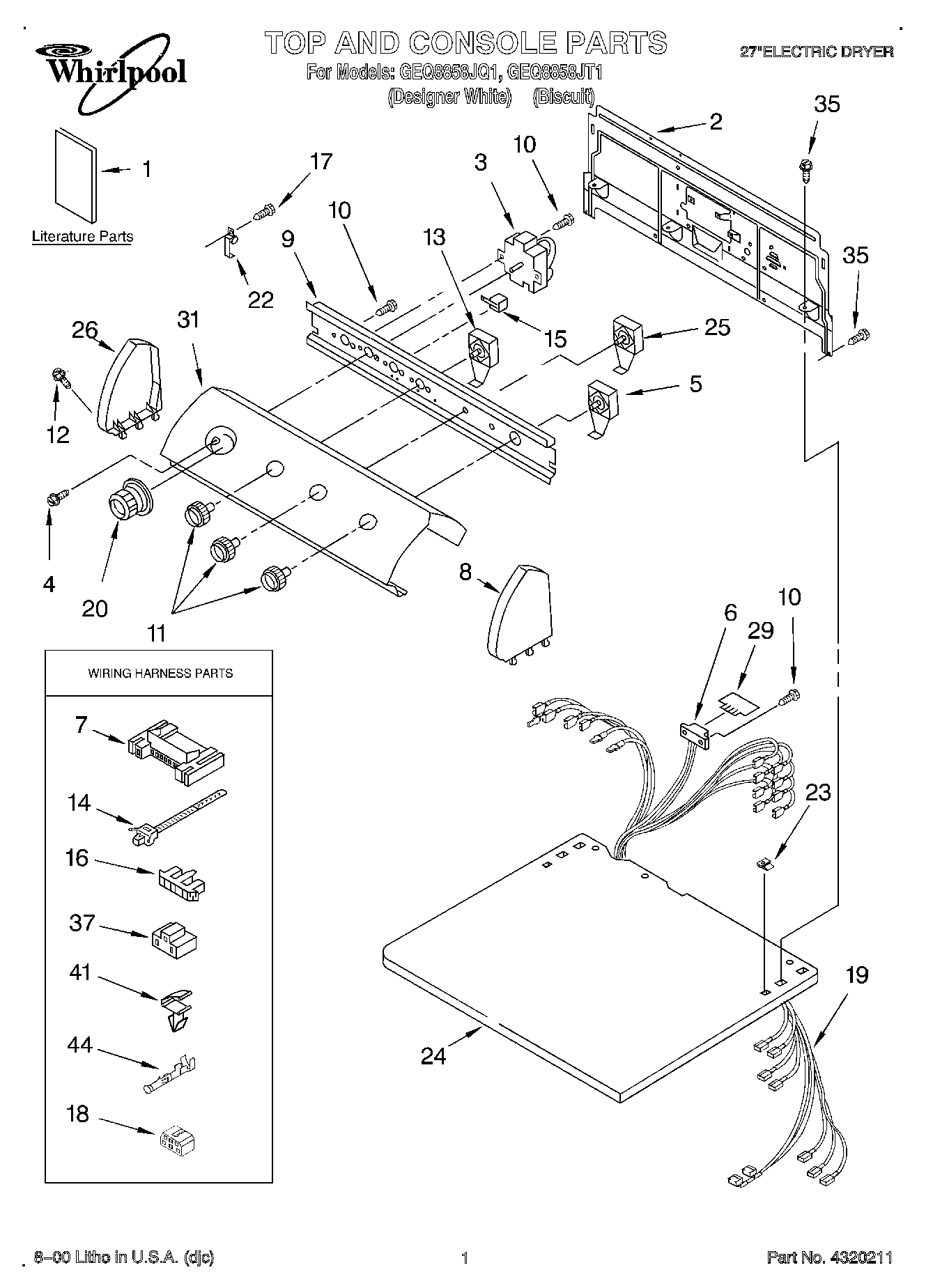

PositionProduct
Dryer
1Literature Parts (Guide, Use & Care)
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Instructions Installation)
2Panel, Rear Console
3WP3406725 Whirlpool Timer
43400859 Whirlpool Screw
5WP3398095 Whirlpool Dryer Start Relay
63391885 Whirlpool Connector
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9Bracket, Control
10WPW10139210 Whirlpool Screw
113957797 Whirlpool Knob
11WP3957799 Whirlpool Knob
12WP388326 Whirlpool Screw
13Switch, Temperature
14WP3391018 Whirlpool Wire Tie
15WP694419 Whirlpool Buzzer Adjuster
16Connector, Timer
17WP693995 Whirlpool Screw
18Block, Disconnect
19Harness, Electric
20WP3957755 Whirlpool Knob
20WP3957754 Whirlpool Knob Assembly
22Hinge, Console (2)
23WP357213 Whirlpool Hinge Stopper
24Top
24Top (Biscuit)
253405154 Whirlpool Primary Switch
26Cap, End (L.H.) (BIscuit)
29WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
31Panel, Control (White)
31Panel, Control (Biscuit)
35WP488729 Whirlpool Refrigerator Door Screw
373401144 Whirlpool Connector
41WP3394427 Whirlpool Clip
44WP94614 Whirlpool Terminal
