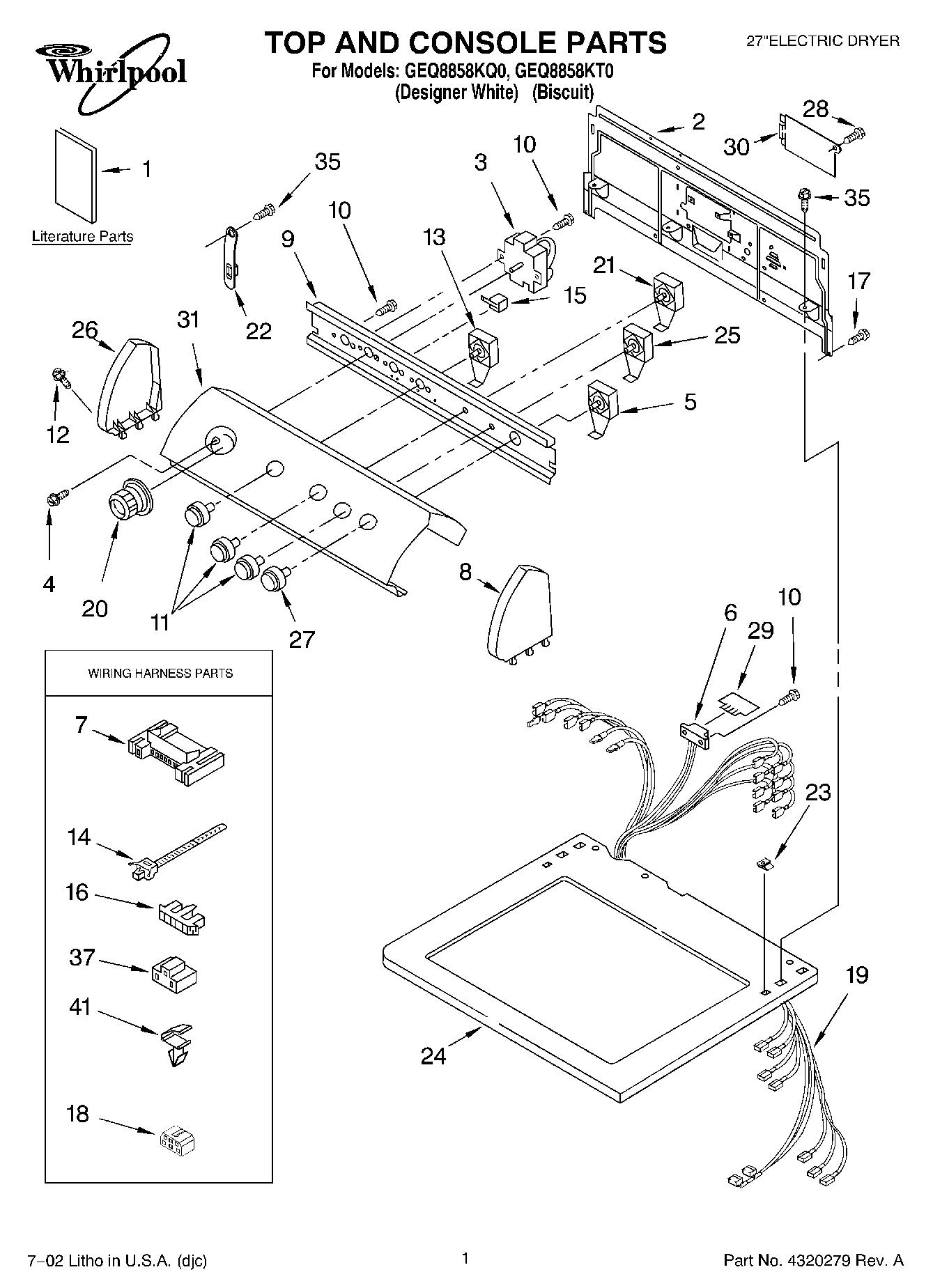

| Dryer |
| 1 | Literature Parts (Instructions Installation) |
| 1 | Literature Parts (Label, Wiring Diagram) |
| 1 | Literature Parts (Guide, Use & Care) |
| 2 | 285909 Whirlpool Rear Panel |
| 3 | WP3406725 Whirlpool Timer |
| 4 | 3400859 Whirlpool Screw |
| 5 | WP3398094 Whirlpool Push To Start Switch |
| 6 | 3391885 Whirlpool Connector |
| 7 | 3395683 Whirlpool Connector |
| 8 | W10820038 Whirlpool Endcap |
| 8 | WPL 8271362 |
| 9 | Bracket, Control |
| 10 | WPW10139210 Whirlpool Screw |
| 11 | 3957797 Whirlpool Knob |
| 11 | WP3957799 Whirlpool Knob |
| 12 | WP388326 Whirlpool Screw |
| 13 | 8528330 Whirlpool Temperature Control Switch |
| 14 | WP3391018 Whirlpool Wire Tie |
| 15 | WP694419 Whirlpool Buzzer Adjuster |
| 16 | Connector, Timer |
| 17 | WP693995 Whirlpool Screw |
| 18 | Block, Disconnect |
| 19 | Harness, Electric |
| 20 | WP3957755 Whirlpool Knob |
| 20 | WP3957754 Whirlpool Knob Assembly |
| 21 | 3405154 Whirlpool Primary Switch |
| 22 | WP8568314 Whirlpool Strap |
| 23 | WP357213 Whirlpool Hinge Stopper |
| 24 | Top |
| 24 | Top (Biscuit) |
| 25 | 3405152 Whirlpool Switch Assembly |
| 26 | Cap, End (L.H.) (BIscuit) |
| 27 | WPL 8271349 |
| 27 | 3957804 Whirlpool Knob |
| 28 | WP90767 Whirlpool Screw |
| 29 | WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core |
| 30 | WPW10119283 Whirlpool Terminal Cover |
| 31 | Panel, Control (White) |
| 31 | Panel, Control (Biscuit) |
| 35 | WP488729 Whirlpool Refrigerator Door Screw |
| 37 | 3401144 Whirlpool Connector |
| 41 | WP3394427 Whirlpool Clip |
