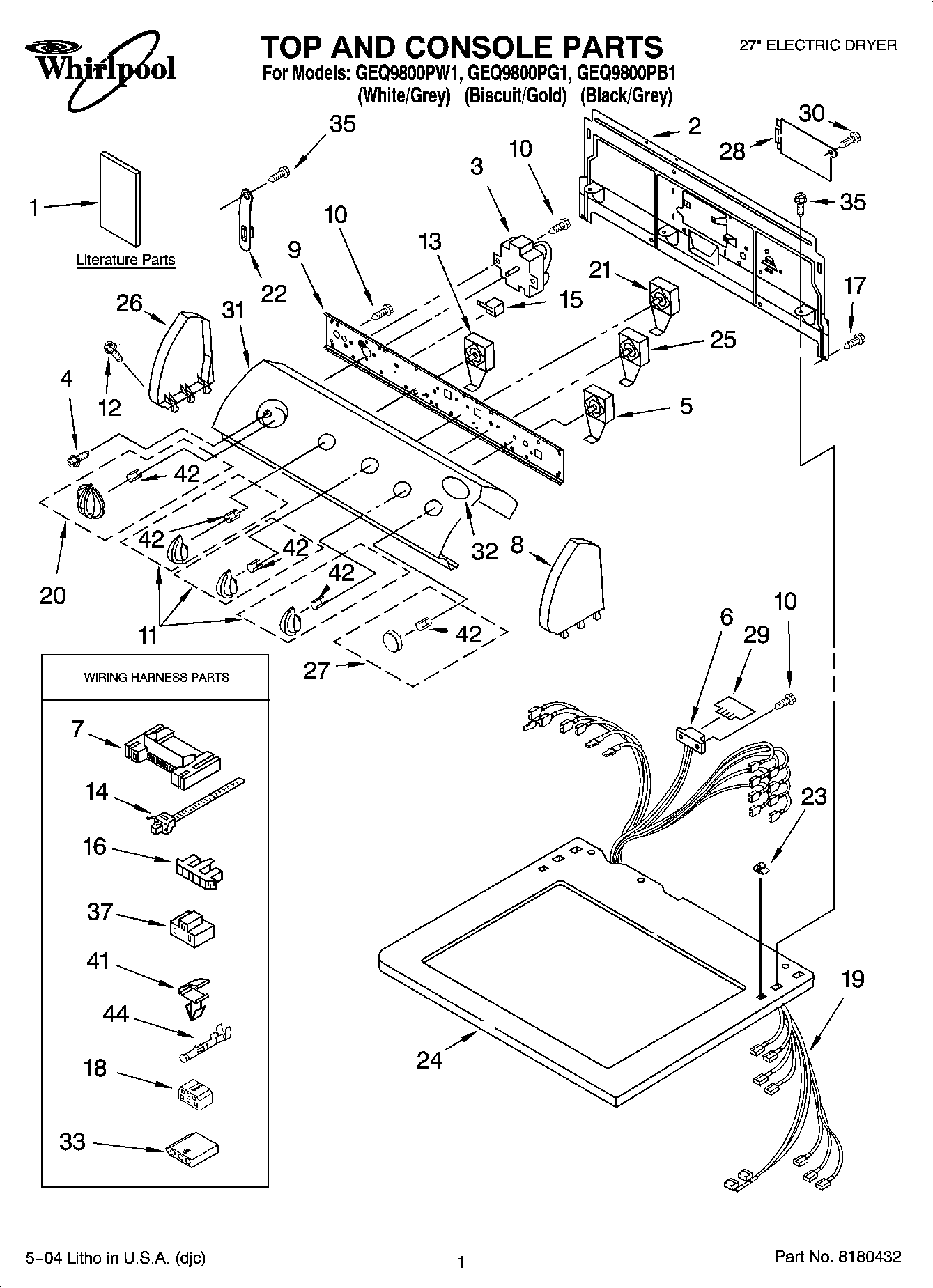

GEQ9800PB1 01 – TOP AND CONSOLE PARTS

GEQ9800PB1 01 – TOP AND CONSOLE PARTS

Written by

in

GEQ9800PB1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Guide, Use & Care
1Instructions Installation
2285909 Whirlpool Rear Panel
3WP3406725 Whirlpool Timer
43400859 Whirlpool Screw
5WP3398094 Whirlpool Push To Start Switch
63391885 Whirlpool Connector
73395683 Whirlpool Connector
8Cap, End (R.H.)
8WPL 8271362
8W10820038 Whirlpool Endcap
9Bracket, Control
10WPW10139210 Whirlpool Screw
11WPL 8544937
11WPL 8544938
12WP388326 Whirlpool Screw
138528330 Whirlpool Temperature Control Switch
14WP3391018 Whirlpool Wire Tie
15WP694419 Whirlpool Buzzer Adjuster
16Connector, Timer
17WP693995 Whirlpool Screw
18Block, Disconnect
19Harness, Electric
20WPL 8544957
20WPL 8544958
213405154 Whirlpool Primary Switch
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top (Biscuit)
24Top (White)
24Top (Black)
253405152 Whirlpool Switch Assembly
26Cap, End (L.H.)
26Cap, End (L.H.) (BIscuit)
27WP8544941 Whirlpool Knob
28WPW10119283 Whirlpool Terminal Cover
29WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30WP90767 Whirlpool Screw
31Panel, Control (Includes Illus. 39) (Silver)
31Panel, Control (Includes Illus. 39) (Gold)
32WPL 8533990
333936144 Whirlpool Connector
35WP488729 Whirlpool Refrigerator Door Screw
373401144 Whirlpool Connector
41WP3394427 Whirlpool Clip
42WP8536939 Whirlpool Spring Clip
44WP94614 Whirlpool Terminal
