GEQ9858JQ1 02 – SECTION

GEQ9858JQ1 02 – SECTION

Written by

in

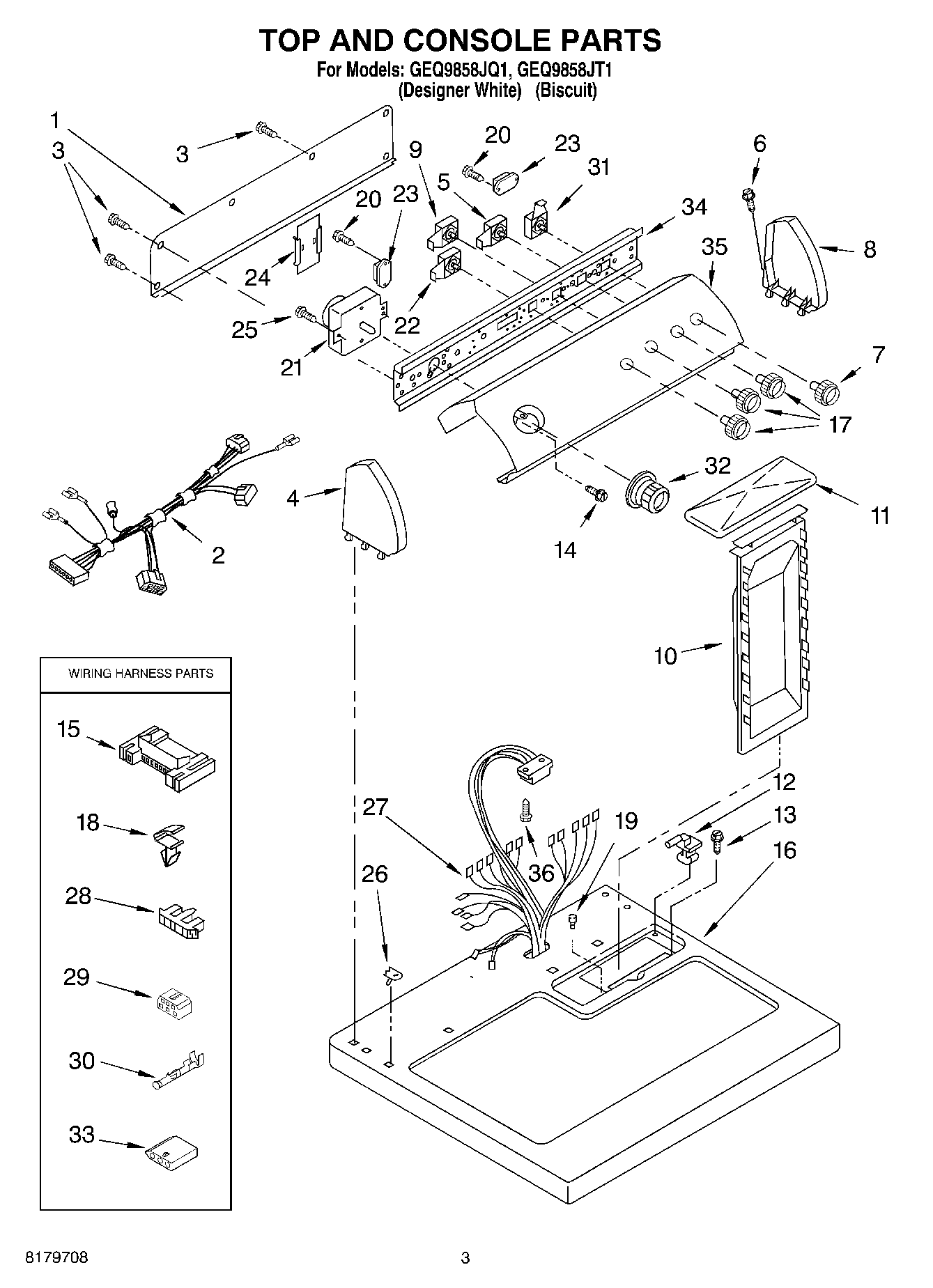

GEQ9858JQ1 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Harness, Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53405151 Whirlpool Switch
6WP388326 Whirlpool Screw
73957804 Whirlpool Knob
7WPL 8271349
8W10820038 Whirlpool Endcap
8WPL 8271362
93405152 Whirlpool Switch Assembly
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
173957797 Whirlpool Knob
17WP3957799 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
20WP3388228 Whirlpool Screw
21WP8299771 Whirlpool Timer
22WP3399643 Whirlpool Switch
23WP3405281 Whirlpool Relay
24Control Board
25WPW10139210 Whirlpool Screw
26WP357213 Whirlpool Hinge Stopper
27Harness, Wiring
28Connector, Timer
29Block, Disconnect
30WP94614 Whirlpool Terminal
31WP3977456 Whirlpool Start Switch
32WP3957754 Whirlpool Knob Assembly
32WP3957755 Whirlpool Knob
333936144 Whirlpool Connector
34Bracket, Control
35WPL 3977830
35WPL 3977831
36799344 Whirlpool Refrigerator Paint
36350938 Whirlpool Spray Gun
3672017 Whirlpool Appliance Touch-Up Paint White
36350930 Whirlpool White Spray Paint
36SCREW
364392899 Whirlpool Biscuit Touch-Up Paint
364392901 Whirlpool Biscuit Spray Paint
363406839 Whirlpool Drying Rack
364392065 Whirlpool Dryer Maintenance Kit
36PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
