GEQ9858JQ1 03 – SECTION

GEQ9858JQ1 03 – SECTION

Written by

in

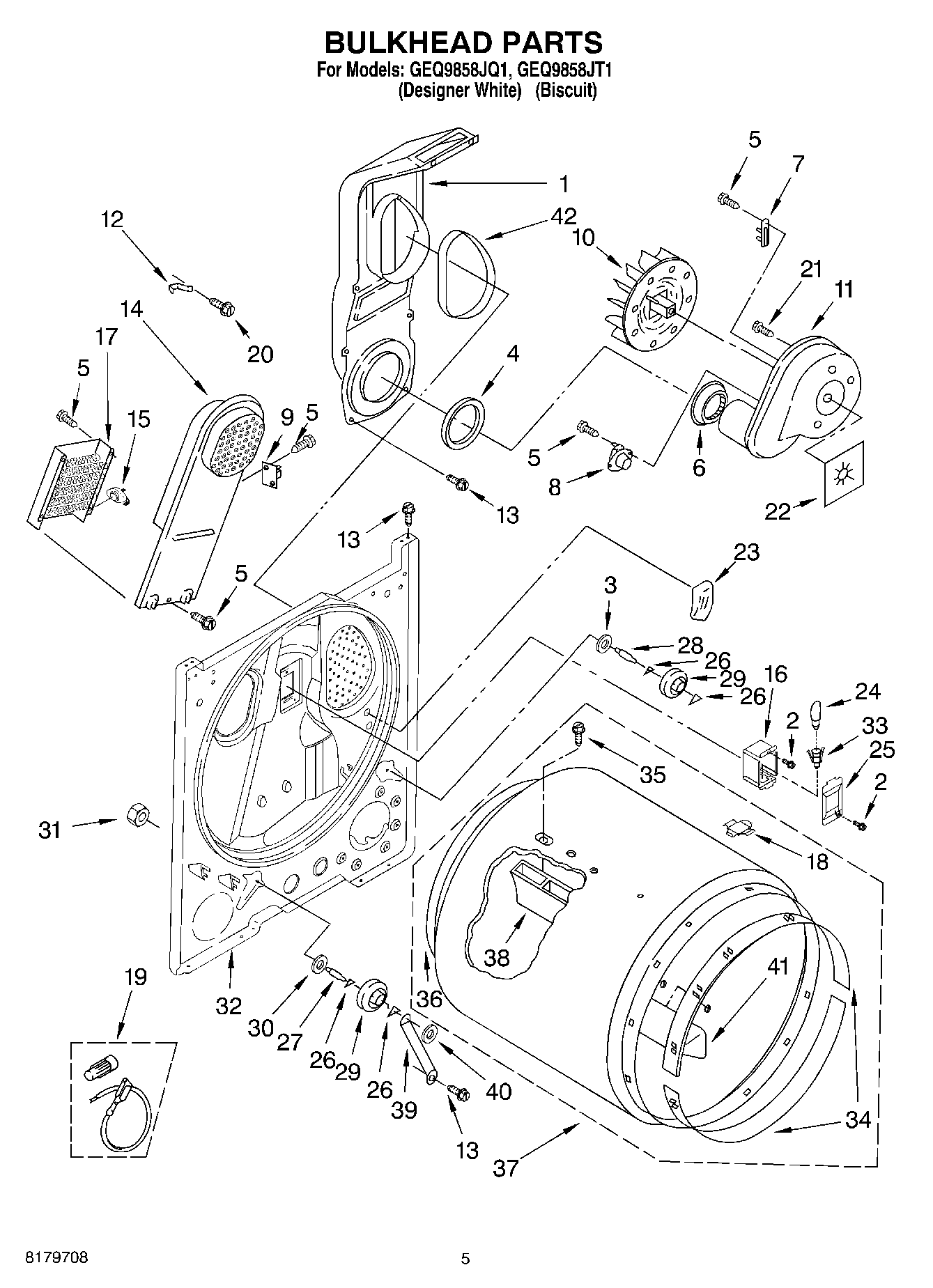

GEQ9858JQ1 03 – SECTION

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3390719 Whirlpool Dryer Thermal Fuse
8WP8577274 Whirlpool Dryer Thermistor
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
163977373 Whirlpool Bracket
17279838 Whirlpool Dryer Heating Element 5400W
188066086 Whirlpool Plug
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21WP488729 Whirlpool Refrigerator Door Screw
22Seal, Blower
23SENSOR KIT
24WP22002263 Whirlpool Dryer 10W Light Bulb
25W11226088 Whirlpool Lens Assembly
26WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
27SHAFT SUPPORT ROLLER DRYER
28SHAFT SUPPORT ROLLER DRYER
29349241T Whirlpool Dryer Drum Support Roller Kit
30WP348197 Whirlpool Washer Assembly
31WP3359452 Whirlpool Nut
32W10828905 Whirlpool Bulkhead OS1
33W11700522 Whirlpool Socket
34279441 Whirlpool Front Bearing Ring
35WPW10109200 Whirlpool Screw
36W10612022 Whirlpool Felt Seal
37W10899578 Whirlpool Dryer Drum Assembly
38BAFFLE-DRM
39W11684613 Whirlpool Bracket
40WP90296 Whirlpool Clip
41WP3403636 Whirlpool Drum Baffle
42SEAL
