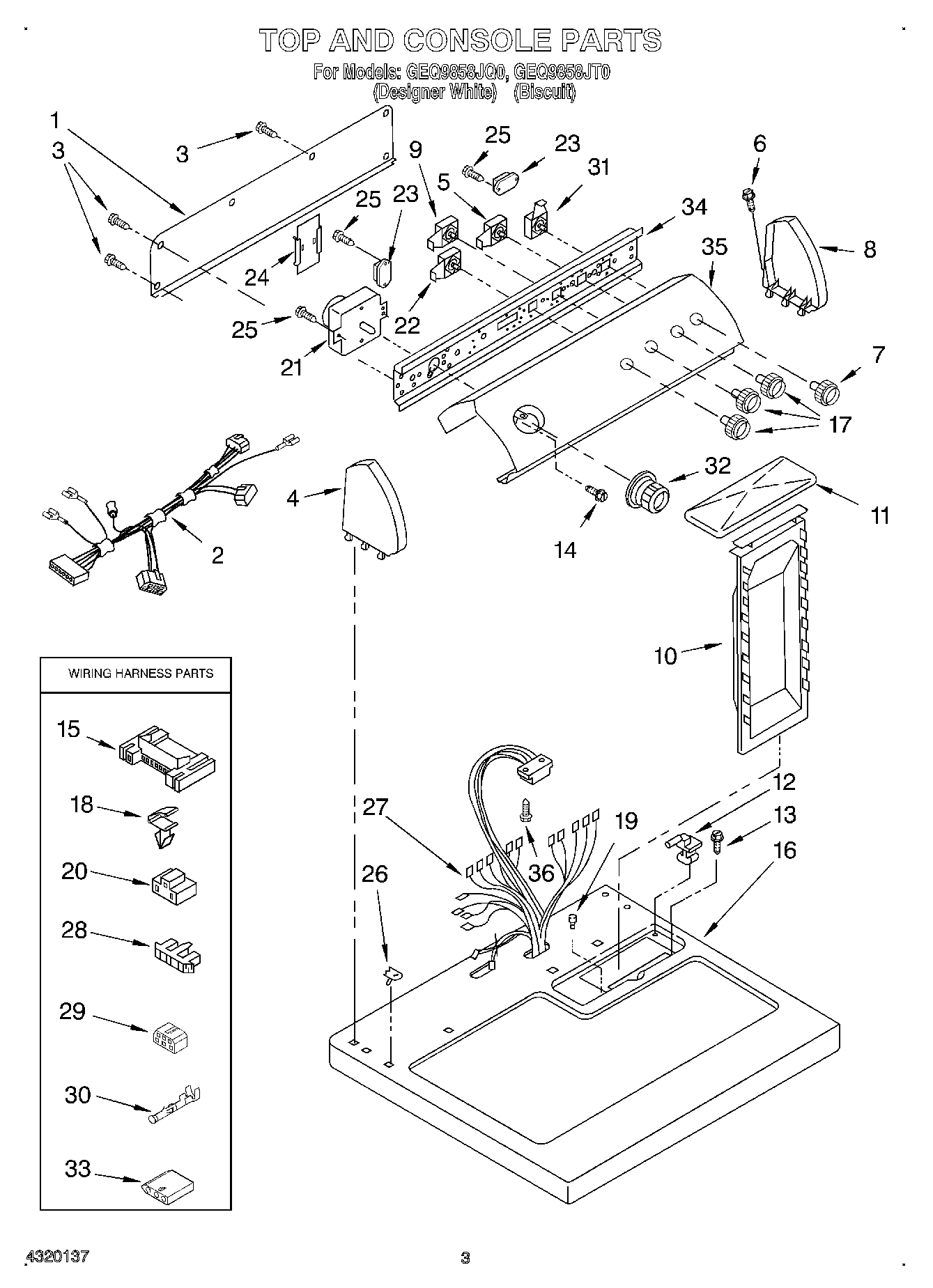

GEQ9858JT0 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Harness, Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53405151 Whirlpool Switch
6WP388326 Whirlpool Screw
73957804 Whirlpool Knob
7WPL 8271349
8WPL 8271362
8W10820038 Whirlpool Endcap
93405152 Whirlpool Switch Assembly
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17WP3957799 Whirlpool Knob
173957797 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
203401144 Whirlpool Connector
21WP8299771 Whirlpool Timer
22WP3399643 Whirlpool Switch
23WP3405281 Whirlpool Relay
24Control Board
25WPW10139210 Whirlpool Screw
26WP357213 Whirlpool Hinge Stopper
27Harness, Wiring
28Connector, Timer
29Block, Disconnect
30WP94614 Whirlpool Terminal
31WP3395382 Whirlpool Push To Start Switch
32WP3957754 Whirlpool Knob Assembly
32WP3957755 Whirlpool Knob
333936144 Whirlpool Connector
34Bracket, Control
35WPL 3977831
35WPL 3977830
364392901 Whirlpool Biscuit Spray Paint
36350938 Whirlpool Spray Gun
36SCREW
36799344 Whirlpool Refrigerator Paint
3672017 Whirlpool Appliance Touch-Up Paint White
36PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
364392899 Whirlpool Biscuit Touch-Up Paint
36350930 Whirlpool White Spray Paint
