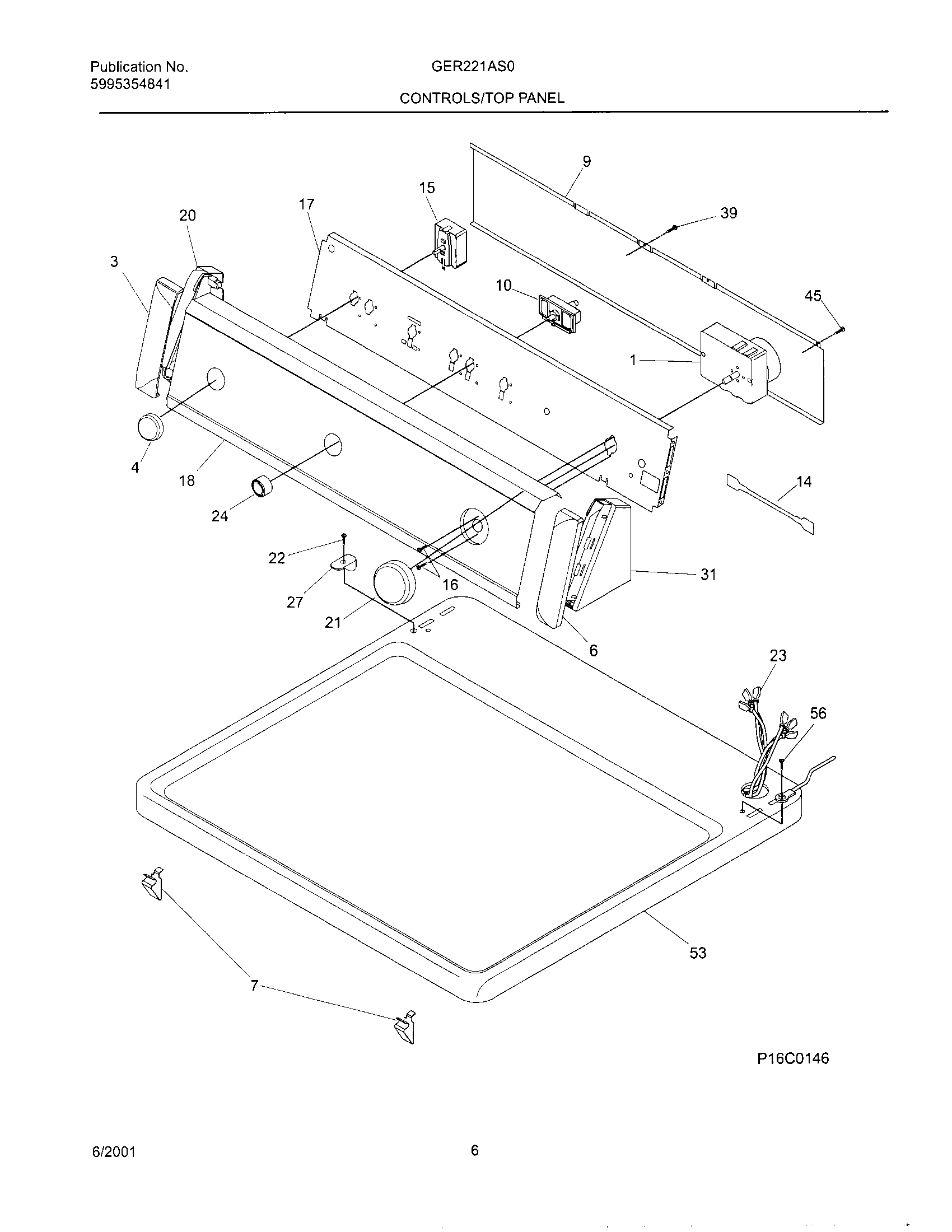

GER221AS0 07 – CONTROL PANEL

Products

Position	Product
1	5303297177 Frigidaire Dryer Control Timer
3	COVER-CAP-LH-WHITE
4	134886700 Frigidaire Dryer Timer Knob
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	WCI 131141730
10	131469000 Frigidaire Switch-Push/Start P1
14	RESISTOR-POWER, 4.4K
15	Switch,2 position
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 134039800
20	END CAP-L.H.-WHITE
21	WCI 131860001
22	WCI 131266300
23	WCI 134003900
24	WCI 131111501
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
