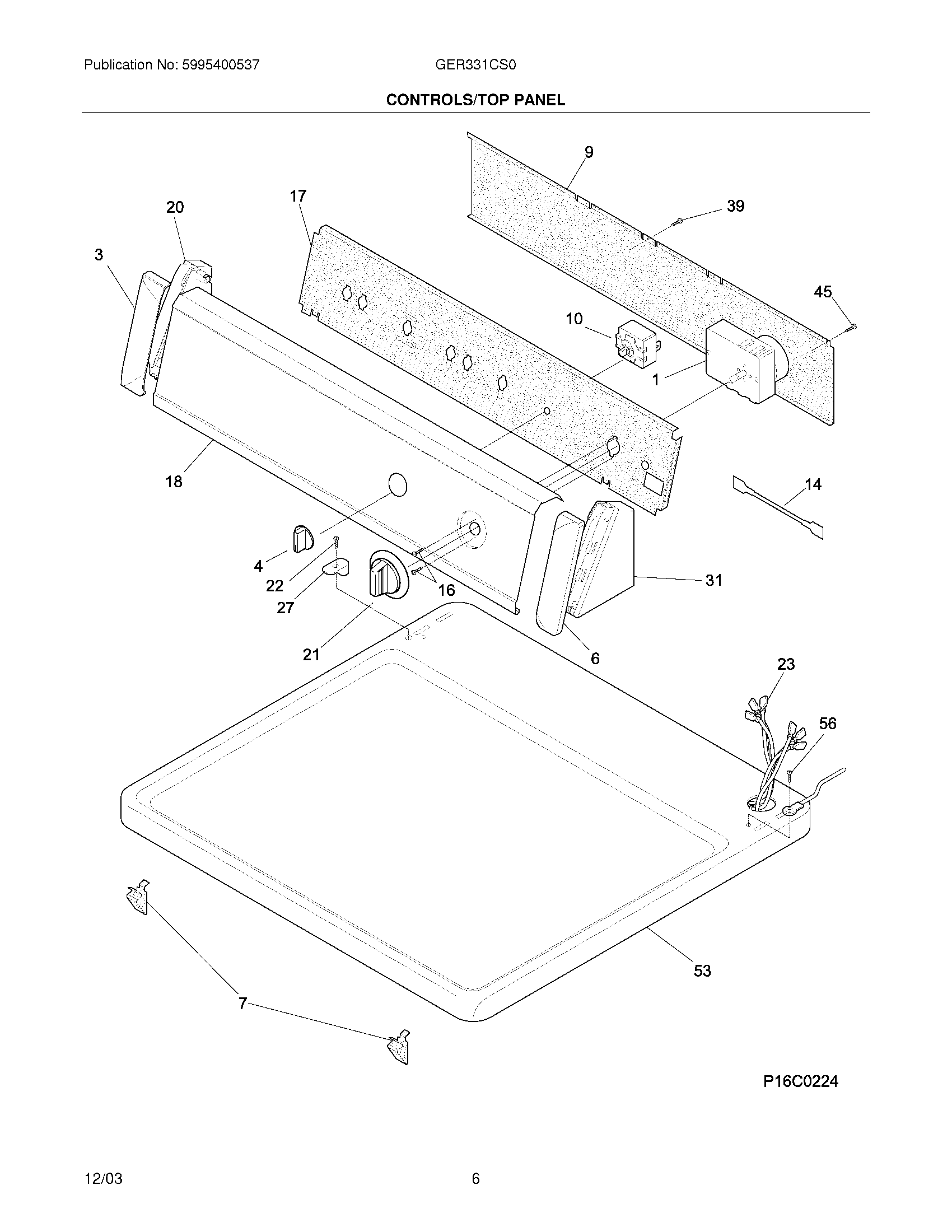

GER331CS0 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	131062300 Frigidaire Timer
3	COVER-CAP-LH-WHITE
4	WCI 131786603
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	WCI 134088700
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 134283100
20	END CAP-L.H.-WHITE
21	WCI 131873203
22	WCI 131266330
23	WCI 134157900
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	WCI 134086802
56	131243800 Frigidaire Screw
