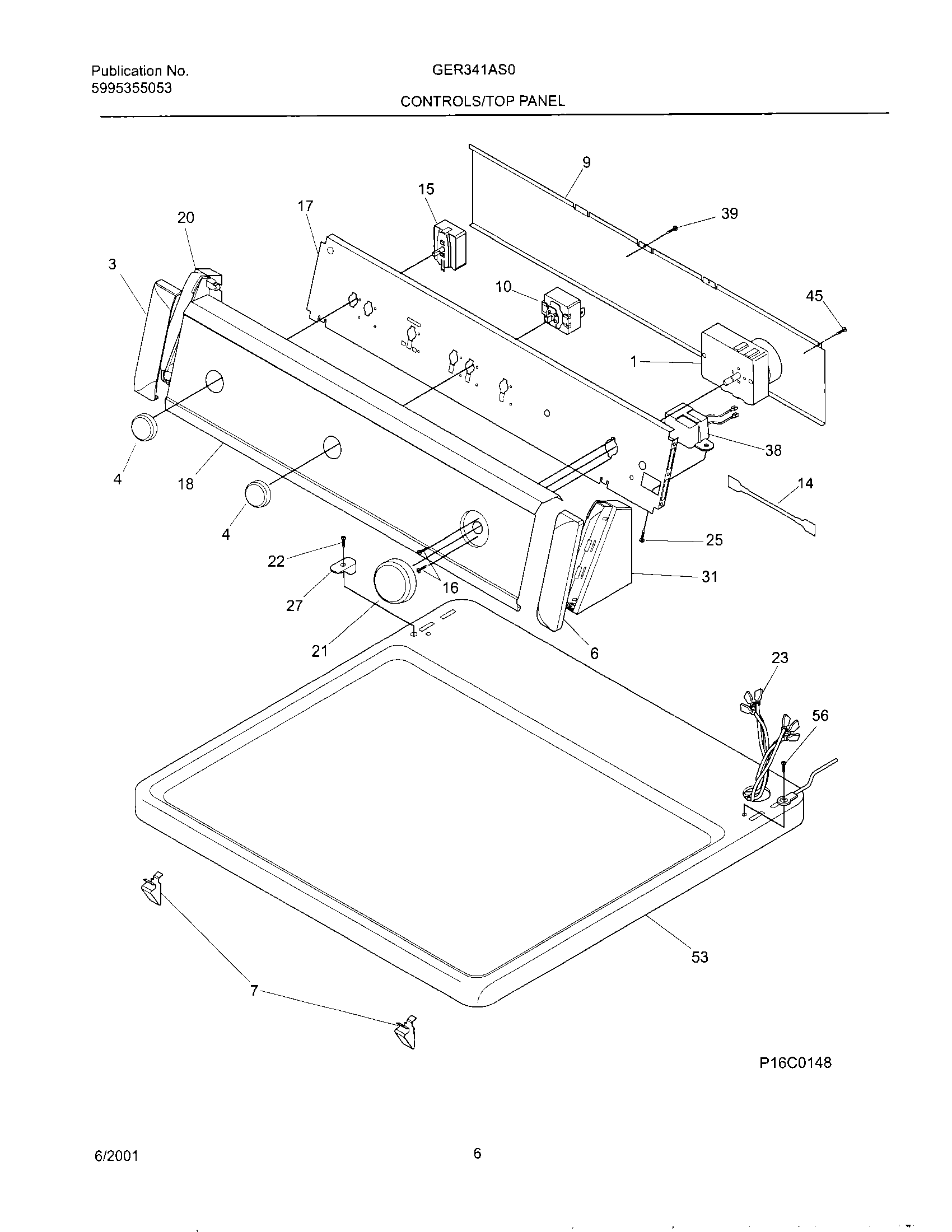

GER341AS0 07 – CONTROL PANEL

Products

Position	Product
1	131719100 Frigidaire Timer Assembly
3	COVER-CAP-LH-WHITE
4	134886700 Frigidaire Dryer Timer Knob
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	WCI 131141730
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 134040300
20	END CAP-L.H.-WHITE
21	WCI 131860001
22	WCI 131266300
23	WCI 134004200
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
38	WCI 5303210285
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
