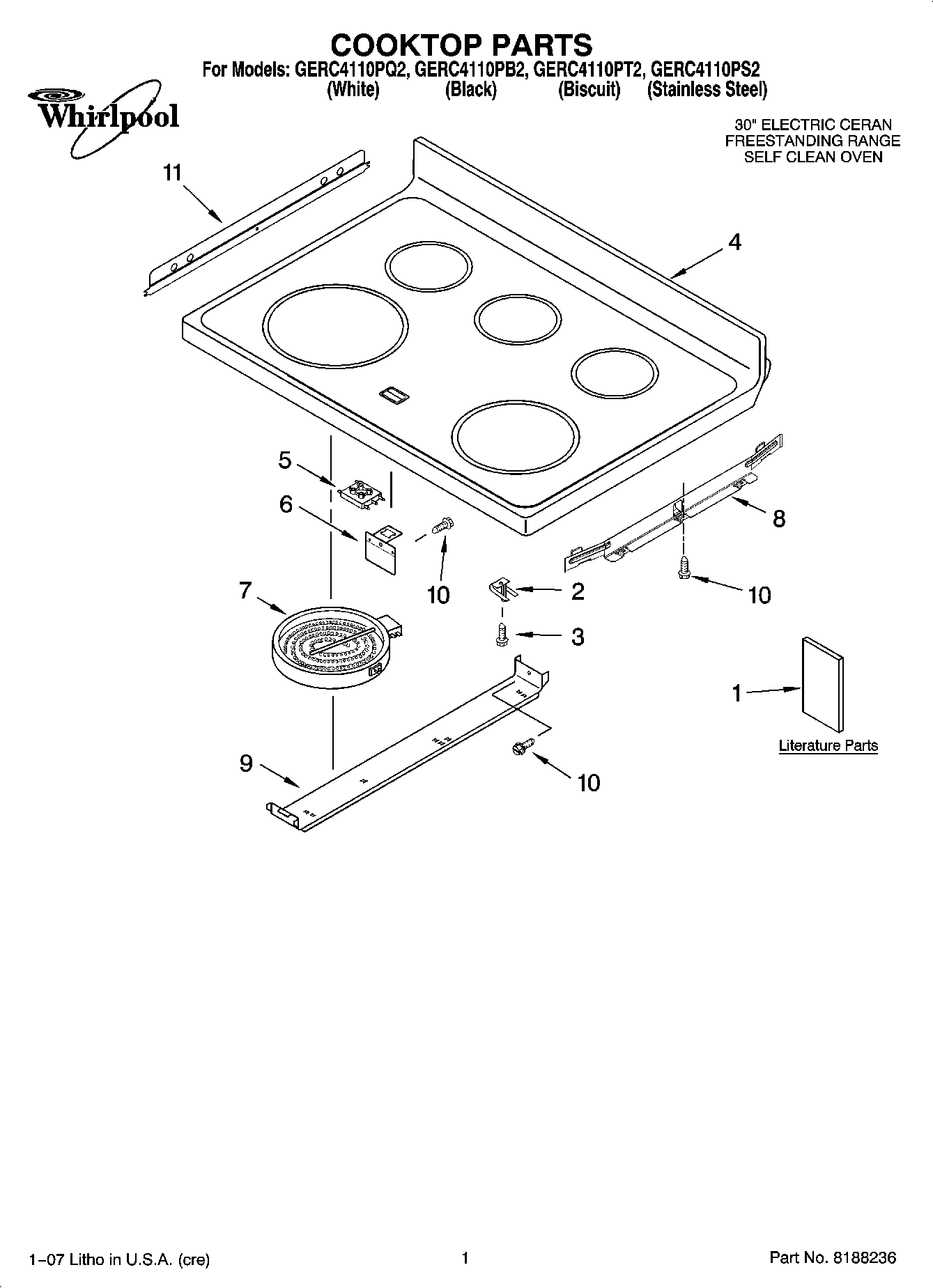

GERC4110PB2 01 – COOKTOP PARTS

GERC4110PB2 01 – COOKTOP PARTS

Written by

in

GERC4110PB2 01 – COOKTOP PARTS

Products

PositionProduct
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1Use & Care Guide
1Tech Sheet
1Installation Instructions Template, Anti-Tip
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Black)
4Cooktop (Biscuit)
4Cooktop (White)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7WP8523699 Whirlpool Surface Element
7W10823692 Whirlpool Dual Radiant Element
8WPL 8524132
9Bracket, Element ((1))
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
11Heat Shield
