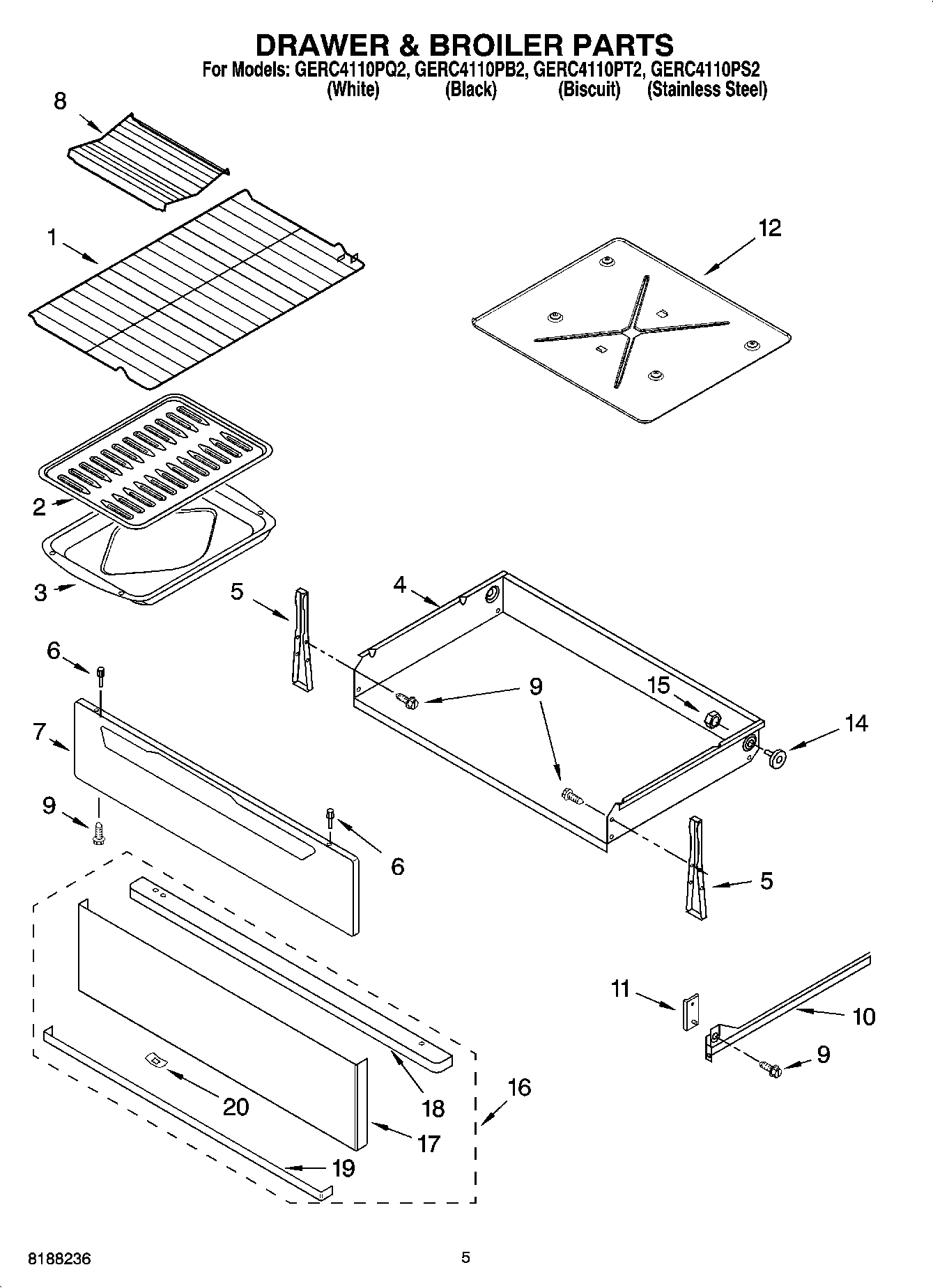

GERC4110PB2 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
6	WP3196813 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
7	W11230476 Whirlpool Drawer Panel
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
8	Rack, Roasting
9	WP3400832 Whirlpool Screw
10	Rail, Drawer (Left Hand)
10	Rail, Drawer (Right Hand)
11	Spacer, Glide
12	Heat Shield, Drawer
14	814229 Whirlpool Primary Roller
15	WP487939 Whirlpool Refrigerator Nut
16	Stainless Model Only
17	Panel, Stainless
18	Handle
19	Bottom, Drawer
20	WP9781235 Whirlpool Clip
