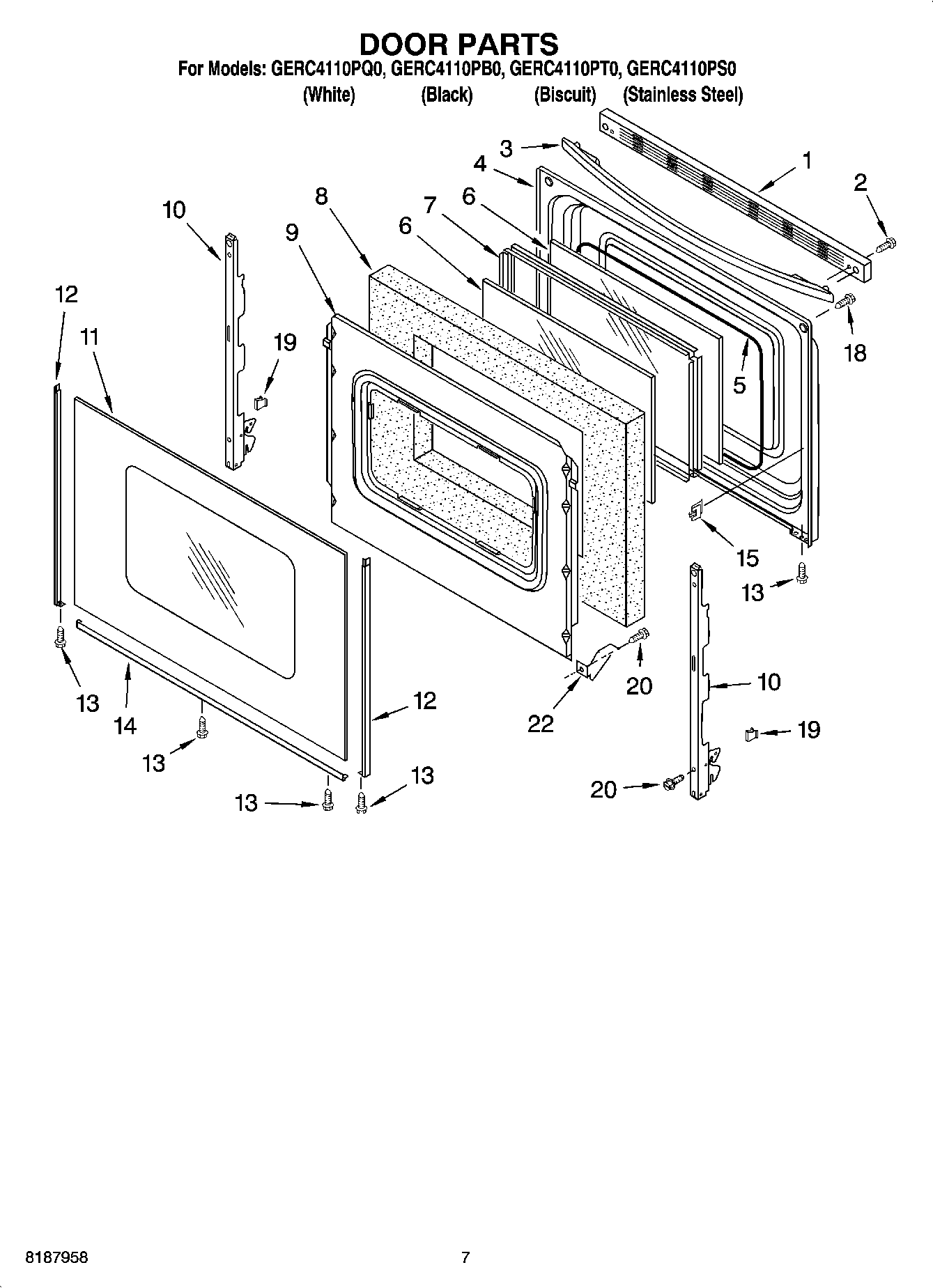

GERC4110PS0 05 – DOOR PARTS, MISCELLANEOUS PARTS

GERC4110PS0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

GERC4110PS0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI148191A
WPL 8316781
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WPL 9756550
WPL 9756350
WPL ARI148190A
WPL ARI148189A
WPL ARI148188A
WPL ARI148187A
WPL ARI148186A
WPL ARI148185A
WPL ARI148184A
WPL ARI148183A
WPL 9759773
WPL 9758420
WPL 9759599
WPL 9758383
WPL 9759775
WPL 9756779
Wire (14 Ga. 150 c Blue)
72017 Whirlpool Appliance Touch-Up Paint White
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
350930 Whirlpool White Spray Paint
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
285006 Whirlpool Spray
242831 Whirlpool Oven Wire
W11209404 Whirlpool Wire Harness
4392901 Whirlpool Biscuit Spray Paint
1Trim, Top (Stainless Model)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3WPW10202217 Whirlpool Door Handle
3Handle, Door (Biscuit)
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10Hinge, Door (Stainless Model)
10WP8053807 Whirlpool Oven Door Hinge
11WPW10118455 Whirlpool Door Glass Assembly
11Glass, Outer (Biscuit)
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Stainless Steel)
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
