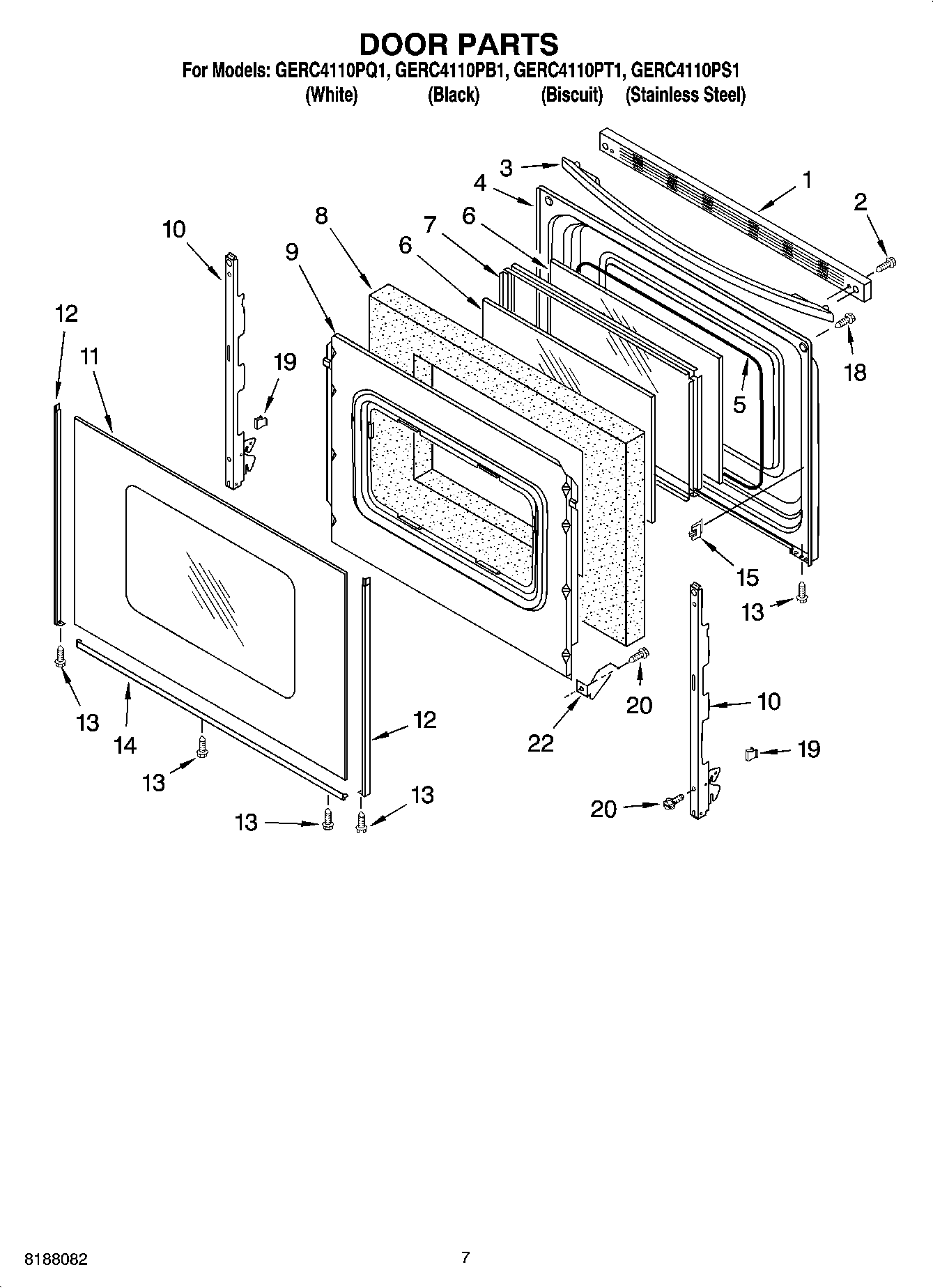

GERC4110PS1 05 – DOOR PARTS, OPTIONAL PARTS

GERC4110PS1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

GERC4110PS1 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI148200A
	WP3196154 Whirlpool Screw Assembly
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WPL 9756550
	WPL 9756350
	WPL ARI148199A
	WPL ARI148198A
	WPL ARI148197A
	WPL ARI148196A
	WPL ARI148195A
	WPL ARI148194A
	WPL 9759773
	WPL ARI148201A
	WPL 9759599
	WPL 9758383
	WPL 9758193
	WPL 9759775
	WPL 9756779
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	Wire, 25` Roll (Red 14 Ga.)
	4392899 Whirlpool Biscuit Touch-Up Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	W11209404 Whirlpool Wire Harness
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	4392901 Whirlpool Biscuit Spray Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
1	Trim, Top (Stainless Model)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
10	Hinge, Door (Stainless Model)
11	Glass, Outer (Biscuit)
11	Glass, Outer (Stainless Steel)
11	WPW10118455 Whirlpool Door Glass Assembly
11	WPW10118454 Whirlpool Door Outer Glass White
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	W10761014 Whirlpool Right Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523180 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
14	WP8523177 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
22	WP3196794 Whirlpool Glass Bracket
