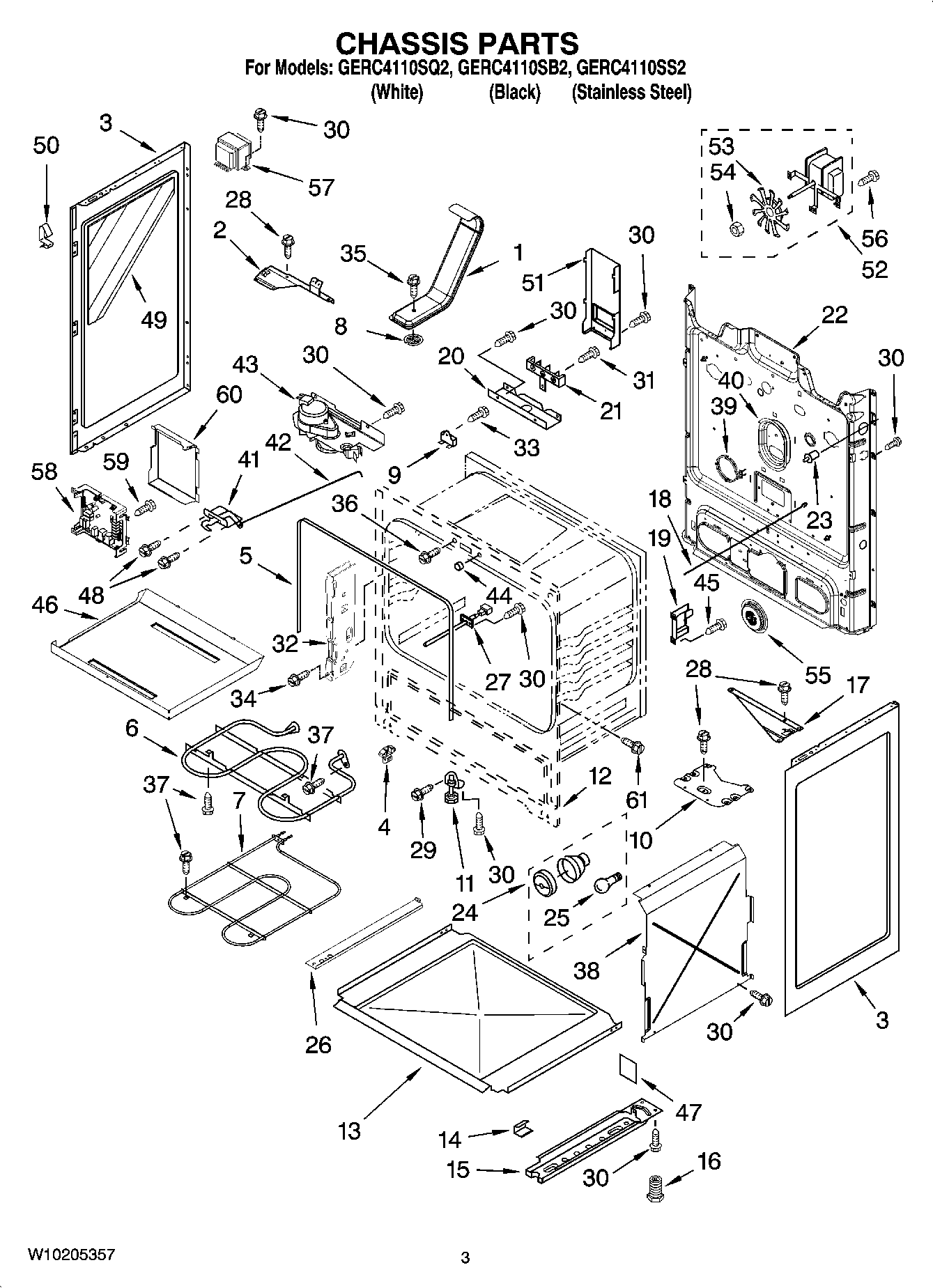

GERC4110SB2 03 – CHASSIS PARTS

GERC4110SB2 03 – CHASSIS PARTS

Written by

in

GERC4110SB2 03 – CHASSIS PARTS

Products

PositionProduct
8053915 Whirlpool Oven Insulation
Insulation
WPW10208653 Whirlpool Insulation
Insulation, Back
1WPW10134285 Whirlpool Vent Tube
2Support, Corner LR
3W11730303 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
4WPW10114344 Whirlpool Drawer Glide
5W11542153 Whirlpool Door Gasket
6WP9757341 Whirlpool Broil Element
7WP9755770 Whirlpool Bake Element
89761301 Whirlpool Oven Screen
9WP3196548 Whirlpool Thermal Fuse
10Support, Front (2)
11WP3196037 Whirlpool Leveling Foot
12Frame, Front Not Serviced
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17Support, Corner RR
189757239 Whirlpool Oven Door Rod
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21Block, Terminal
21WP112432 Whirlpool Nut Assembly
22Back, Main
23WP9757262 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
26Cover, Tray
27WPW10181986 Whirlpool Oven Sensor
28WP3196175 Whirlpool Screw
29Screw
30SCREW
31WP3400016 Whirlpool Screw Assembly
32W10647259 Whirlpool Hinge Receiver
333196172 Whirlpool Oven Screw
34W10777162 Whirlpool Screw
35WP489491 Whirlpool Refrigerator Screw
36WP3400832 Whirlpool Screw
37WP3196174 Whirlpool Screw
38W10450380 Whirlpool Retainer
39WP9760769 Whirlpool Element Assembly
40Cover, Convection Fan
41WP9761013 Whirlpool Door Latch
42Rod, Latch
43WPW10107840 Whirlpool Door Latch
44W10877054 Whirlpool Spacer Assembly
45WP3196557 Whirlpool Screw
46Tray, Hidden Bake Element
47W10646923 Whirlpool Insulator
48W11169708 Whirlpool Screw
49Insulation
50Clip, Mounting
51Cover, Box
52WP9758925 Whirlpool Convection Fan
53WP4452226 Whirlpool Convection Fan
54Nut
55WPW10134124 Whirlpool Fan Cover
56WP4449809 Whirlpool Screw
57Transformer
58Appliance Manager
59Screw
60Cover
61WPW10067840 Whirlpool Screw
