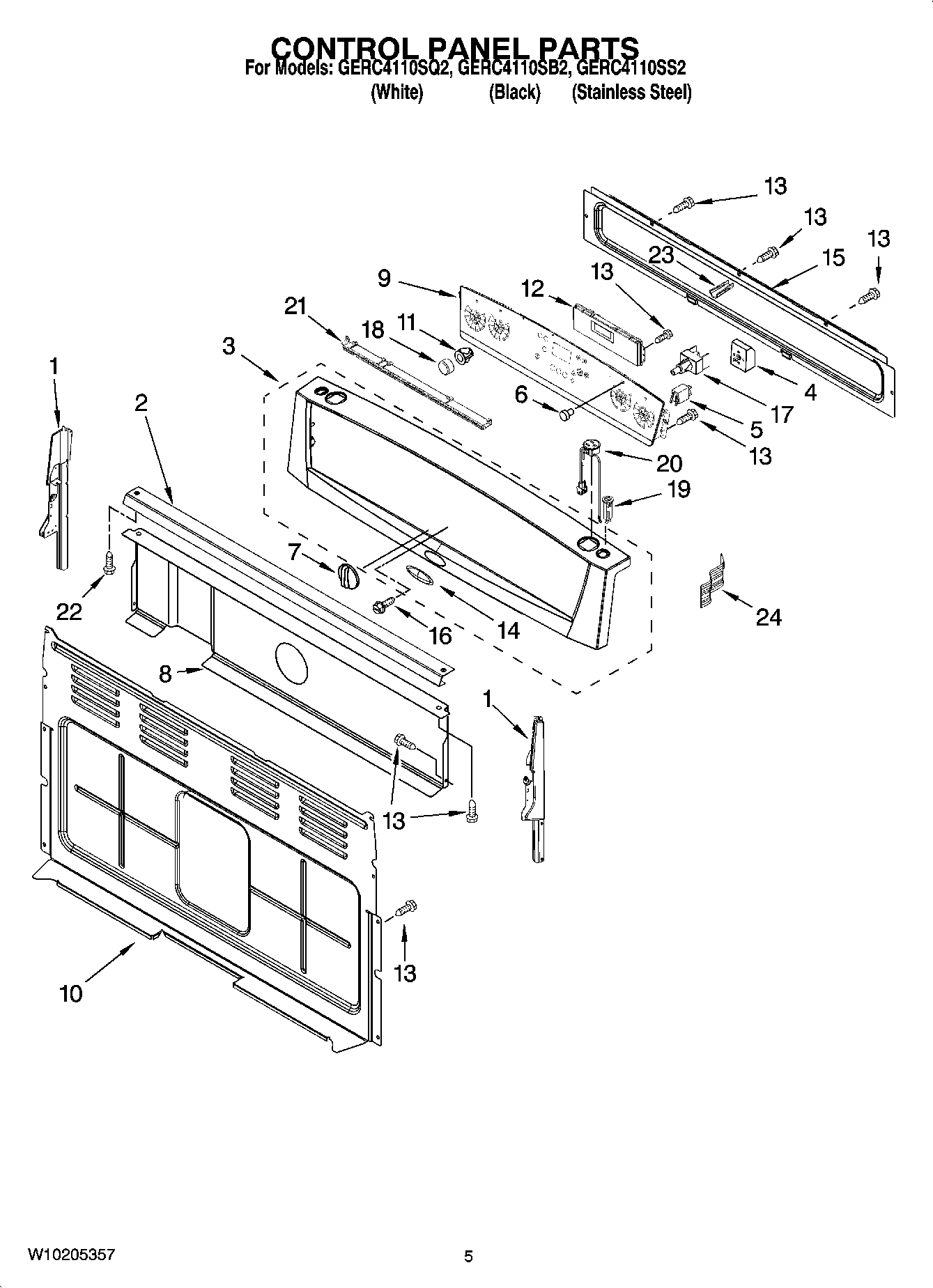

GERC4110SB2 04 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
2Bracket, Console
3Panel, Backguard (Black and S.Steel Models)
3Panel, Backguard (White)
3Panel, Control (Black)
4WP3149404 Whirlpool Oven Surface Element Switch
4WP9758060 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4) (White)
7W10851285 Whirlpool Knob
8Shield, Heat
9Glss Swtch Membrn (Black)
9Glss Swtch Membrn (White)
10Cover, Rear
11Bezel, Keep Warm (Black)
11Bezel, Keep Warm (White)
12Control, Range
13SCREW
149757613 Whirlpool Oven Nameplate
15Cover, Rear (Console)
16WP3400882 Whirlpool Screw
17WP8272820 Whirlpool PB Switch
189758491 Whirlpool Oven Push Button
189757492 Whirlpool Oven Push Button
19Breaker, 15Amp (Architect Grey)
19WP9757602 Whirlpool Breaker
19WP9757601 Whirlpool Breaker
20Receptacle (White)
20Receptacle (Black)
20Receptacle (Architect Grey)
21Re
223196166 Whirlpool Screw
23WPL 9757490
24W11209404 Whirlpool Wire Harness
