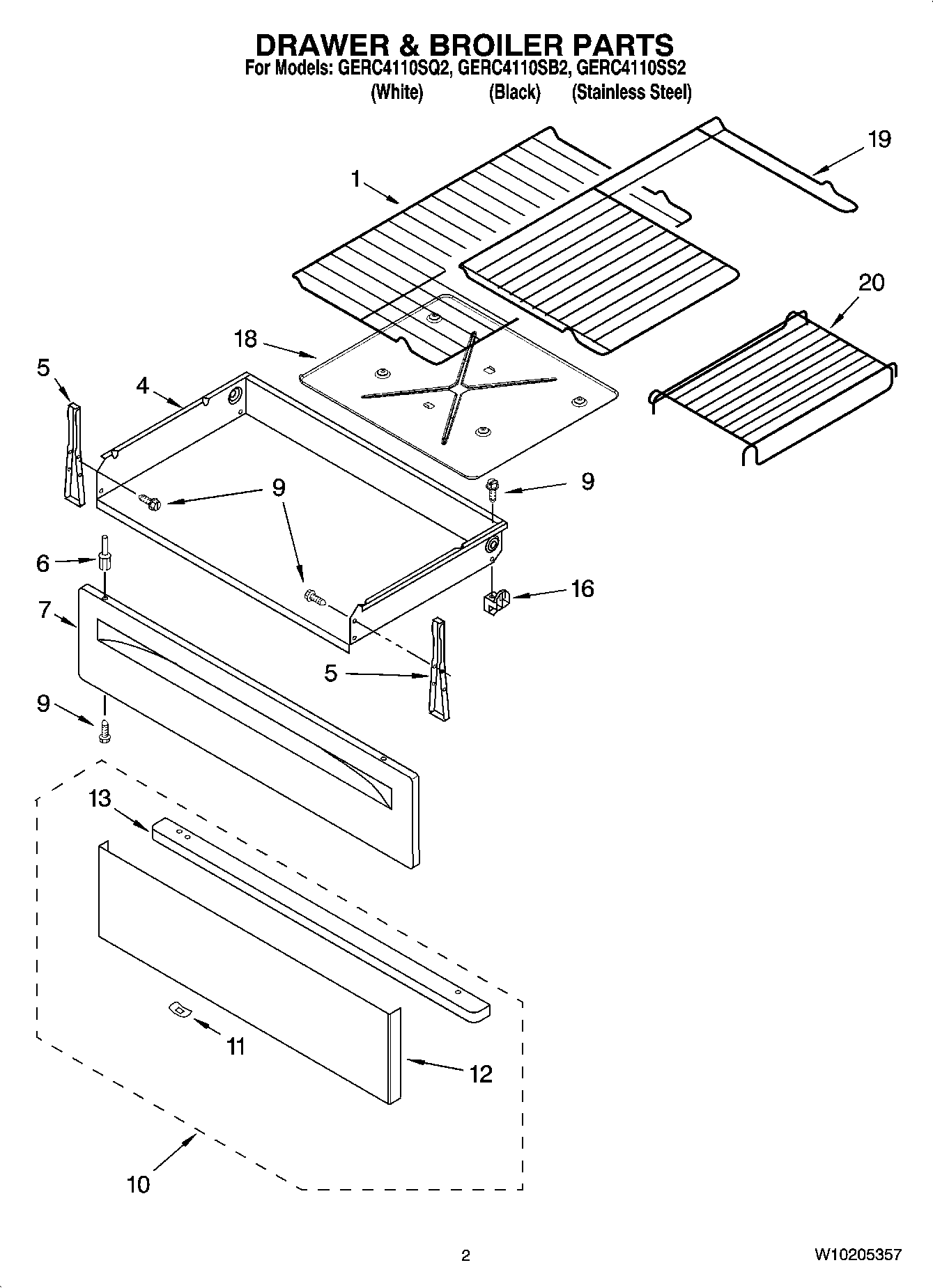

GERC4110SQ2 02 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	WPW10462912 Whirlpool Bracket Mounting
6	WP3196813 Whirlpool Rivet
6	WP3196814 Whirlpool Rivet
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
9	WP3400832 Whirlpool Screw
10	For Stainless Model Only
11	WP9781235 Whirlpool Clip
12	Panel, Stainless
13	Handle, Drawer
16	WP8053334 Whirlpool Drawer Glide
18	Heat Shield, Drawer
19	Rack, Partial
20	WP8274022 Whirlpool Oven Rack
