GERC4110SS2 01 – COOKTOP PARTS

GERC4110SS2 01 – COOKTOP PARTS

Written by

in

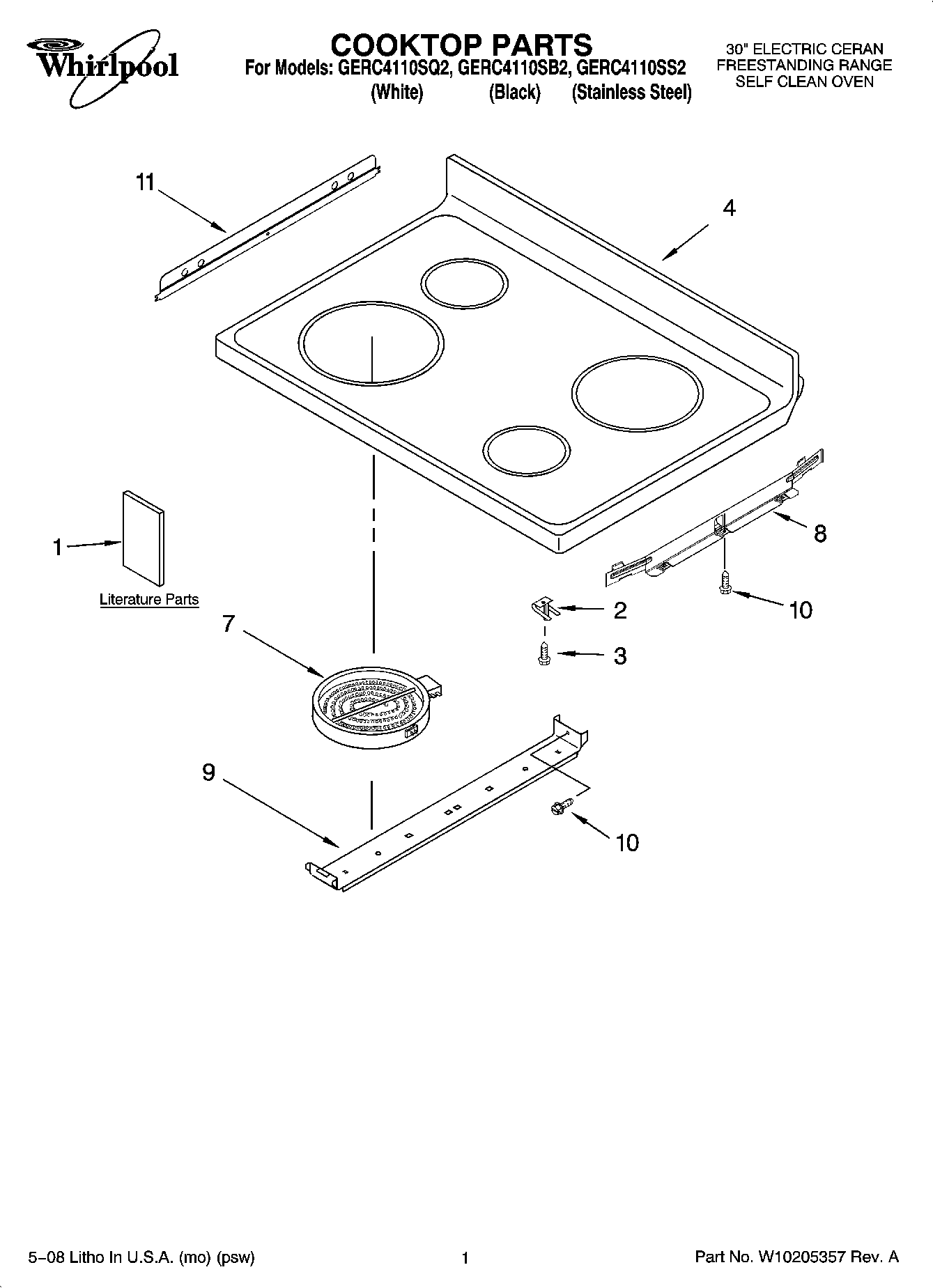

GERC4110SS2 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Tech Sheet (English)
1Owners Manual
1Installation Instructions
1Tech Sheet (French)
1Safer Cooking Tips (French)
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (White)
4Cooktop (Black)
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7W10823692 Whirlpool Dual Radiant Element
7WP9762851 Whirlpool Surface Element
8WPL 8524132
9Bracket, Element ((1))
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
11Heat Shield
