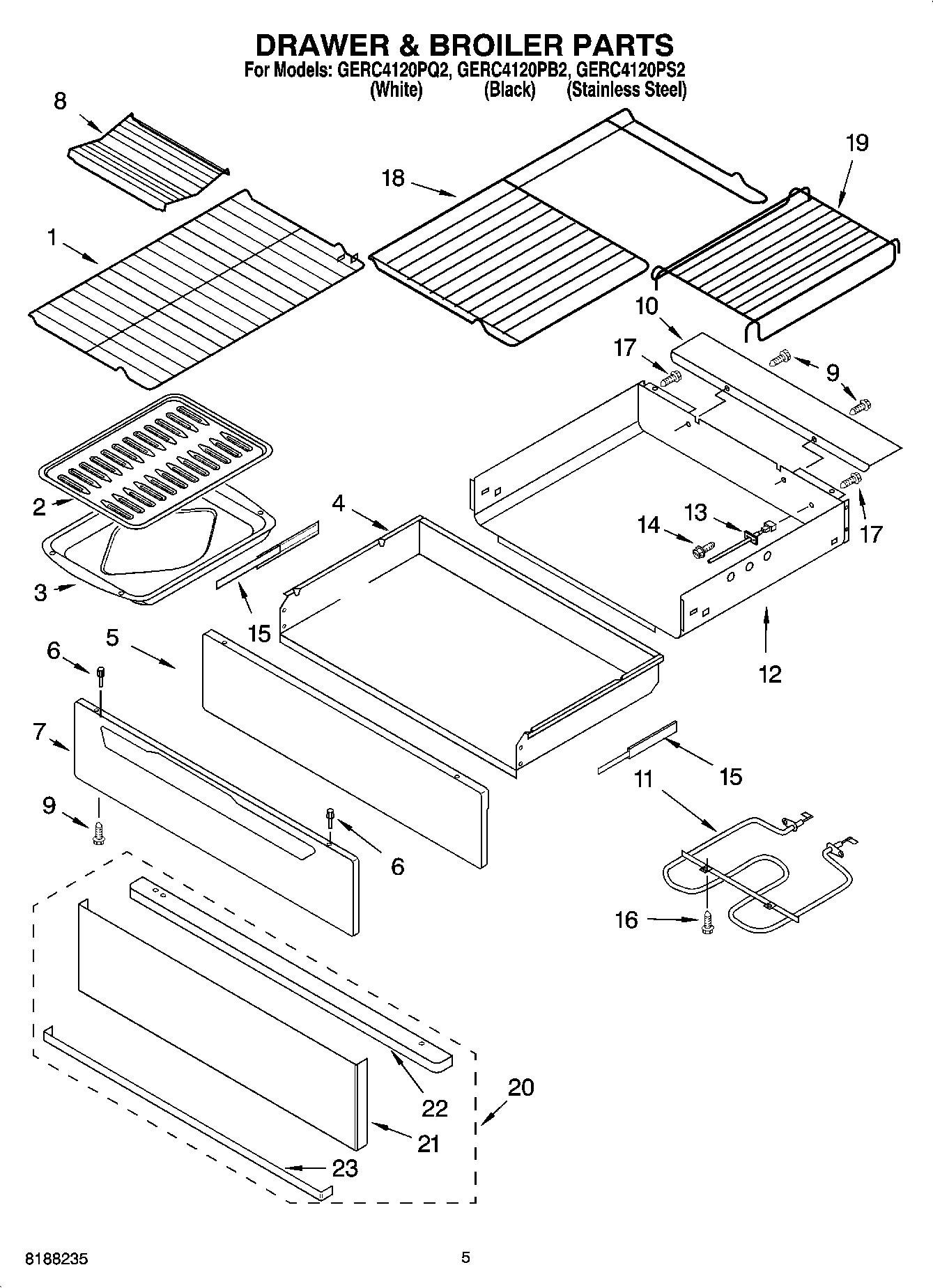

GERC4120PB2 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Warming
5	Panel, Inner
6	WP3196813 Whirlpool Rivet
6	WP3196814 Whirlpool Rivet
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
8	Rack, Roasting
9	WP3400832 Whirlpool Screw
10	Shield, Element
11	Element, Warming
12	Enclosure, Drawer
13	WP8274149 Whirlpool Sensor Assembly
14	WPY706189 Whirlpool Stove Screw
15	Slide, Drawer (Left Hand)
15	Slide, Drawer (Right Hand)
16	WP3196174 Whirlpool Screw
17	SCREW
18	WP8274021 Whirlpool Oven Rack
19	WP8274022 Whirlpool Oven Rack
20	Stainless Model Only
21	Panel, Stainless
22	Handle
23	Bottom, Drawer
