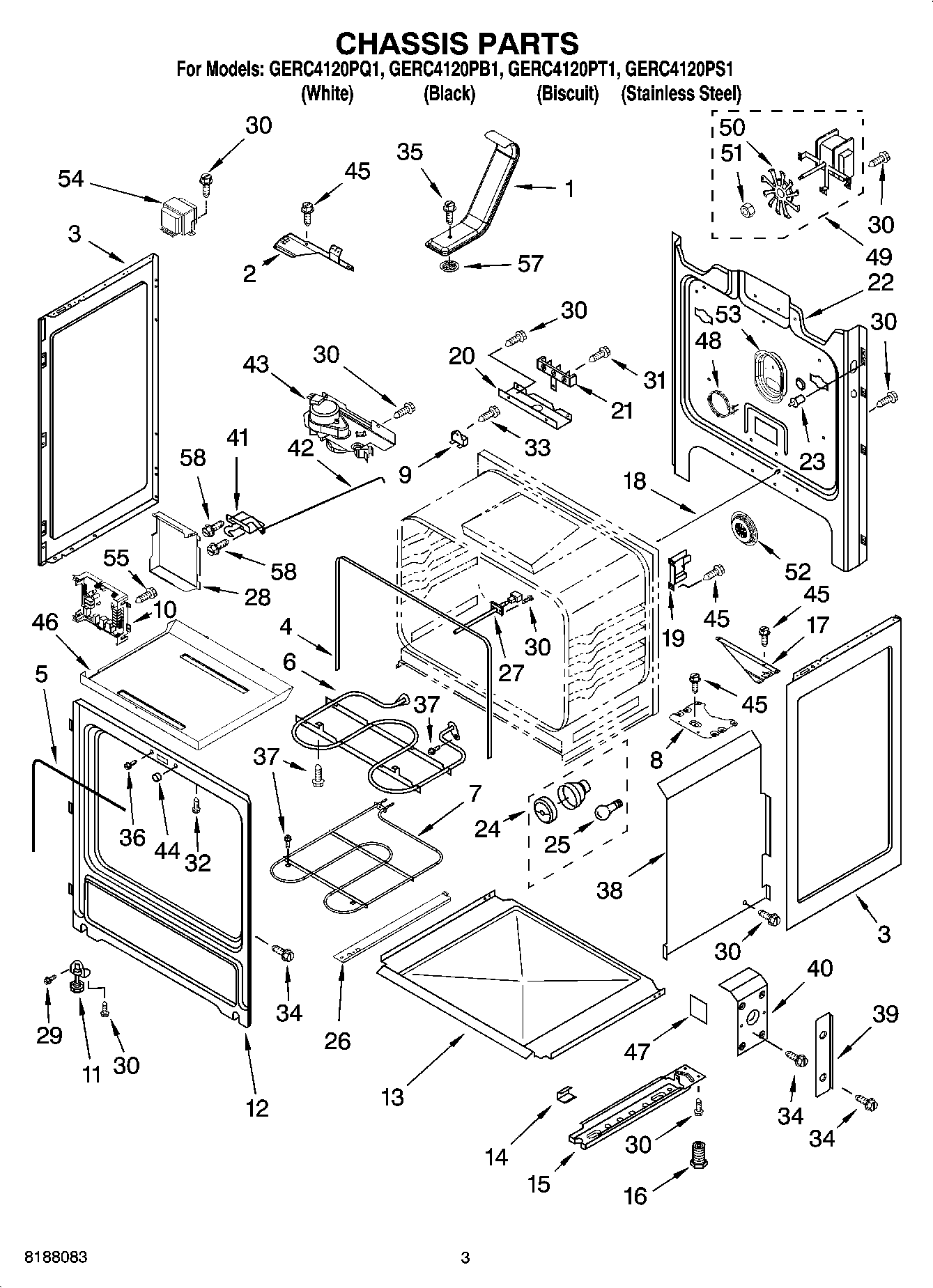

GERC4120PS1 03 – CHASSIS PARTS

Products

PositionProduct
1WPW10134285 Whirlpool Vent Tube
2Support, Corner LR
3W10162246 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4Seal, Oven Flange
5W11542153 Whirlpool Door Gasket
6WP9757341 Whirlpool Broil Element
7WP9755770 Whirlpool Bake Element
8Support, Front (2)
9WP3196548 Whirlpool Thermal Fuse
10Appliance Manager
11WP3196037 Whirlpool Leveling Foot
12Frame, Front
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17Support, Corner RR
189757239 Whirlpool Oven Door Rod
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21WP8203546 Whirlpool Terminal Block
21WP112432 Whirlpool Nut Assembly
22Back, Main
23WP9757262 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
26Cover, Tray
27WPW10181986 Whirlpool Oven Sensor
28Cover
29Screw
30WP4449809 Whirlpool Screw
31WP3400016 Whirlpool Screw Assembly
32SCREW
333196172 Whirlpool Oven Screw
34WP7101P246-60 Whirlpool Screw
35WP489491 Whirlpool Refrigerator Screw
36WP3400832 Whirlpool Screw
37WP3196174 Whirlpool Screw
38Retainer, Side (2)
39Shield, Outer (2)
40Shield, Inner (2)
41WP9761013 Whirlpool Door Latch
42Rod, Latch
43Latch Asy, Rear
44W10877054 Whirlpool Spacer Assembly
45WP3196557 Whirlpool Screw
46Tray, Hidden Bake Element
47W10646923 Whirlpool Insulator
48WP9760769 Whirlpool Element Assembly
49WP9758925 Whirlpool Convection Fan
50WP4452226 Whirlpool Convection Fan
51Nut
52WPW10134124 Whirlpool Fan Cover
53Cover, Convection Fan
54Transformer
55Screw
57Screen – Catalyst
58W11169708 Whirlpool Screw
58WPW10208653 Whirlpool Insulation
58Insulation, Back
588053915 Whirlpool Oven Insulation
58Insulation
