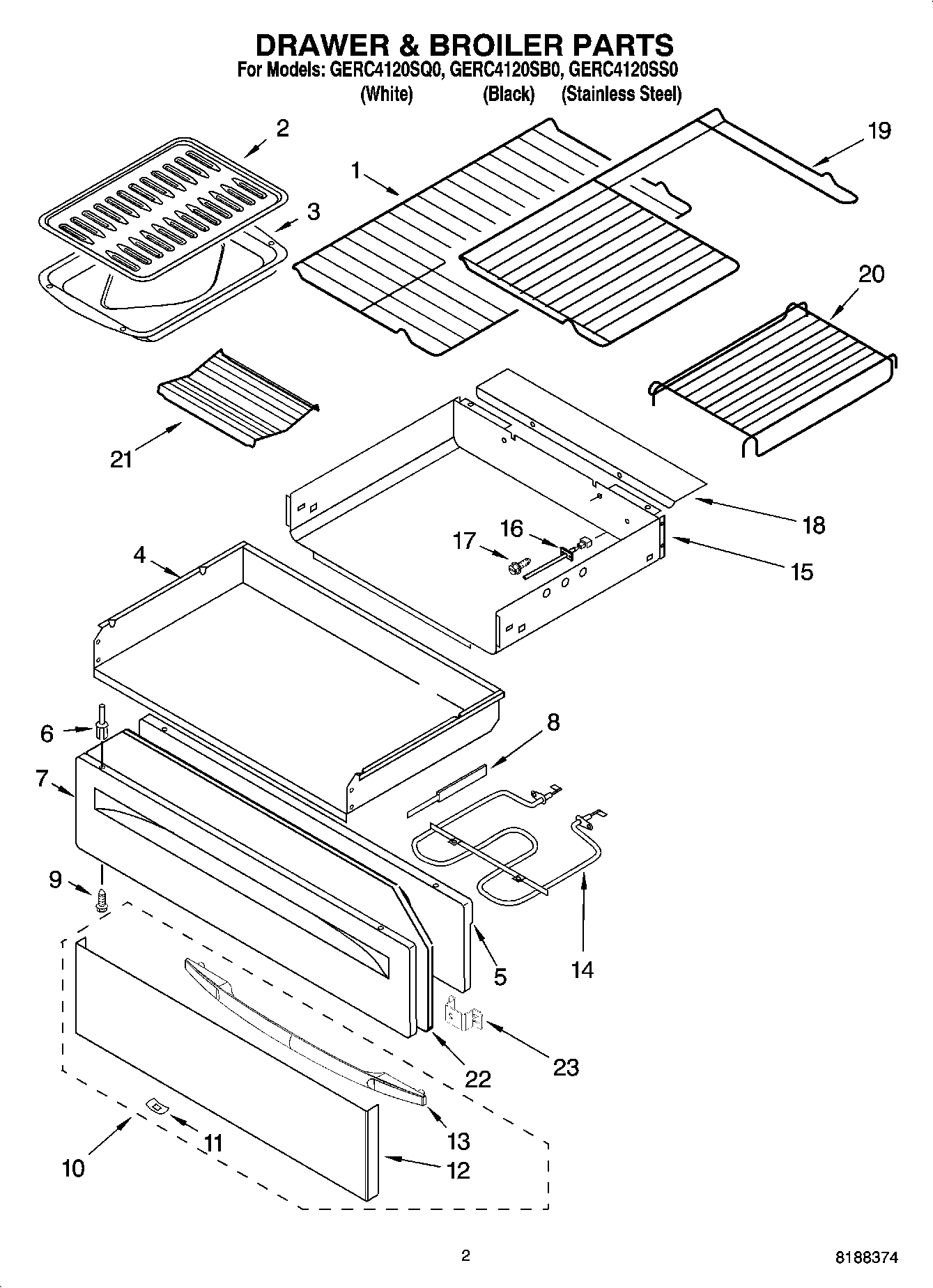

GERC4120SB0 02 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Warming
5	Panel, Inner
6	WP3196813 Whirlpool Rivet
6	WP3196814 Whirlpool Rivet
7	Panel, Drawer Front (White)
7	Panel, Drawer Front (Black)
8	Slide, Drawer (Left Hand)
8	Slide, Drawer (Right Hand)
9	WP3400832 Whirlpool Screw
10	For Stainless Model Only
11	WP9781235 Whirlpool Clip
12	Panel, Stainless
13	Handle, Door (Stainless Steel)
14	Element, Warming
15	Enclosure, Drawer
16	WP8274149 Whirlpool Sensor Assembly
17	WPY706189 Whirlpool Stove Screw
18	Shield, Element
19	WP8274021 Whirlpool Oven Rack
20	WP8274022 Whirlpool Oven Rack
21	Rack, Roasting
22	INSULATION
23	Brkt – Handle
