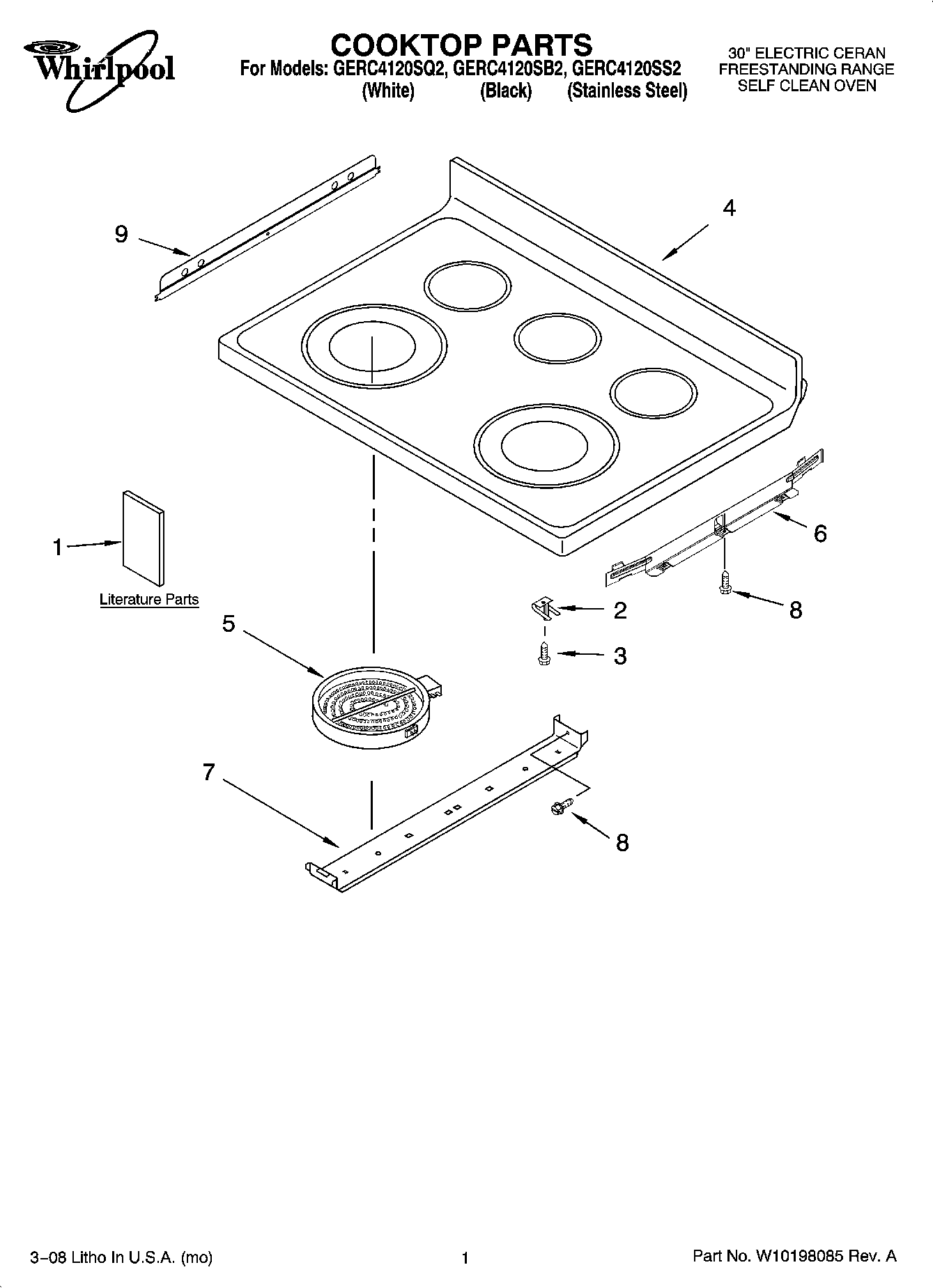

GERC4120SB2 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Tech Sheet (English)
1Owners Manual
1Installation Instructions
1Tech Sheet (French)
1Safer Cooking Tips (French)
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (White)
4Cooktop (Black)
5WP9762851 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
6WPL 8524132
7Bracket, Element ((1))
7Bracket, Element ((2))
8WP3196557 Whirlpool Screw
9Heat Shield
