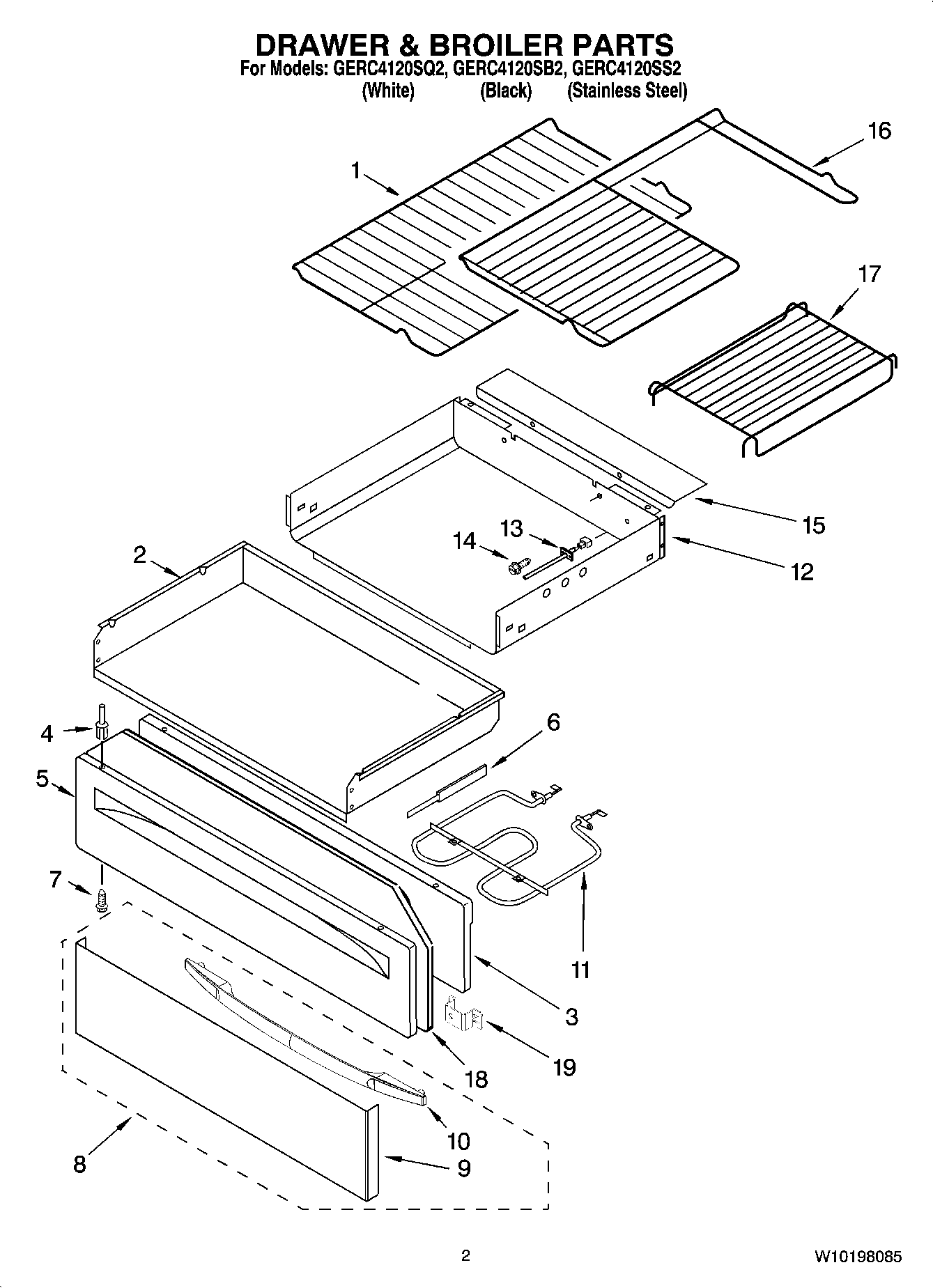

GERC4120SB2 02 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Warming
3	Panel, Inner
4	WP3196813 Whirlpool Rivet
4	WP3196814 Whirlpool Rivet
5	Panel, Drawer Front (Black)
5	Panel, Drawer Front (White)
6	Slide, Drawer (Left Hand)
6	Slide, Drawer (Right Hand)
7	WP3400832 Whirlpool Screw
8	For Stainless Model Only
9	Panel, Stainless
10	Handle, Door (Stainless Steel)
11	Element, Warming
12	Enclosure, Drawer
13	WP8274149 Whirlpool Sensor Assembly
14	WPY706189 Whirlpool Stove Screw
15	Shield, Element
16	WP8274021 Whirlpool Oven Rack
17	WP8274022 Whirlpool Oven Rack
18	Insulation
19	Brkt – Handle
