GERC4120SB2 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in

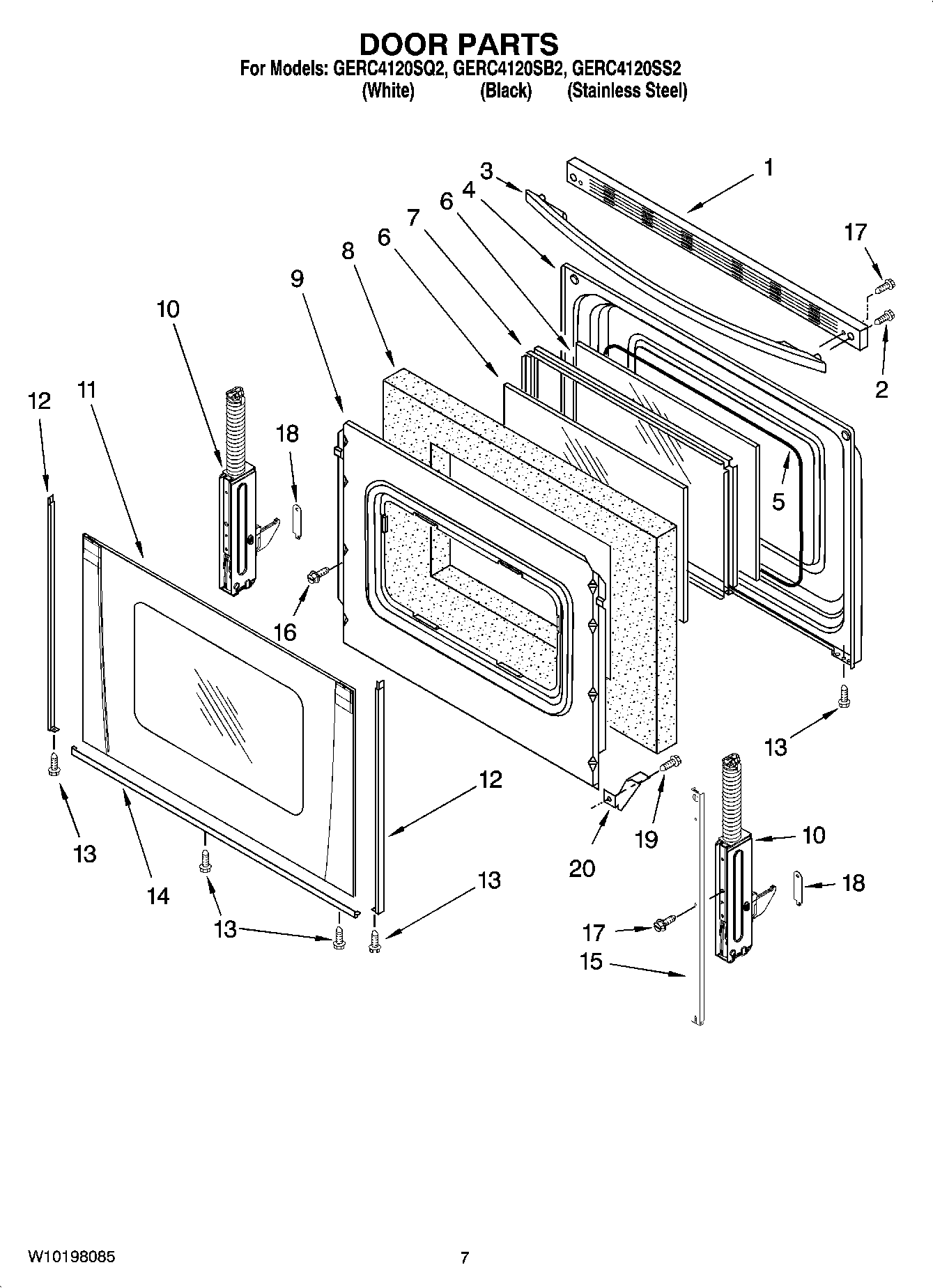

GERC4120SB2 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI148488A
WPL 9756550
WP3196154 Whirlpool Screw Assembly
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
WPL 9756350
WPL 9756779
WPL 8273908
WPL ARI148487A
WPL ARI148486A
WPL ARI148485A
WPL ARI148484A
WPL ARI148483A
WPL 9757939
WPL 9763637
WPL ARI148489A
WPL W10044070
WPL 9762815
WPL 9758192
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
4392899 Whirlpool Biscuit Touch-Up Paint
W11447673 Whirlpool Range Tip Anchor
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
3400964 Whirlpool Oven Clip
1
WP9762391 Whirlpool Door Trim Assembly
1
Trim, Top (White)
1
Trim, Top (Stainless Steel)
2
WP3196164 Whirlpool Screw
3
Handle, Door (Black)
3
Handle, Door (Stainless Steel)
3
Handle, Door (White)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347464 Whirlpool Door Hinge
11
WPW10330077 Whirlpool Door Glass
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10118454 Whirlpool Door Outer Glass White
12
WP8523172 Whirlpool Left Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
WP2179234 Whirlpool Refrigerator Pan Trim
13
W10491985 Whirlpool Screw
14
WP8523175 Whirlpool Door Trim Assembly
14
WP8523177 Whirlpool Door Trim Assembly
15
W11502236 Whirlpool Door Trim
16
WPW10031790 Whirlpool Screw
17
W10777162 Whirlpool Screw
18
9761517 Whirlpool Oven Clip Assembly
19
WP3196175 Whirlpool Screw
20
WP3196794 Whirlpool Glass Bracket
←
