GERP4120SB2 02 – DRAWER & BROILER PARTS

GERP4120SB2 02 – DRAWER & BROILER PARTS

Written by

in

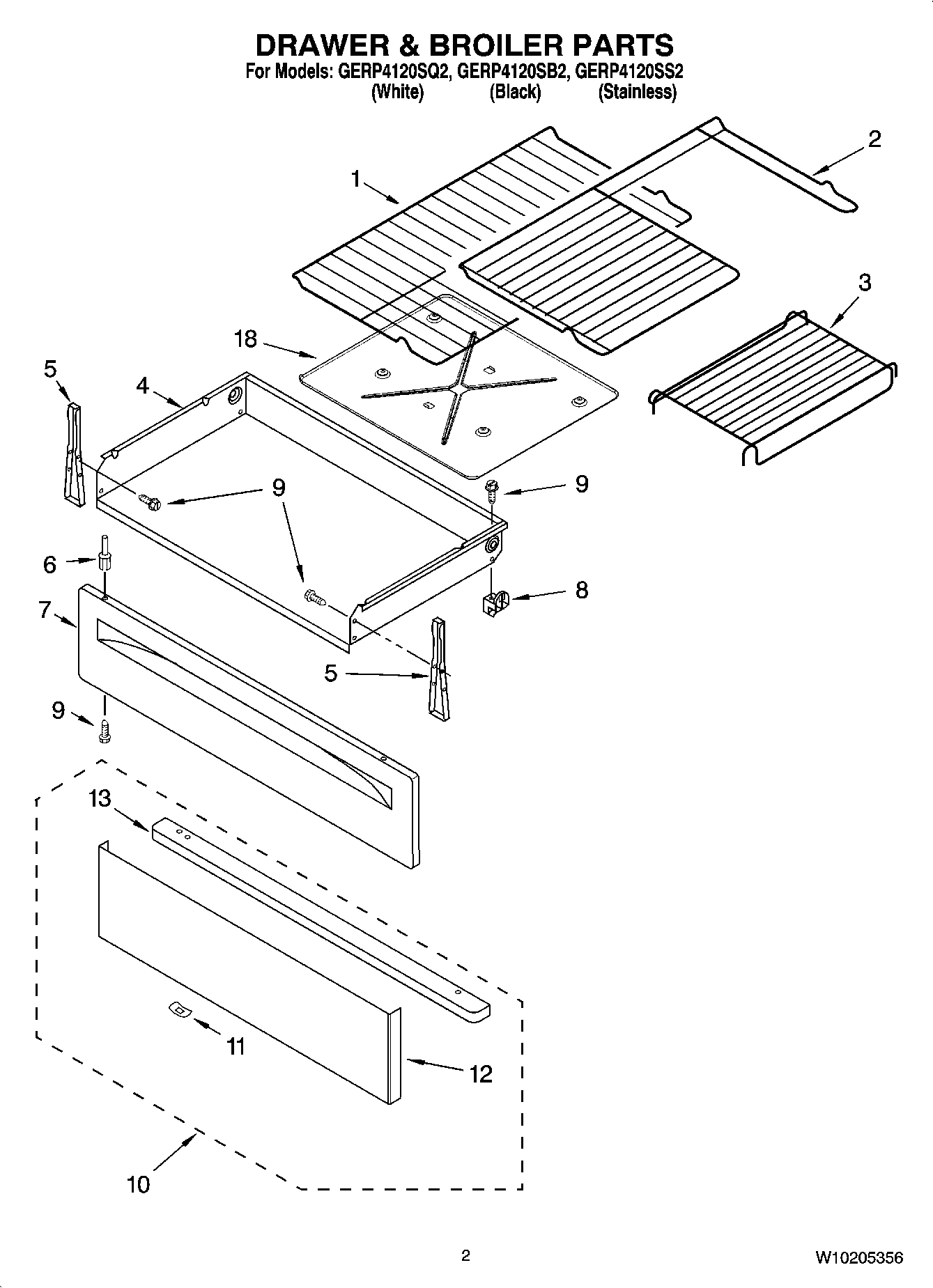

GERP4120SB2 02 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP8274021 Whirlpool Oven Rack
3WP8274022 Whirlpool Oven Rack
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7W11219377 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
8WP8053334 Whirlpool Drawer Glide
9WP3400832 Whirlpool Screw
10For Stl Model Only
11WP9781235 Whirlpool Clip
12Panel, Stainless
13Handle, Drawer
18Heat Shield, Drawer
