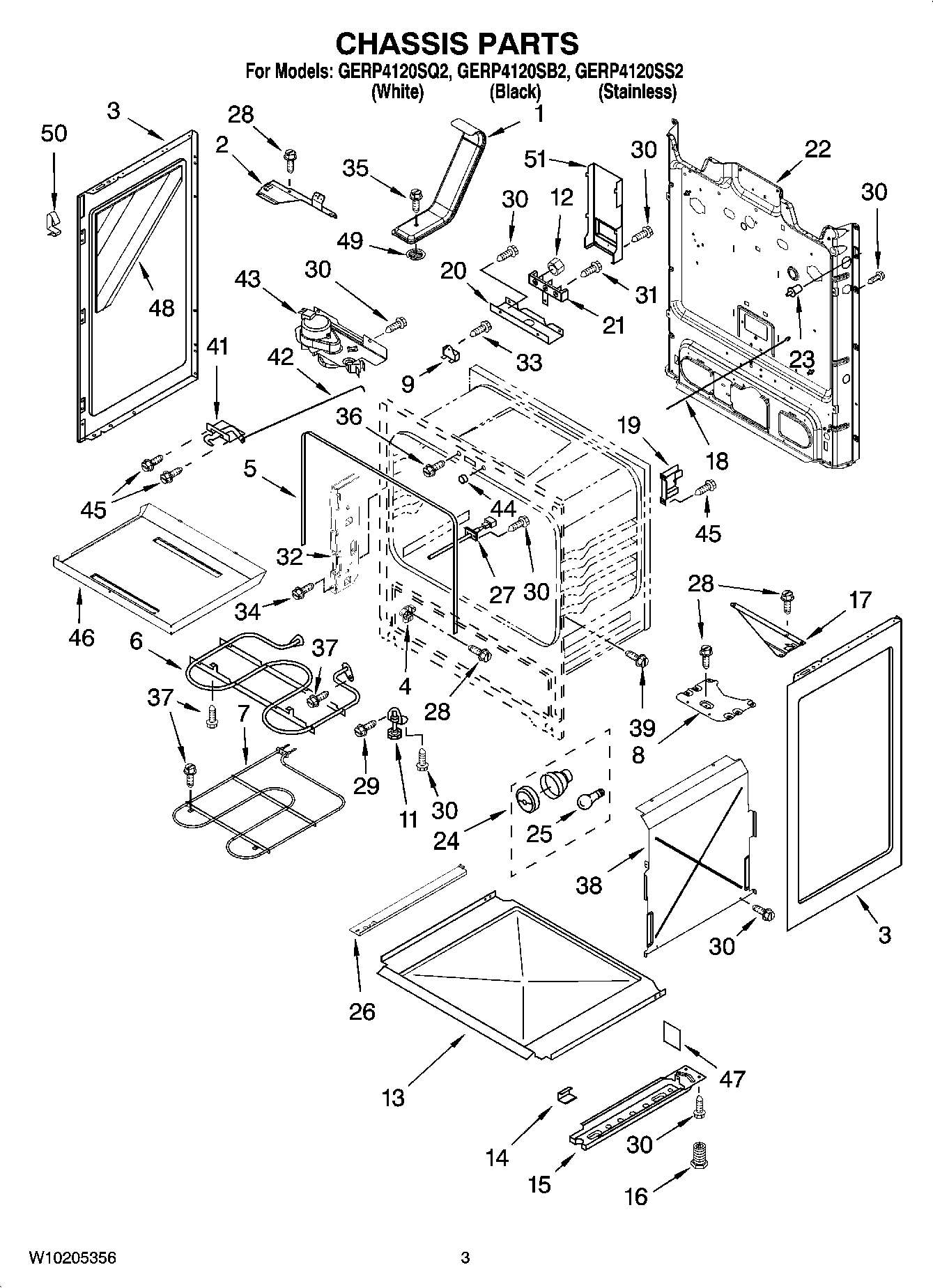

GERP4120SS2 03 – CHASSIS PARTS

GERP4120SS2 03 – CHASSIS PARTS

Written by

in

GERP4120SS2 03 – CHASSIS PARTS

Products

PositionProduct
Insulation, Back
Insulation
8053915 Whirlpool Oven Insulation
WPW10208653 Whirlpool Insulation
1WPW10134285 Whirlpool Vent Tube
2Support, Corner LR
3WPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4WPW10114344 Whirlpool Drawer Glide
5W11542153 Whirlpool Door Gasket
6WP9757341 Whirlpool Broil Element
7WP9755770 Whirlpool Bake Element
8Support, Front (2)
9WP3196548 Whirlpool Thermal Fuse
11WP3196037 Whirlpool Leveling Foot
12WP112432 Whirlpool Nut Assembly
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17Support, Corner RR
189757239 Whirlpool Oven Door Rod
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21Block, Terminal
22Back, Main
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
26Cover, Tray
27WPW10181986 Whirlpool Oven Sensor
28SCREW
29Screw
30WP4449809 Whirlpool Screw
31WP3400016 Whirlpool Screw Assembly
32W10647259 Whirlpool Hinge Receiver
333196172 Whirlpool Oven Screw
34WP7101P246-60 Whirlpool Screw
35WP489491 Whirlpool Refrigerator Screw
36WP3400832 Whirlpool Screw
37WP3196174 Whirlpool Screw
38W10450380 Whirlpool Retainer
39WPW10067840 Whirlpool Screw
41WP9761013 Whirlpool Door Latch
42Rod, Latch
43WPW10107840 Whirlpool Door Latch
44W10877054 Whirlpool Spacer Assembly
45W11169708 Whirlpool Screw
46Tray, Hidden Bake Element
47W10646923 Whirlpool Insulator
48Insulation
499761301 Whirlpool Oven Screen
50Clip, Mounting
51WPW10326122 Whirlpool Black Cover
