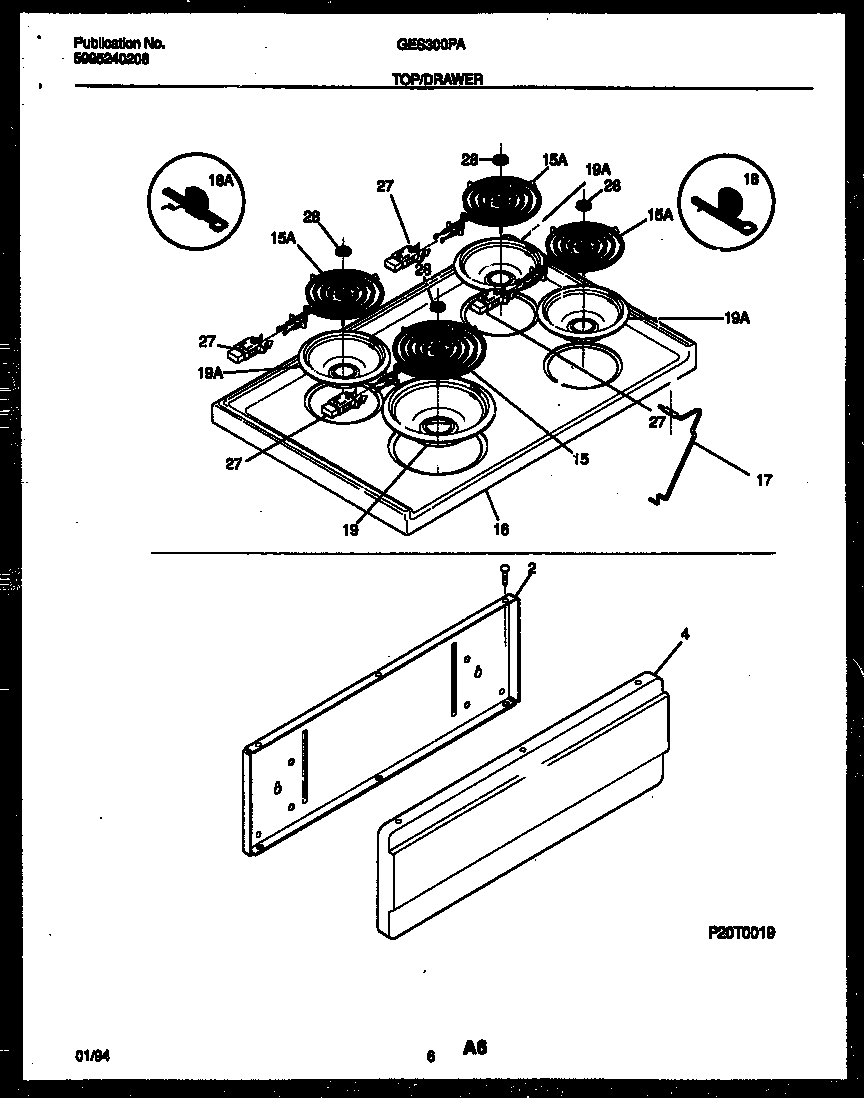

GES300PADA 04 – COOKTOP AND DRAWER PARTS

GES300PADA 04 – COOKTOP AND DRAWER PARTS

Written by

in

GES300PADA 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
2SHIELD-PNL
2AWCI 5303281584
4PNL – DRAWER (ALMD)
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 3051380
17ROD-MAIN SUPPORT (2)
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
