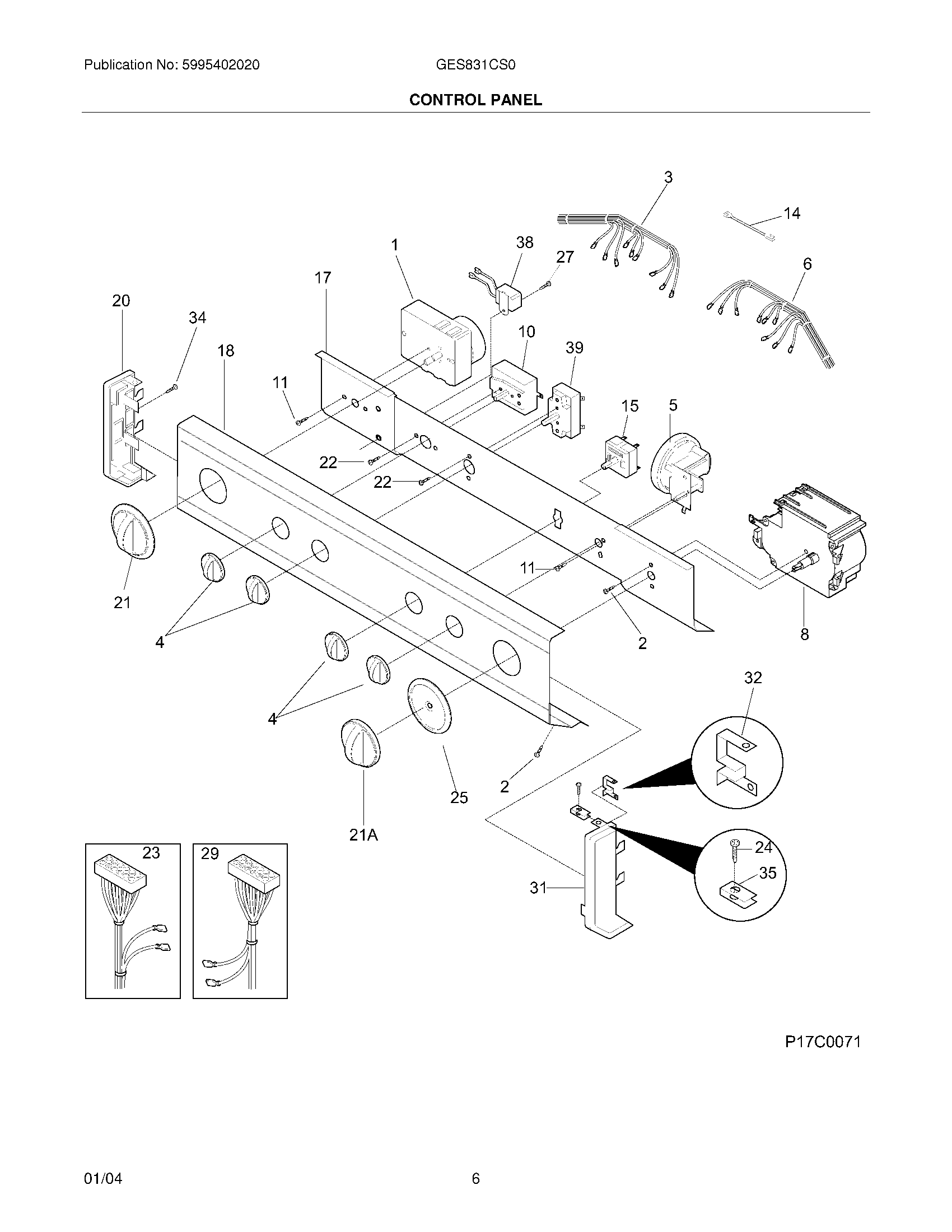

GES831CS0 07 – CONTROL PANEL

Products

Position	Product
NI	5303161300 Frigidaire Strap
NI	134101400 Frigidaire Dryer Kit Terminal Block
NI	WCI 5303208586
1	5303297177 Frigidaire Dryer Control Timer
2	131168200 Frigidaire Dryer Screw
3	WCI 131946400
4	131858004 Frigidaire Control Knob, White
5	134422700 Frigidaire Switch
6	WCI 134122200
8	WASHER TIMER
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
15	WCI 131620800
17	WCI 134135100
18	WCI 134231500
20	WCI 131288101
21A	Knob,washer timer ,white/dark gray
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 134119400
24	134156200 Frigidaire Screw
25	Pointer,timer ,white ,gray indicator
27	131892100 Frigidaire Screw
29	WCI 134113400
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	WCI 131753000
