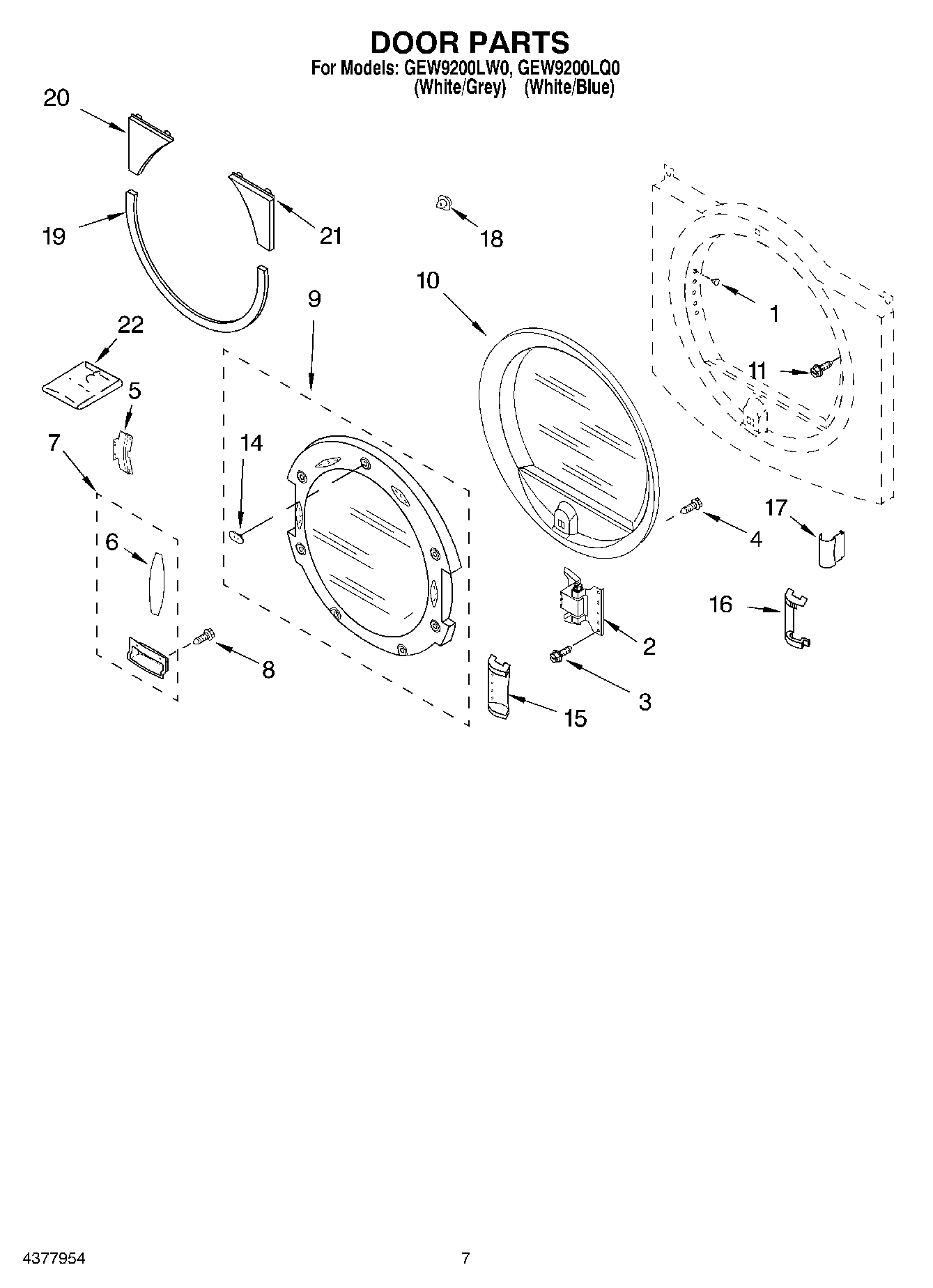

| 1 | WP3404413 Whirlpool Plug |
| 2 | Door Hinge Assembly |
| 3 | Screw, 10-32 x 1/2 |
| 4 | SCREW |
| 5 | Bracket, Handle |
| 6 | Pad, Door Handle |
| 7 | Handle, Door Assembly (LH) (Blue) |
| 7 | Handle, Door Assembly (LH) (Blue) |
| 7 | Handle, Door Assembly (LH) (Platinum) |
| 7 | Handle, Door Assembly (LH) (Platinum) |
| 8 | WP308685 Whirlpool Microwave Screw |
| 9 | Door Assembly (Outer) (Blue) |
| 9 | Door Assembly (Outer) (Grey) |
| 10 | Door Assembly (Inner) |
| 11 | WP355515 Whirlpool Screw |
| 14 | Badge, Assembly |
| 15 | Filler Handle (LH) (Platinum) |
| 15 | Filler Handle (LH) (Blue) |
| 15 | Filler Handle (LH) (Platinum) |
| 15 | Filler Handle (LH) (Blue) |
| 16 | WPL 8528293 |
| 16 | WPL 8528292 |
| 16 | WPL 8528291 |
| 16 | WPL 8528290 |
| 17 | WPL 8528295 |
| 17 | WPL 8528294 |
| 18 | Clip, Trim Panel |
| 19 | Trim & Clip Assembly (Lower) (Grey) |
| 19 | Trim & Clip Assembly (Lower) (Blue) |
| 20 | WPL 8529525 |
| 20 | WPL 8529526 |
| 21 | WPL 8529527 |
| 21 | WPL 8529528 |
| 22 | WPL 3979303 |
| 22 | WPL 3979304 |
