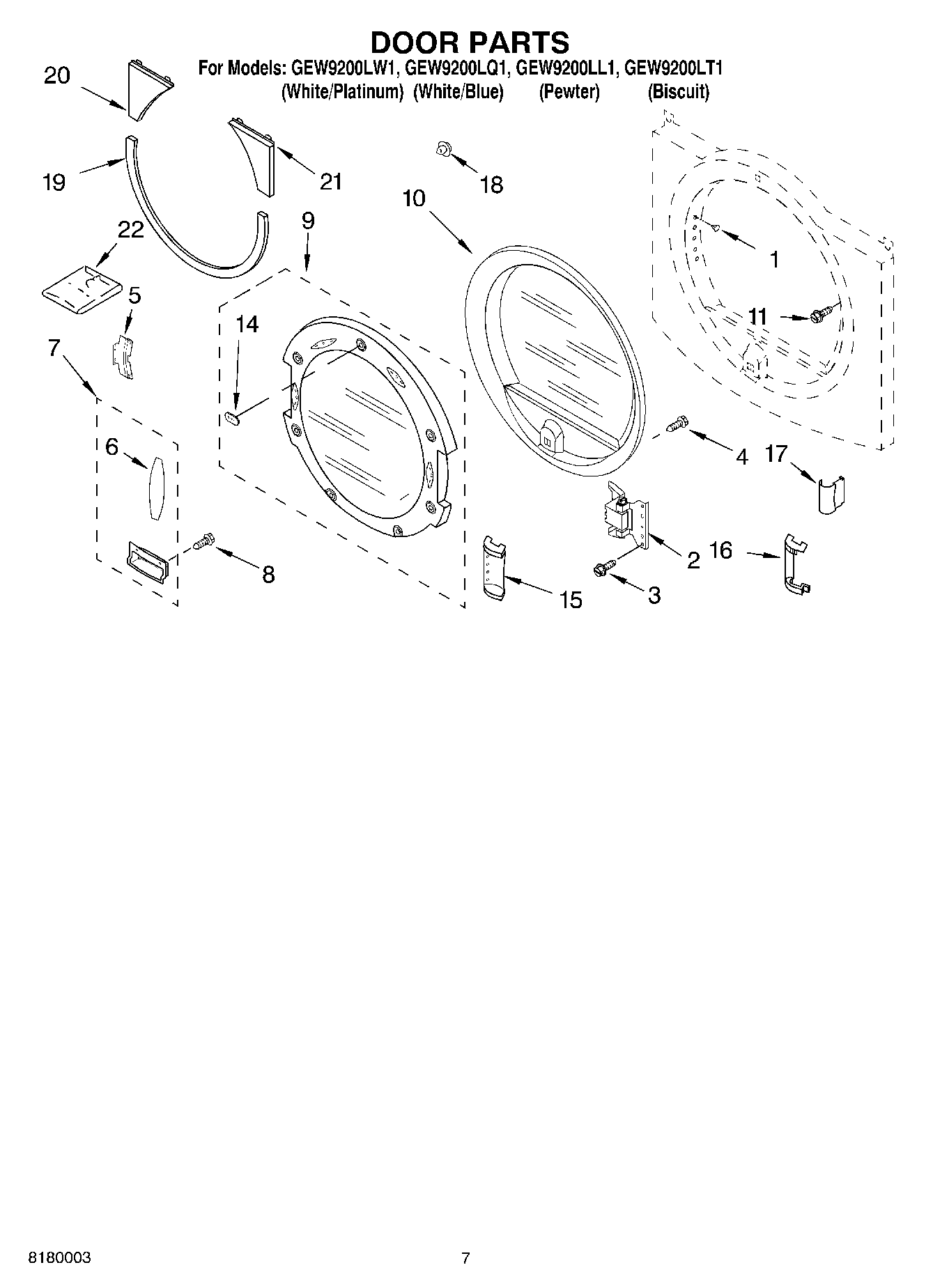

GEW9200LQ1 04 – DOOR PARTS

Products

Position	Product
1	Plug, Hole (5)
1	WP3404413 Whirlpool Plug
1	Plug, Hinge Hole (4) (Biscuit)
2	Door Hinge Assembly
3	Screw, 10-32 x 1/2
4	SCREW
5	Bracket, Handle
6	Pad, Door Handle
7	Handle, Door Assembly (LH) (Blue)
7	Handle, Door Assembly (LH) (Platinum)
7	Handle, Door Assembly (LH) (Blue)
7	Handle, Door Assembly (LH) (Platinum)
7	Handle, Door Assembly (LH) (Pewter)
7	Handle, Door Assembly (LH) (Pewter)
7	Handle, Door Assembly (LH) (Biscuit)
7	Handle, Door Assembly (LH) (Biscuit Handle, Door Assembly (RH))
8	WP308685 Whirlpool Microwave Screw
9	Door Assembly (Outer) (Platinum)
9	Door Assembly (Outer) (Blue)
9	Door Assembly (Outer) (Pewter)
9	Door Assembly (Outer) (Biscuit)
10	Door Assembly (Inner)
11	WP355515 Whirlpool Screw
14	Badge, Assembly
15	Filler Handle (LH) (Platinum)
15	Filler Handle (LH) (Blue)
15	Filler Handle (LH) (Platinum)
15	Filler Handle (LH) (Blue)
15	Filler Handle (LH) (Pewter)
15	Filler Handle (LH) (Pewter)
15	Filler Handle (LH) (Biscuit)
15	Filler Handle (LH) (Biscuit Filler Handle (RH))
16	WPL 8528293
16	WPL 8528292
16	WPL 8528291
16	WPL 8528290
16	WPL 3980100
16	WPL 3980083
16	Cover-Hinge, Stationary (LH) (
16	Cover-Hinge, Stationary (LH) (Biscuit Cover-Hinge, Stationary (RH))
17	WPL 8528295
17	WPL 8528294
17	WPL 3980084
17	WPL 3979779
18	Clip, Trim Panel
19	WPL 8533769
19	WPL 8533768
19	WPL 8533767
19	WPL 8533766
20	WPL 3979783
20	WPL 3980088
20	WPL 8529525
20	WPL 8529526
21	WPL 8529528
21	WPL 8529527
21	WPL 3980090
21	WPL 3979784
22	8530072 Whirlpool Door Kit
22	WPL 3979303
22	WPL 3979304
22	WPL 3979770
