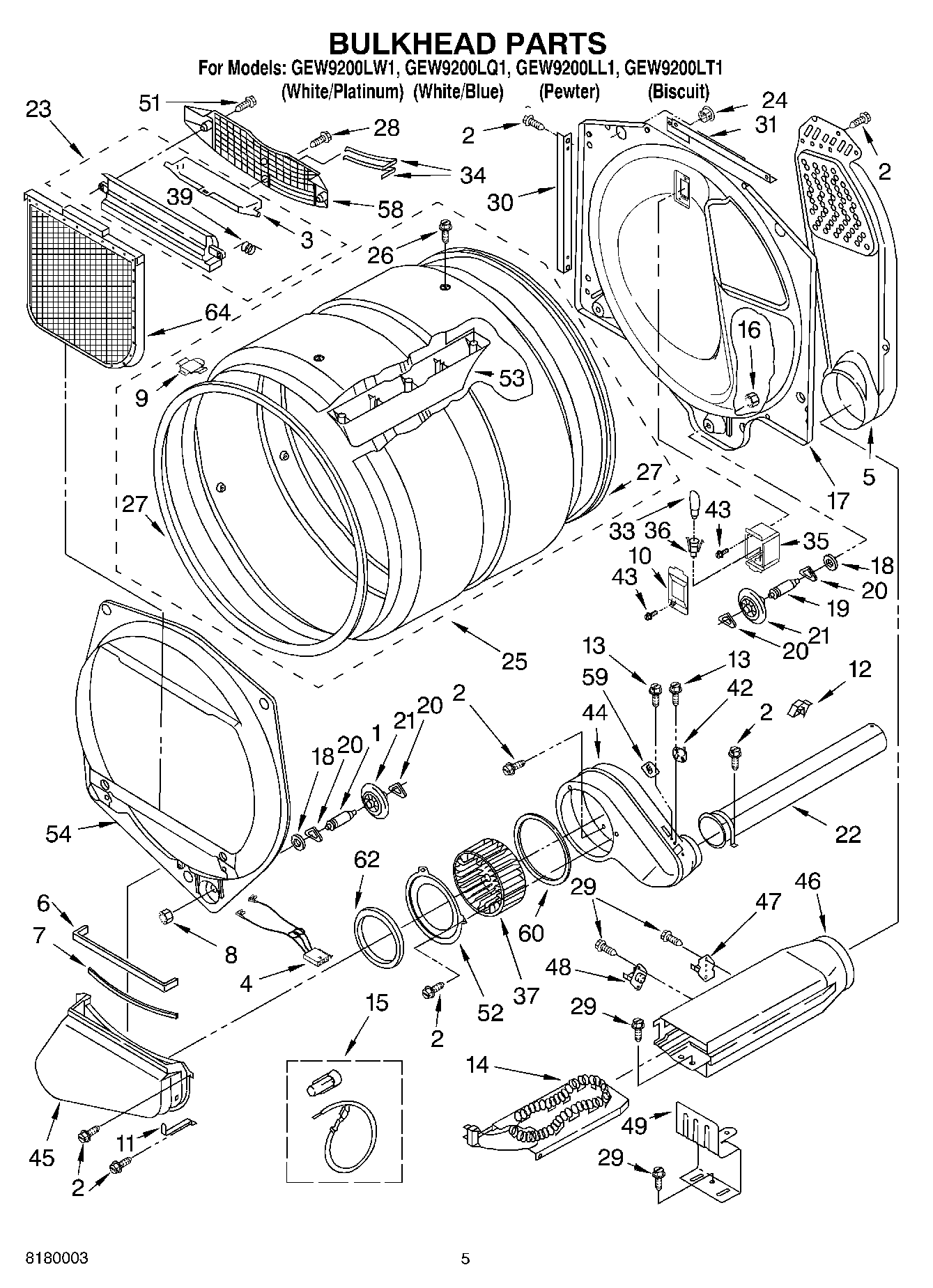

GEW9200LT1 03 – BULKHEAD PARTS OPTIONAL PARTS (NOT INCLUDED)

GEW9200LT1 03 – BULKHEAD PARTS OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GEW9200LT1 03 – BULKHEAD PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
3W11222846 Whirlpool Door
4WP3406653 Whirlpool Wire Harness
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WP3359452 Whirlpool Nut
98066086 Whirlpool Plug
10W11226088 Whirlpool Lens Assembly
11Bracket, Lint Duct
12WP3388229 Whirlpool Dryer Spring Clip
13WPW10139210 Whirlpool Screw
14WP3387747 Whirlpool Dryer Heating Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16Nut, 3/8-16 (L.H.)
17W11299301 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22279936 Whirlpool Exhaust Pipe
23W11129408 Whirlpool Out Housing
248529007 Whirlpool Plug
25W10545924 Whirlpool Drum Assembly
26WPW10109200 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
29WP90767 Whirlpool Screw
30Channel Bracket, Rear Bulkhead (2)
31W10118337 Whirlpool Bracket Assembly
33WP22002263 Whirlpool Dryer 10W Light Bulb
34WP3387223 Whirlpool Electrode Assembly
353977373 Whirlpool Bracket
36W11700522 Whirlpool Socket
37WP697772 Whirlpool Dryer Blower Wheel
39WP3394986 Whirlpool Spring
42WP8577274 Whirlpool Dryer Thermistor
44W10888146 Whirlpool Housing
45Lint Duct Assembly
46W10802681 Whirlpool Box Assembly
47279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48THRMST-FIX
498066099 Whirlpool Bracket
51WP3387230 Whirlpool Screw
52279780 Whirlpool Plate Cover
53WPW10113136 Whirlpool Drum Baffle
54Bulkhead, Front
58W11086603 Whirlpool Dryer Link Screen Air Grille
59WP3392519 Whirlpool Dryer Thermal Fuse
60WP697770 Whirlpool Blower Cover Plate Seal
62WP8566209 Whirlpool Seal
64350938 Whirlpool Spray Gun
64WP4396174 Whirlpool Touch-Up Paint
64799344 Whirlpool Refrigerator Paint
648541503 Whirlpool Stacking Kit
64PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
6472017 Whirlpool Appliance Touch-Up Paint White
644392899 Whirlpool Biscuit Touch-Up Paint
644392901 Whirlpool Biscuit Spray Paint
64ACCESSORY PARTS, KIT, HOLD DOWN
64PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
644392067 Whirlpool Dryer Repair Kit
64350930 Whirlpool White Spray Paint
64W10120998 Whirlpool Dryer Lint Screen Filter
64WPL ARI148600A
