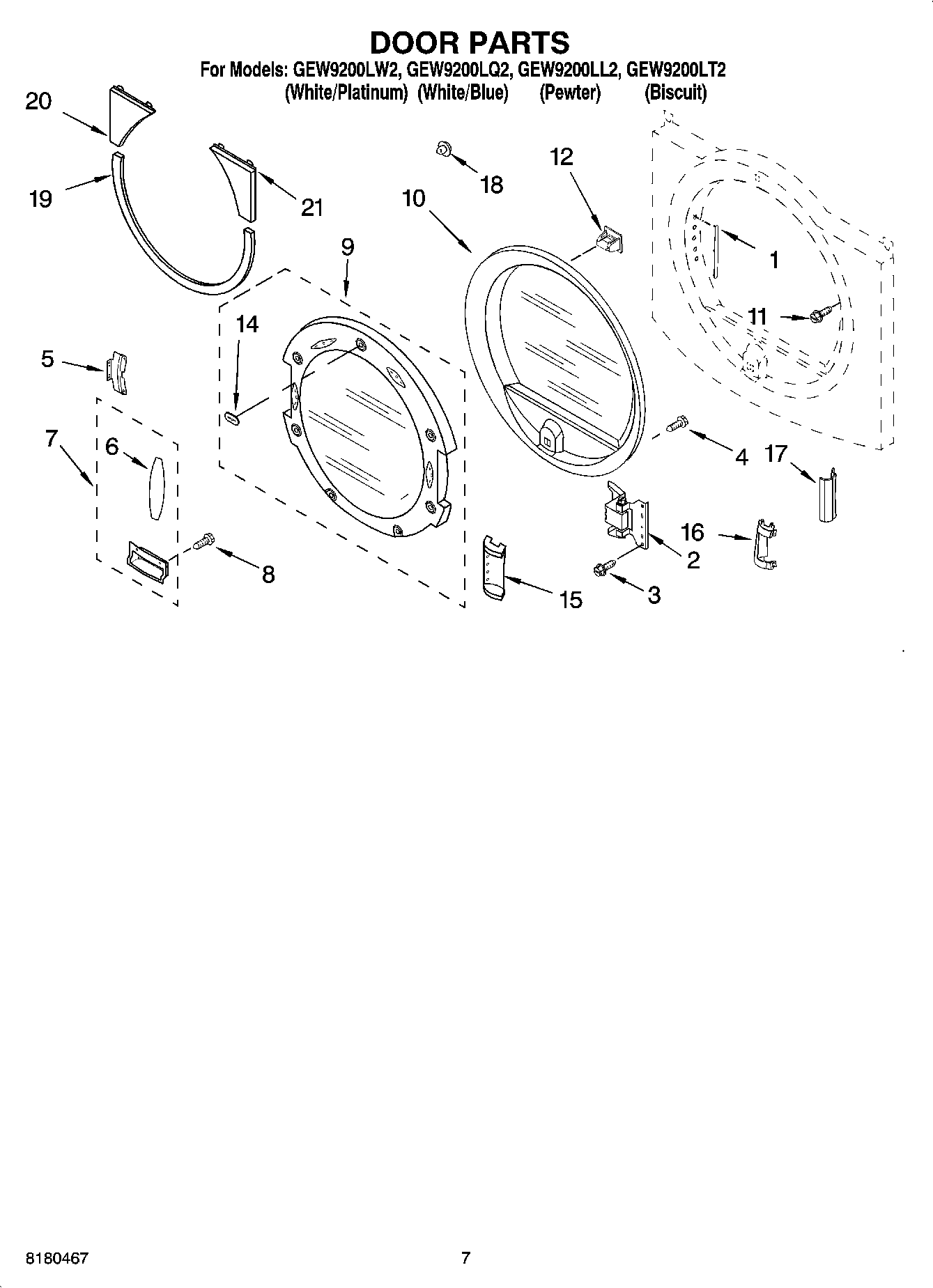

GEW9200LW2 04 – DOOR PARTS

GEW9200LW2 04 – DOOR PARTS

Written by

in

GEW9200LW2 04 – DOOR PARTS

Products

PositionProduct
1Plug, Strip
2280200 Whirlpool Hinge Assembly
3Screw, 10-32 x 1/2
4SCREW
5Bracket, Handle
6Pad, Door Handle
7Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Biscuit)
7Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Platinum)
7Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Blue)
7Handle, Door Assembly (LH) (Platinum)
7Handle, Door Assembly (LH) (Blue)
7Handle, Door Assembly (LH) (Pewter)
7Handle, Door Assembly (LH) (Biscuit Handle, Door Assembly (RH))
7Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Pewter)
8WP308685 Whirlpool Microwave Screw
9Door Assembly (Outer) (Platinum)
9Door Assembly (Outer) (Blue)
9Door Assembly (Outer) (Pewter)
9Door Assembly (Outer) (Biscuit)
10Inner Door Assembly (Includes Illus. 5, 8 & 20)
11WP355515 Whirlpool Screw
12WP3389441 Whirlpool Door Catch
14Badge, Assembly
15Filler Handle (LH) (Blue)
15Filler Handle (LH) (Platinum)
15Filler Handle (LH) (Platinum)
15Filler Handle (LH) (Blue)
15Filler Handle (LH) (Pewter)
15Filler Handle (LH) (Pewter)
15Filler Handle (LH) (Biscuit)
15Filler Handle (LH) (Biscuit Filler Handle (RH))
16WPL 8559719
16WPL 8559718
16WPL 8559717
16WPL 8559716
16WPL 8559715
16WPL 8559714
16WPL 8559713
16WPL 8559712
17WPL 8559724
17WPL 8559723
17WPL 8559722
17WPL 8559549
18Clip, Trim Panel
19WPL 8558682
19WPL 8558683
19WPL 8558684
19WPL 8558685
20WPL 8558692
20WPL 8558690
20WPL 8558687
20WPL 8558686
21WPL 8558688
21WPL 8558689
21WPL 8558691
21WPL 8558693
