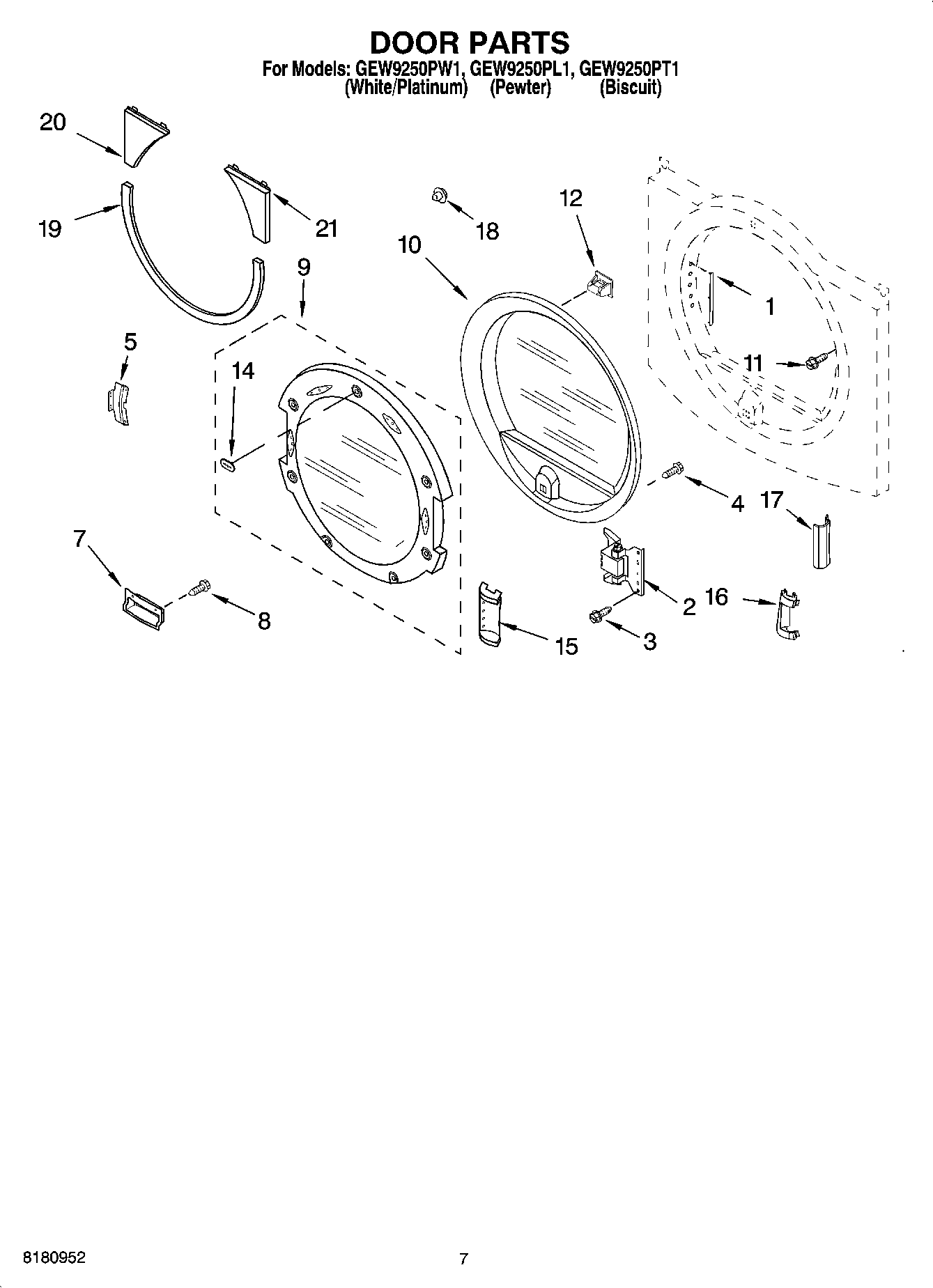

GEW9250PL1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

GEW9250PL1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GEW9250PL1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
Platinum
Biscuit
8541503 Whirlpool Stacking Kit
ACCESSORY PARTS, KIT, HOLD DOWN
4392067 Whirlpool Dryer Repair Kit
WPL ARI148617A
8530072 Whirlpool Door Kit
WP4396174 Whirlpool Touch-Up Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
1Plug, Strip
2280200 Whirlpool Hinge Assembly
3Screw, 10-32 x 3/8
4SCREW
5Bracket, Handle
7Handle, Door Assembly (LH) (Platinum)
7Handle, Door Assembly (LH) (Biscuit)
7Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Pewter)
7Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Biscuit)
7Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Platinum)
7Handle, Door Assembly (LH) (Pewter)
8WP308685 Whirlpool Microwave Screw
9Door Assembly (Outer) (Pewter)
9Door Assembly (Outer) (Biscuit)
9Door Assembly (Outer) (Platinum)
10Inner Door Assembly (Includes Illus. 5, 8 & 20)
11WP355515 Whirlpool Screw
12WP3389441 Whirlpool Door Catch
14Badge, Assembly
15Filler Handle (LH) (Biscuit Filler Handle (RH))
15Filler Handle (LH) (Platinum)
15Filler Handle (LH) (Biscuit)
15Filler Handle (LH) (Pewter)
15Filler Handle (LH) (Platinum)
15Filler Handle (LH) (Pewter)
16WPL 8559713
16WPL 8559719
16WPL 8559718
16WPL 8559712
16WPL 8559716
16WPL 8559717
17WPL 8559723
17WPL 8559724
17WPL 8559722
18Clip, Trim Panel
19WPL 8558683
19WPL 8558685
19WPL 8558684
20WPL 8558692
20WPL 8558687
20WPL 8558690
21WPL 8558689
21WPL 8558691
21WPL 8558693
