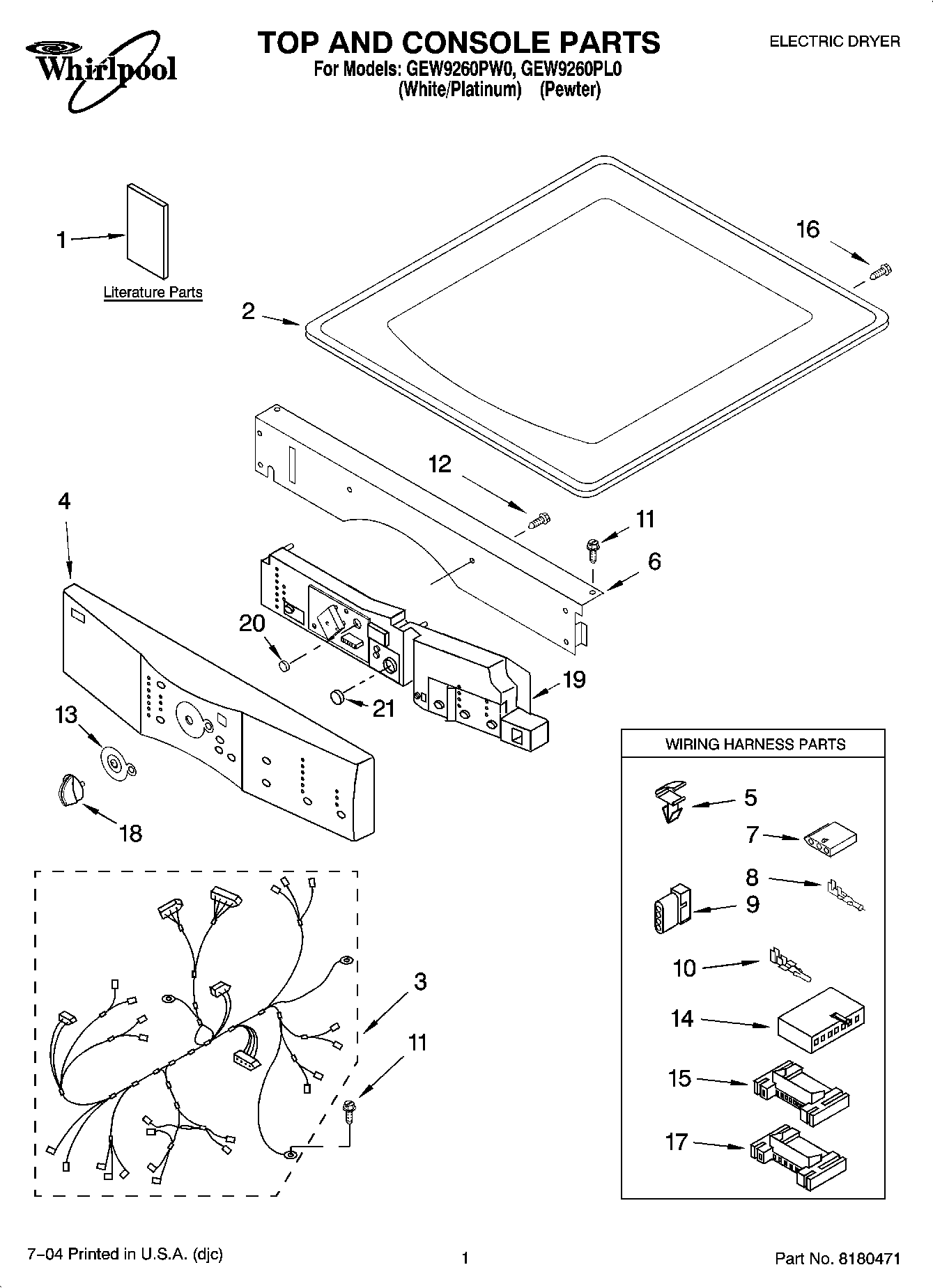

GEW9260PL0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Tech Sheet
1	Use & Care Guide
2	Top
2	Top (White)
3	Harness, Main
4	Panel, Console (Platinum)
4	Panel, Console (Pewter)
5	WP3394427 Whirlpool Clip
6	Bracket, Console
7	353424 Whirlpool Connector
8	WP94614 Whirlpool Terminal
9	3936144 Whirlpool Connector
10	WP596797 Whirlpool Terminal
11	WP488729 Whirlpool Refrigerator Door Screw
12	WP488787 Whirlpool Refrigerator Screw
13	Bezel, Cycle
14	3936150 Whirlpool Connector
15	3395683 Whirlpool Connector
16	Screw, 8-18 x 1/2
17	2203186 Whirlpool Connector
18	WP8181859 Whirlpool Knob
18	WP8182050 Whirlpool Knob
19	User Interface (Pewter)
19	User Interface (Platinum)
20	Button, Start
21	Button, Pause/Cancel
