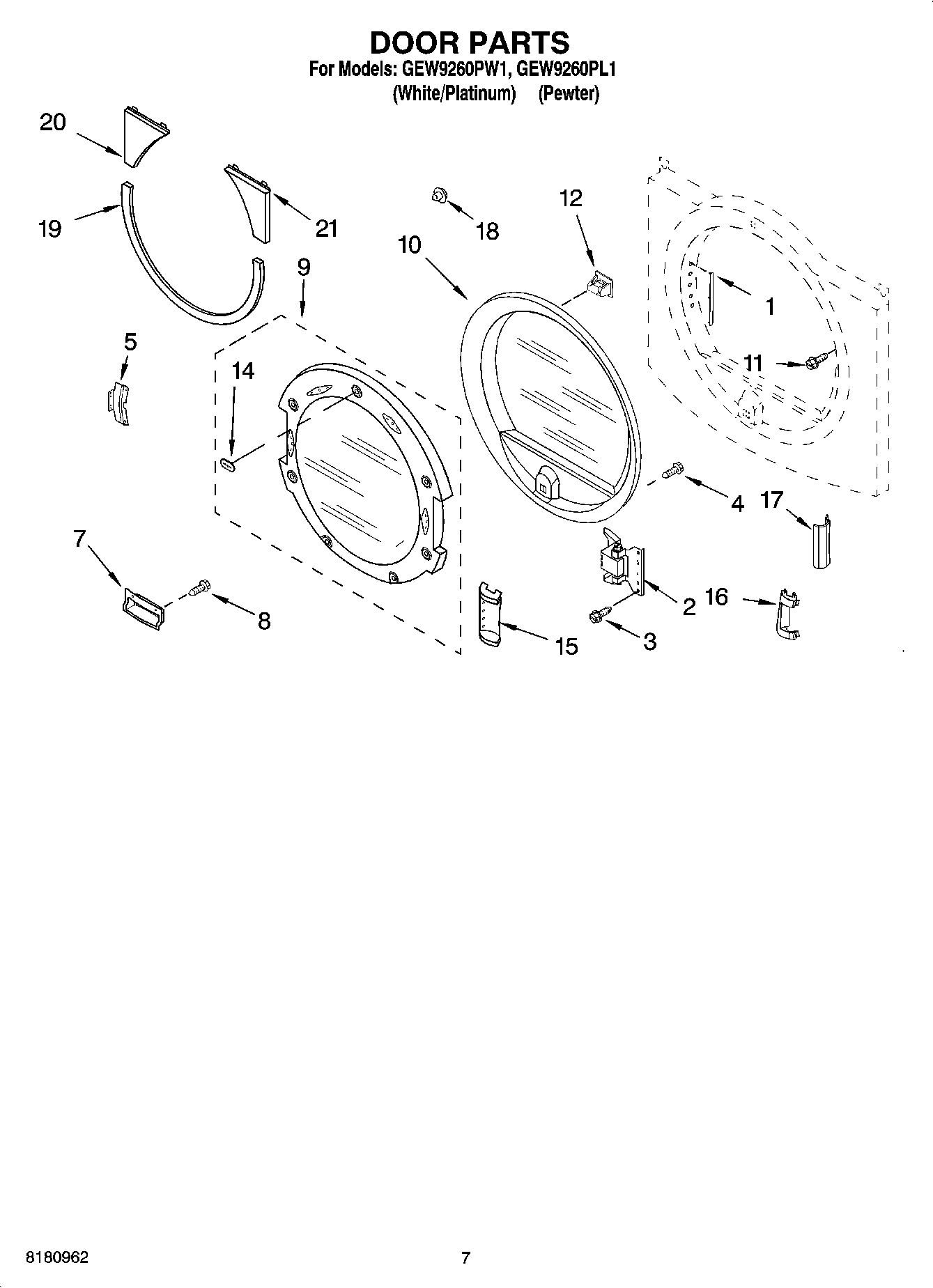

GEW9260PW1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)admin2025-04-26T12:22:13+00:00GEW9260PW1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter) |
| Platinum |
| ACCESSORY PARTS, KIT, HOLD DOWN |
| 4392067 Whirlpool Dryer Repair Kit |
| WPL ARI148640A |
| 8541503 Whirlpool Stacking Kit |
| 8530072 Whirlpool Door Kit |
| 799344 Whirlpool Refrigerator Paint |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 350938 Whirlpool Spray Gun |
| WP4396174 Whirlpool Touch-Up Paint |
| 1 | Plug, Strip |
| 2 | 280200 Whirlpool Hinge Assembly |
| 3 | Screw, 10-32 x 3/8 |
| 4 | SCREW |
| 5 | Bracket, Handle |
| 7 | Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Pewter) |
| 7 | Handle, Door Assembly (LH) (Platinum) |
| 7 | Handle, Door Assembly (LH) (Pewter) |
| 7 | Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Platinum) |
| 8 | WP308685 Whirlpool Microwave Screw |
| 9 | Door Assembly (Outer) (Platinum) |
| 9 | Door Assembly (Outer) (Pewter) |
| 10 | Inner Door Assembly (Includes Illus. 5, 8 & 20) |
| 11 | WP355515 Whirlpool Screw |
| 12 | WP3389441 Whirlpool Door Catch |
| 14 | Badge, Assembly |
| 15 | Filler Handle (LH) (Platinum) |
| 15 | Filler Handle (LH) (Pewter) |
| 15 | Filler Handle (LH) (Platinum) |
| 15 | Filler Handle (LH) (Pewter) |
| 16 | WPL 8559713 |
| 16 | WPL 8559712 |
| 16 | WPL 8559719 |
| 16 | WPL 8559718 |
| 17 | WPL 8559724 |
| 17 | WPL 8559722 |
| 18 | Clip, Trim Panel |
| 19 | WPL 8558683 |
| 19 | WPL 8558685 |
| 20 | WPL 8558687 |
| 20 | WPL 8558692 |
| 21 | WPL 8558689 |
| 21 | WPL 8558693 |
