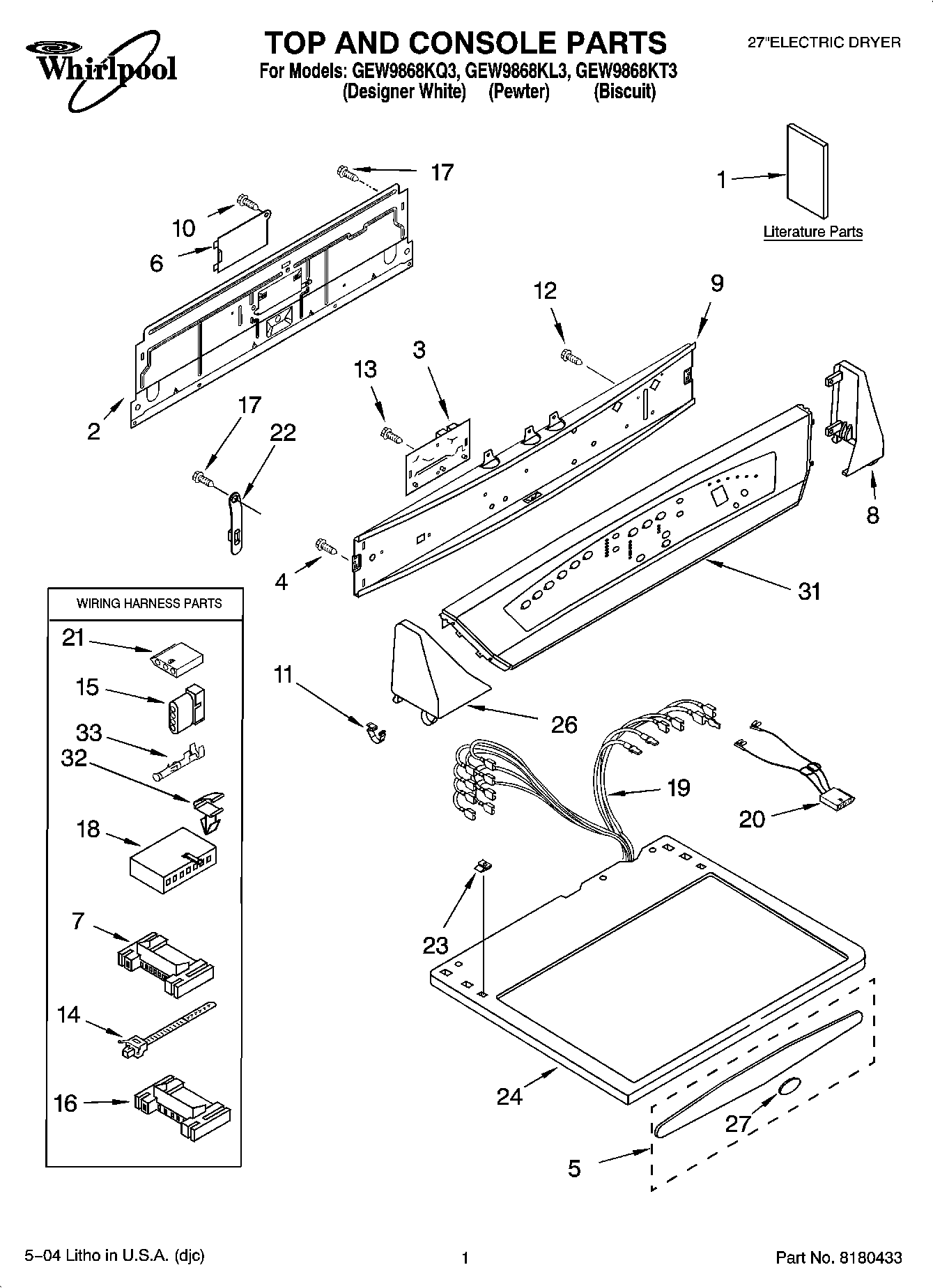

GEW9868KL3 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Guide, Use & Care
1	Instructions Installation
1	Tech Sheet
1	WPL 677818
2	Panel, Rear Console
3	Control Board
4	WP304231 Whirlpool Dishwasher Screw
5	Medallion Assembly (Pewter)
5	Medallion Assembly (Sage)
6	WPW10119283 Whirlpool Terminal Cover
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Pewter)
8	Cap, End (R.H.) (Biscuit)
9	Bracket, Control
10	WP90767 Whirlpool Screw
11	WP8312709 Whirlpool Endcap Clip
12	3400073 Whirlpool Screw
13	3400826 Whirlpool Screw
14	WP3391018 Whirlpool Wire Tie
15	353424 Whirlpool Connector
16	2203186 Whirlpool Connector
17	WP693995 Whirlpool Screw
18	3936150 Whirlpool Connector
19	Harness, Electric
20	WP3406653 Whirlpool Wire Harness
21	3936144 Whirlpool Connector
22	WP8568314 Whirlpool Strap
23	WP357213 Whirlpool Hinge Stopper
24	Top (Biscuit)
24	Top (Pewter)
24	Top (White)
26	Cap, End (L.H.) (Biscuit)
26	Cap, End (L.H.) (Pewter)
26	Cap, End (L.H.) (White)
27	Medallion
31	Panel, Console (Includes Keyswitch) (Pewter)
31	Panel, Console (Includes Keyswitch) (Pearl)
32	WP3394427 Whirlpool Clip
33	WP94614 Whirlpool Terminal
