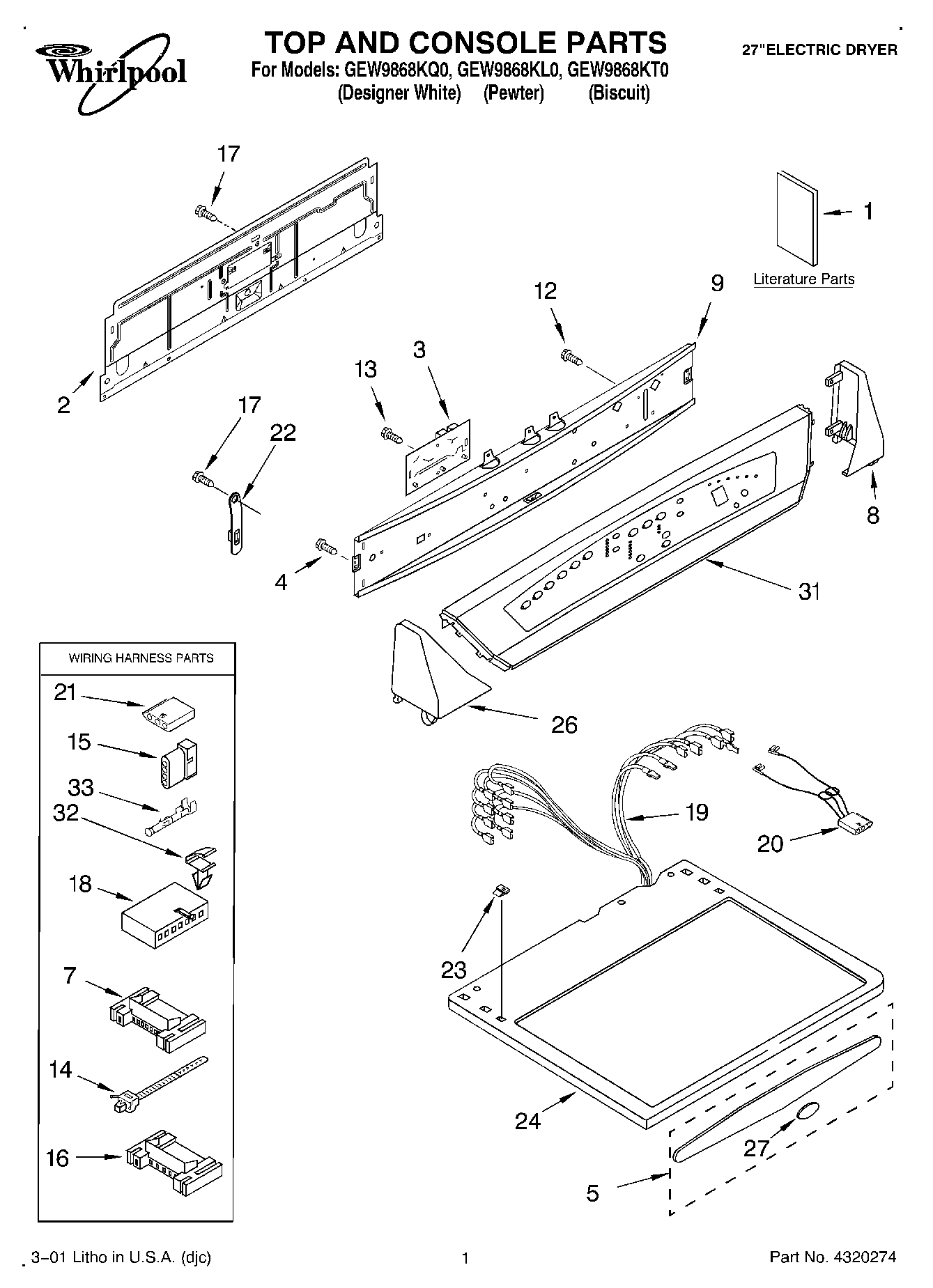

| Dryer |
| 1 | Literature Parts (Guide, Use & Care) |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Label, Wiring Diagram) |
| 1 | Literature Parts (Instructions Installation) |
| 2 | Panel, Rear Console |
| 3 | Control Board |
| 4 | WP304231 Whirlpool Dishwasher Screw |
| 5 | Medallion Assembly (Sage) |
| 5 | Medallion Assembly (Pewter) |
| 7 | 3395683 Whirlpool Connector |
| 8 | Cap, End (R.H.) (White) |
| 8 | Cap, End (R.H.) (Pewter) |
| 8 | Cap, End (R.H.) (Biscuit) |
| 9 | Bracket, Control |
| 12 | 3400073 Whirlpool Screw |
| 13 | 3400826 Whirlpool Screw |
| 14 | WP3391018 Whirlpool Wire Tie |
| 15 | 353424 Whirlpool Connector |
| 16 | 2203186 Whirlpool Connector |
| 17 | WP693995 Whirlpool Screw |
| 18 | 3936150 Whirlpool Connector |
| 19 | Harness, Electric |
| 20 | WP3406653 Whirlpool Wire Harness |
| 21 | 3936144 Whirlpool Connector |
| 22 | WP8568314 Whirlpool Strap |
| 23 | WP357213 Whirlpool Hinge Stopper |
| 24 | Top (Pewter) |
| 24 | Top (Biscuit) |
| 24 | Top (White) |
| 26 | Cap, End (L.H.) (Biscuit) |
| 26 | Cap, End (L.H.) (Pewter) |
| 26 | Cap, End (L.H.) (White) |
| 27 | Medallion |
| 31 | Panel, Console (Includes Keyswitch) (Pewter) |
| 31 | Panel, Console (Includes Keyswitch) (Pearl) |
| 32 | WP3394427 Whirlpool Clip |
| 33 | WP94614 Whirlpool Terminal |
