GEW9878JQ0 01 – SECTION
Written by
in

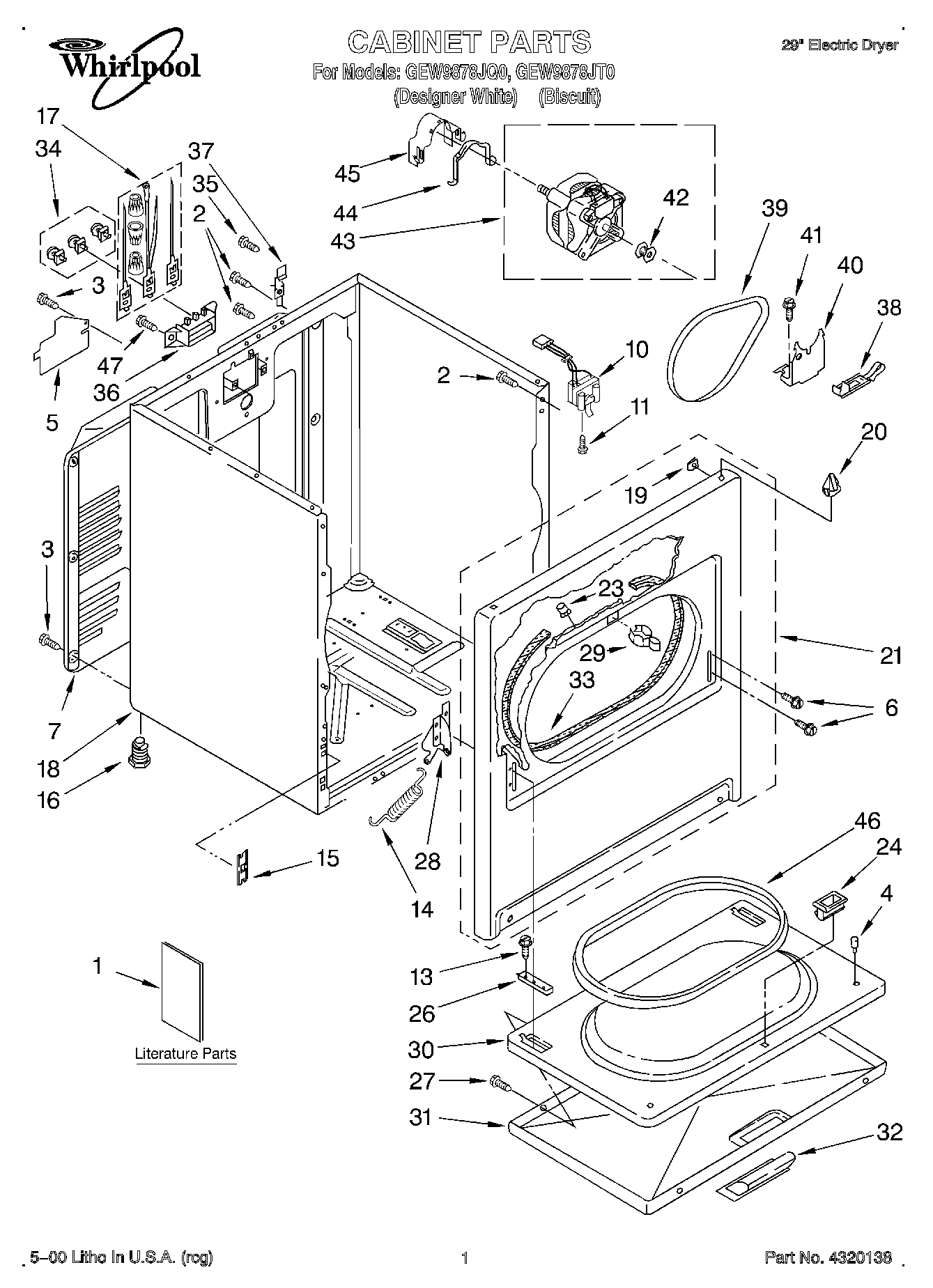

GEW9878JQ0 01 – SECTION
Products
Position
Product
Dryer
1
WPL LIT3397618
1
Literature Parts (Wiring Diagram)
1
Literature Parts (Use & Care Guide)
1
Literature Parts (Tech Sheet)
2
SCREW
3
WP693995 Whirlpool Screw
4
238614 Whirlpool Bumper Hinge
5
W11539855 Whirlpool Refrigerator Pump
6
Screw, 10-32 x 1/2
7
280043 Whirlpool Rear Panel
10
WP3406107 Whirlpool Dryer Door Switch
11
WP3395530 Whirlpool Screw
13
WP308685 Whirlpool Microwave Screw
14
WPW10041960 Whirlpool Door Spring
15
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16
49621 Whirlpool Leveling Feet
17
279318 Whirlpool Terminal
18
Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
18
Cabinet (Biscuit (Includes Illus. Nos. 5,7,16,36, & 40))
19
WP98234 Whirlpool Nut
20
WP18776 Whirlpool Lock
21
279443 Whirlpool Primary Panel
21
279891 Whirlpool Panel
23
279220 Whirlpool Clip
24
WP3389441 Whirlpool Door Catch
26
W11252547 Whirlpool Clip Assembly
27
WP694091 Whirlpool Screw
28
WP8066057 Whirlpool Door Hinge
28
WP8066056 Whirlpool Door Hinge
29
279570 Whirlpool Dryer Door Latch Kit
30
WP695737 Whirlpool Door
31
Door, Front (Biscuit)
31
WP3393549 Whirlpool Door Assembly
32
3977242 Whirlpool Handle
32
WP348721 Whirlpool Handle
33
W11035878 Whirlpool Bearing and Seal
34
279393 Whirlpool Terminal Block Screw and Nut Kit
35
W10850756 Whirlpool Screw
36
WP3397659 Whirlpool Terminal Block
37
WP8066217 Whirlpool Hinge
38
WP691366 Whirlpool Dryer Idler Pulley Assembly
39
341241 Whirlpool Dryer Drum Belt
40
WP348780 Whirlpool Base
41
3400500 Whirlpool Screw
42
WP8066184 Whirlpool Dryer Motor Pulley
43
279827 Whirlpool Dryer Drive Motor
44
WP660658 Whirlpool Clamp
45
WP3404162 Whirlpool Clamp
46
W10906683 Whirlpool Door Seal
←
