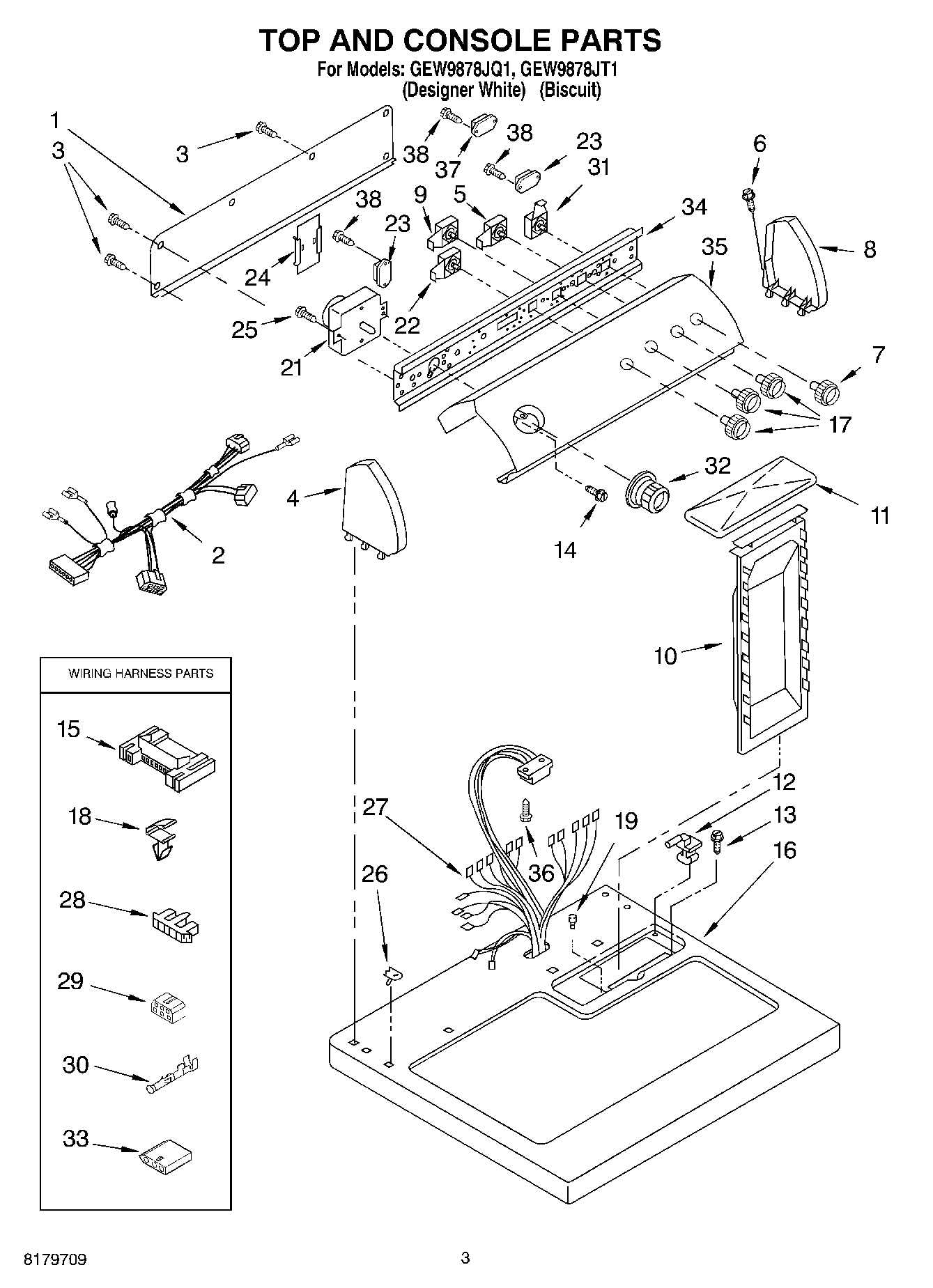

GEW9878JQ1 02 – SECTION

GEW9878JQ1 02 – SECTION

Written by

in

GEW9878JQ1 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Harness, Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53405151 Whirlpool Switch
6WP388326 Whirlpool Screw
7WPL 8271349
73957804 Whirlpool Knob
8WPL 8271362
8W10820038 Whirlpool Endcap
93405152 Whirlpool Switch Assembly
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17WP3957799 Whirlpool Knob
173957797 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
21WP8299771 Whirlpool Timer
228299970 Whirlpool Switch Assembly
23WP3405281 Whirlpool Relay
24Control Board
25WPW10139210 Whirlpool Screw
26WP357213 Whirlpool Hinge Stopper
27Harness, Wiring
28Connector, Timer
29Block, Disconnect
30WP94614 Whirlpool Terminal
31WP3977456 Whirlpool Start Switch
32WP3957754 Whirlpool Knob Assembly
32WP3957755 Whirlpool Knob
333936144 Whirlpool Connector
34Bracket, Control
35Panel, Control
35WPL 3977833
36SCREW
37WP8566493 Whirlpool Relay
38350938 Whirlpool Spray Gun
383406839 Whirlpool Drying Rack
3872017 Whirlpool Appliance Touch-Up Paint White
38350930 Whirlpool White Spray Paint
38WP3388228 Whirlpool Screw
38799344 Whirlpool Refrigerator Paint
384392899 Whirlpool Biscuit Touch-Up Paint
384392065 Whirlpool Dryer Maintenance Kit
38PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
384392901 Whirlpool Biscuit Spray Paint
