GEW9878LG0 02 – SECTION

GEW9878LG0 02 – SECTION

Written by

in

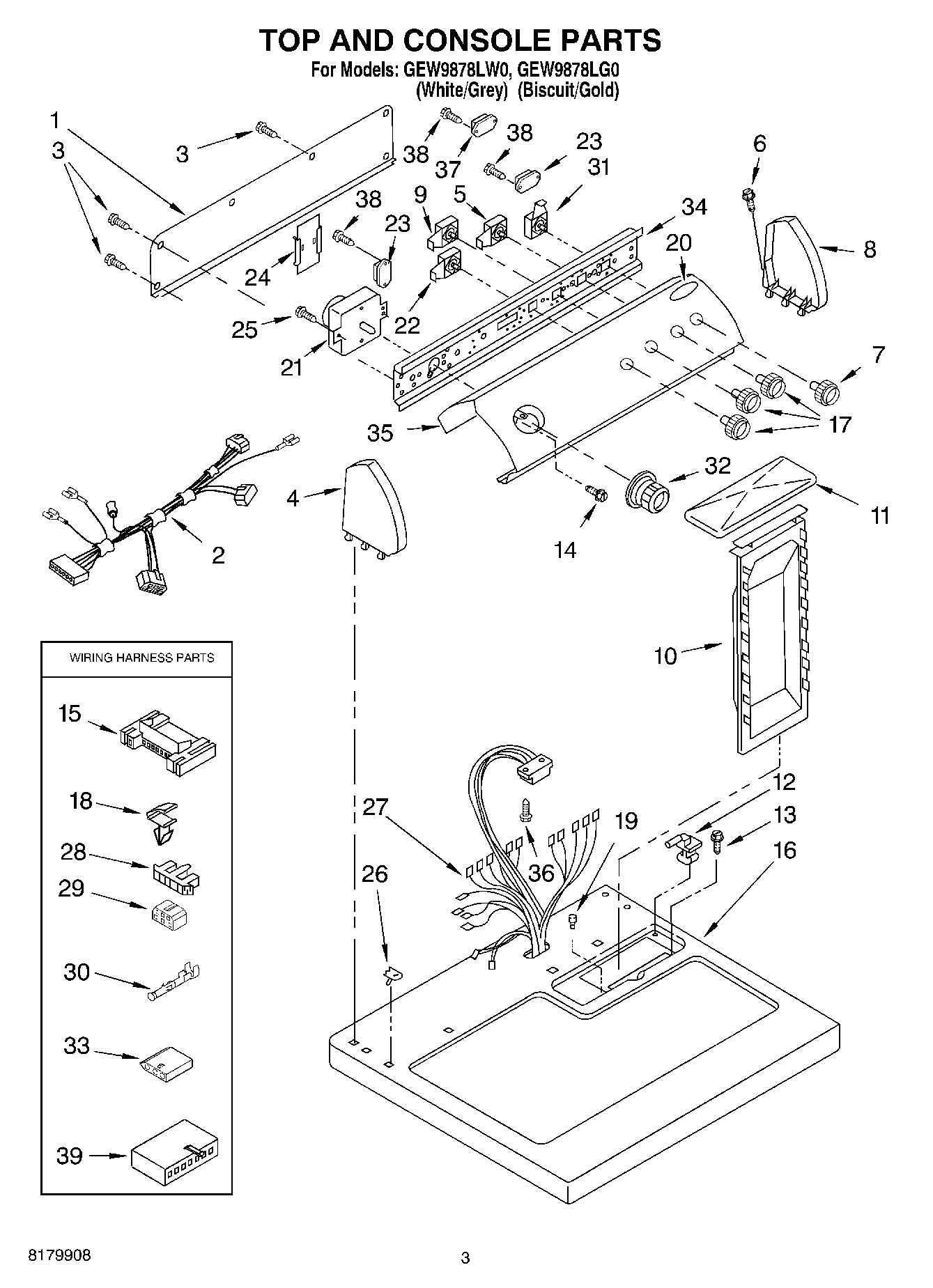

GEW9878LG0 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Harness, Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53405151 Whirlpool Switch
6WP388326 Whirlpool Screw
7Knob, Push-To-Start (LGR5636LW0)
7Knob, Push-To-Start (LGR5636LG0)
8WPL 8271362
8W10820038 Whirlpool Endcap
93405152 Whirlpool Switch Assembly
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17KNOB
17WPL 8316545
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
20Medallion
21WP8299771 Whirlpool Timer
228299970 Whirlpool Switch Assembly
23WP3405281 Whirlpool Relay
24Control Board
25WPW10139210 Whirlpool Screw
26WP357213 Whirlpool Hinge Stopper
27Harness, Wiring
28Connector, Timer
29Block, Disconnect
30WP94614 Whirlpool Terminal
31WP3977456 Whirlpool Start Switch
32WPL 8316549
32WP8557455 Whirlpool Knob Timer
333936144 Whirlpool Connector
34Bracket, Control
35WPL 8532634
35WPL 8532633
36SCREW
37WP8566493 Whirlpool Relay
38WP3388228 Whirlpool Screw
393936150 Whirlpool Connector
