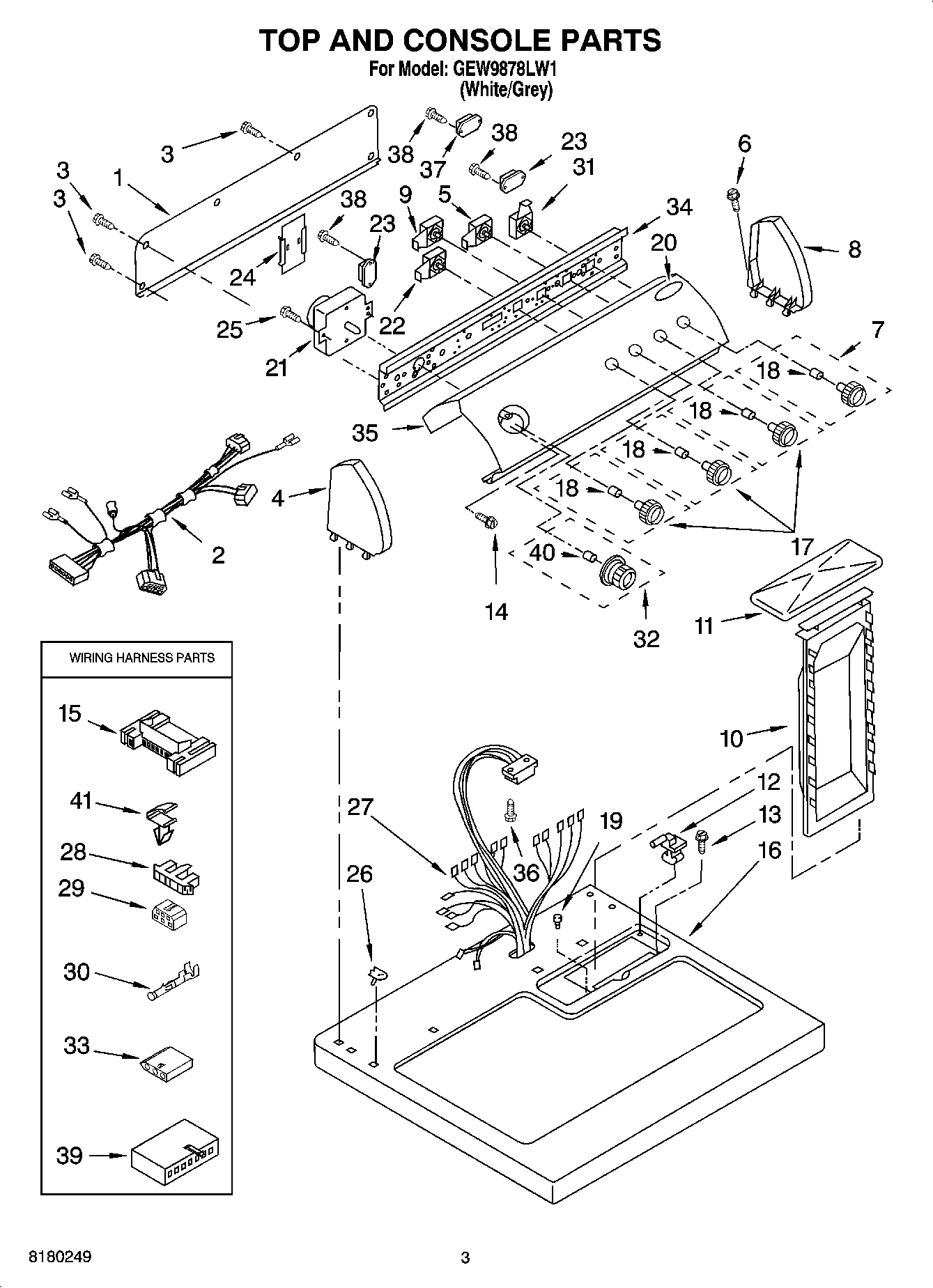

GEW9878LW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Harness, Console
3	WP693995 Whirlpool Screw
5	3405151 Whirlpool Switch
6	WP388326 Whirlpool Screw
7	Knob, Push-To-Start
8	W10820038 Whirlpool Endcap
9	3405152 Whirlpool Switch Assembly
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	KNOB
18	WP8536939 Whirlpool Spring Clip
19	Bumper, Lint Lid
20	Medallion
21	WP8299771 Whirlpool Timer
22	8299970 Whirlpool Switch Assembly
23	WP3405281 Whirlpool Relay
24	Control Board
25	WPW10139210 Whirlpool Screw
26	WP357213 Whirlpool Hinge Stopper
27	Harness, Wiring
28	Connector, Timer
29	Block, Disconnect
30	WP94614 Whirlpool Terminal
31	WP3977456 Whirlpool Start Switch
32	WP8557455 Whirlpool Knob Timer
33	3936144 Whirlpool Connector
34	Bracket, Control
35	WPL 8532633
36	SCREW
37	WP8566493 Whirlpool Relay
38	WP3388228 Whirlpool Screw
39	3936150 Whirlpool Connector
40	WP688805 Whirlpool Spring Clip
41	WP3394427 Whirlpool Clip
