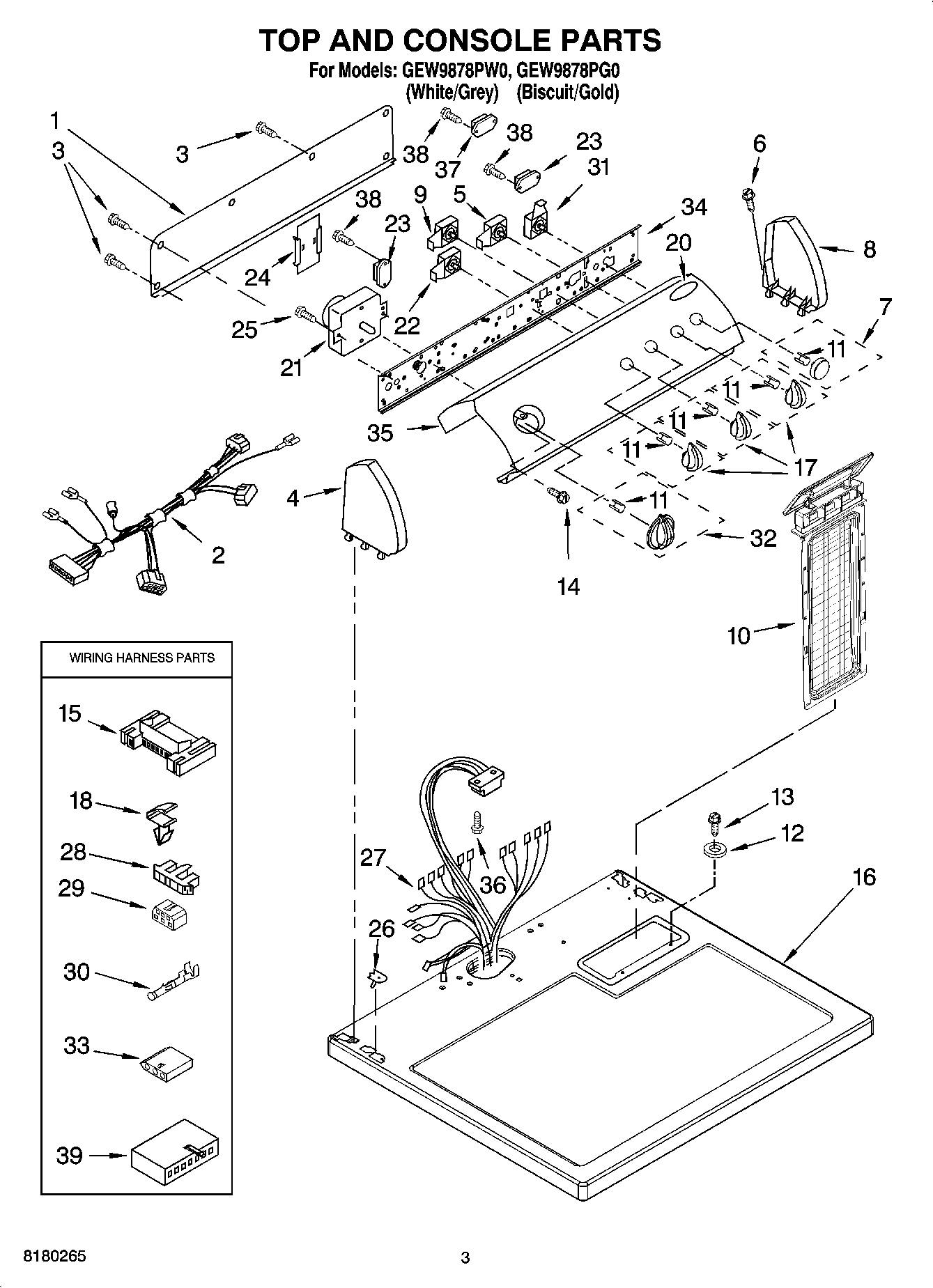

GEW9878PW0 02 – TOP AND CONSOLE PARTS

GEW9878PW0 02 – TOP AND CONSOLE PARTS

Written by

in

GEW9878PW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Harness, Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53405151 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP8544941 Whirlpool Knob
8WPL 8271362
8W10820038 Whirlpool Endcap
93405152 Whirlpool Switch Assembly
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12Washer
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top (White)
17WPL 8544938
17WPL 8544937
18WP3394427 Whirlpool Clip
20WPL 8533990
21WP8299771 Whirlpool Timer
228299970 Whirlpool Switch Assembly
23WP3405281 Whirlpool Relay
24Control Board
25WPW10139210 Whirlpool Screw
26WP357213 Whirlpool Hinge Stopper
27Harness, Wiring
28Connector, Timer
29Block, Disconnect
30WP94614 Whirlpool Terminal
31WP3977456 Whirlpool Start Switch
32WPL 8544958
32WPL 8544957
333936144 Whirlpool Connector
34Bracket, Control
35WPL 8545982
35WPL 8545984
36SCREW
37WP8566493 Whirlpool Relay
38WP3388228 Whirlpool Screw
393936150 Whirlpool Connector
