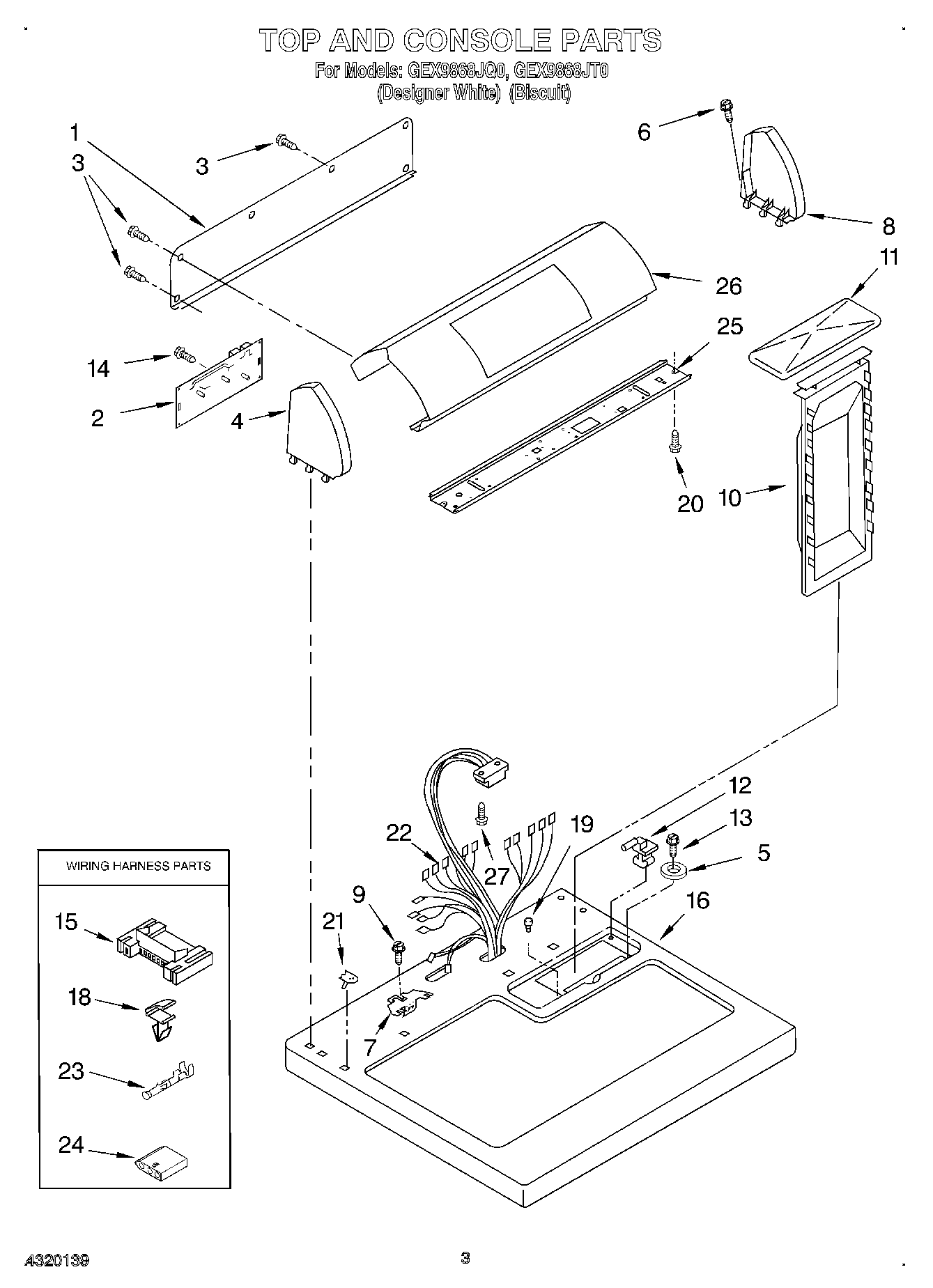

GEX9868JQ0 02 – TOP AND CONSOLE

GEX9868JQ0 02 – TOP AND CONSOLE

Written by

in

GEX9868JQ0 02 – TOP AND CONSOLE

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Control Board
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
5Washer
6WP388326 Whirlpool Screw
7Clip, Static Ground
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP355214 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP488163 Whirlpool Refrigerator Screw
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
20WPW10139210 Whirlpool Screw
21WP357213 Whirlpool Hinge Stopper
22Harness, Wiring
23WP94614 Whirlpool Terminal
243936144 Whirlpool Connector
25Bracket, Control
26Panel, Control (Biscuit)
26Panel, Control
27PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
274392901 Whirlpool Biscuit Spray Paint
274392899 Whirlpool Biscuit Touch-Up Paint
27SCREW
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27350938 Whirlpool Spray Gun
27350930 Whirlpool White Spray Paint
