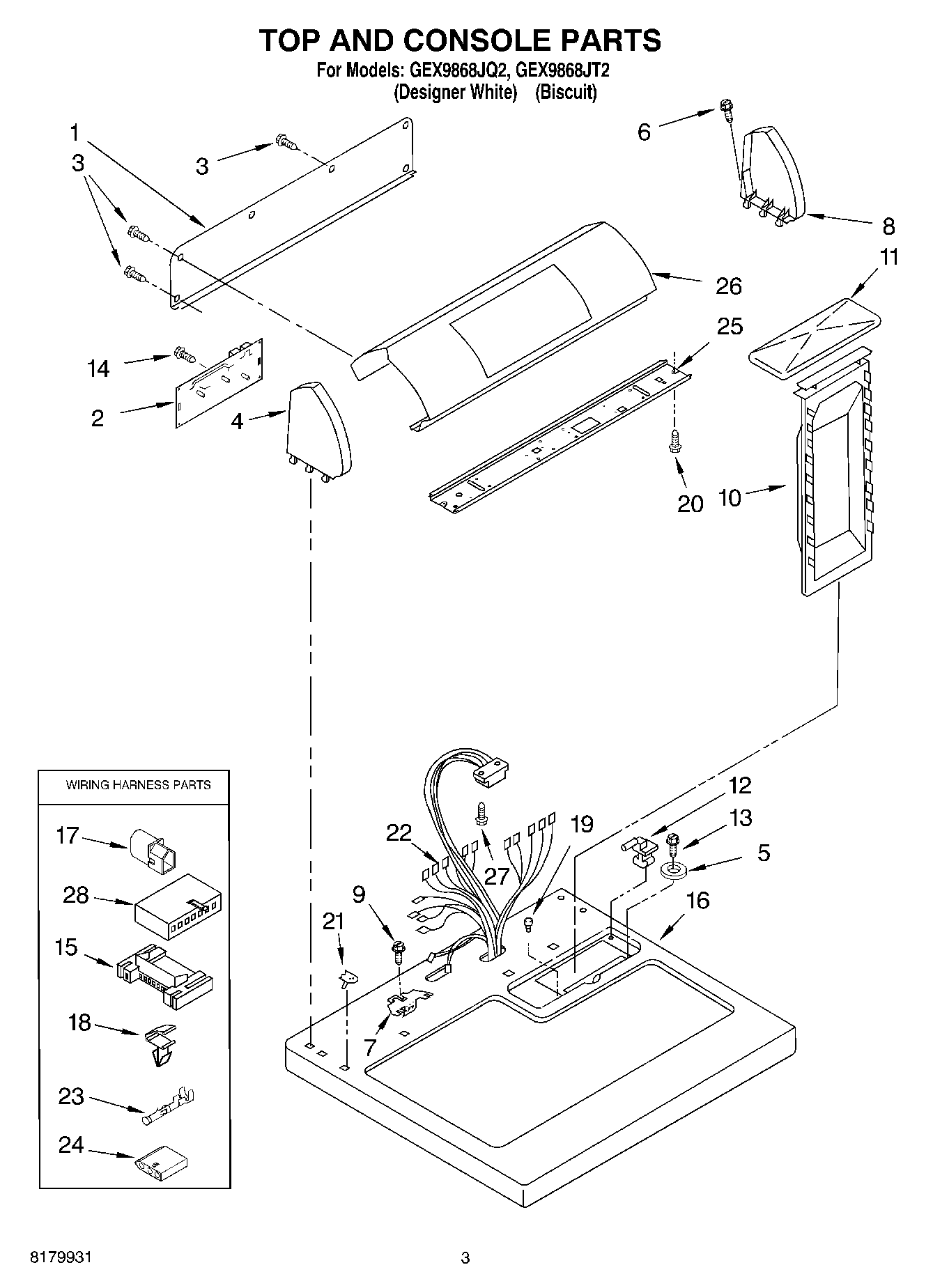

GEX9868JQ2 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Control Board
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
5Washer
6WP388326 Whirlpool Screw
7Clip, Static Ground
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP33001882 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400826 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17353424 Whirlpool Connector
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
20WPW10139210 Whirlpool Screw
21WP357213 Whirlpool Hinge Stopper
22Harness, Wiring
23WP94614 Whirlpool Terminal
243936144 Whirlpool Connector
25Bracket, Control
26Panel, Control (Biscuit)
26Panel, Control
27SCREW
284392901 Whirlpool Biscuit Spray Paint
284392065 Whirlpool Dryer Maintenance Kit
28350938 Whirlpool Spray Gun
28799344 Whirlpool Refrigerator Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28350930 Whirlpool White Spray Paint
28W11224254 Whirlpool Test Kit
284392899 Whirlpool Biscuit Touch-Up Paint
28PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
283936150 Whirlpool Connector
