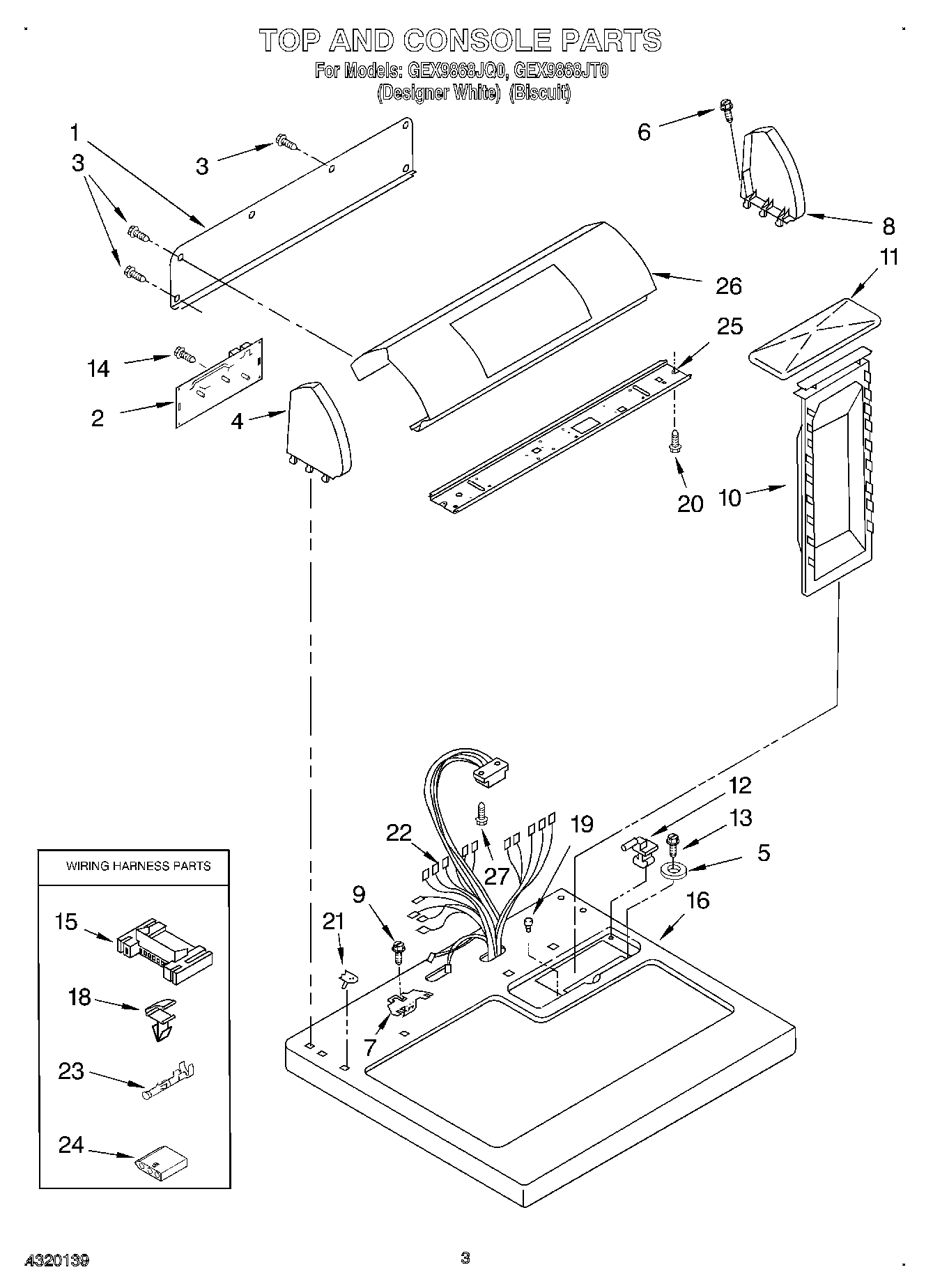

GEX9868JT0 02 – TOP AND CONSOLE

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Control Board
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
5	Washer
6	WP388326 Whirlpool Screw
7	Clip, Static Ground
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	WP355214 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Biscuit)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP488163 Whirlpool Refrigerator Screw
15	3395683 Whirlpool Connector
16	Top
16	Top (Biscuit)
18	WP3394427 Whirlpool Clip
19	Bumper, Lint Lid
20	WPW10139210 Whirlpool Screw
21	WP357213 Whirlpool Hinge Stopper
22	Harness, Wiring
23	WP94614 Whirlpool Terminal
24	3936144 Whirlpool Connector
25	Bracket, Control
26	Panel, Control (Biscuit)
26	Panel, Control
27	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
27	4392901 Whirlpool Biscuit Spray Paint
27	4392899 Whirlpool Biscuit Touch-Up Paint
27	SCREW
27	799344 Whirlpool Refrigerator Paint
27	72017 Whirlpool Appliance Touch-Up Paint White
27	350938 Whirlpool Spray Gun
27	350930 Whirlpool White Spray Paint
